Panduit RAMS-S3-M | Right Angle Cable Tie Mount
Regular price
$697.76
Unit price
Brand: Panduit
|
SKU:
10083499
Regular price
$697.76
Unit price
Description
Description

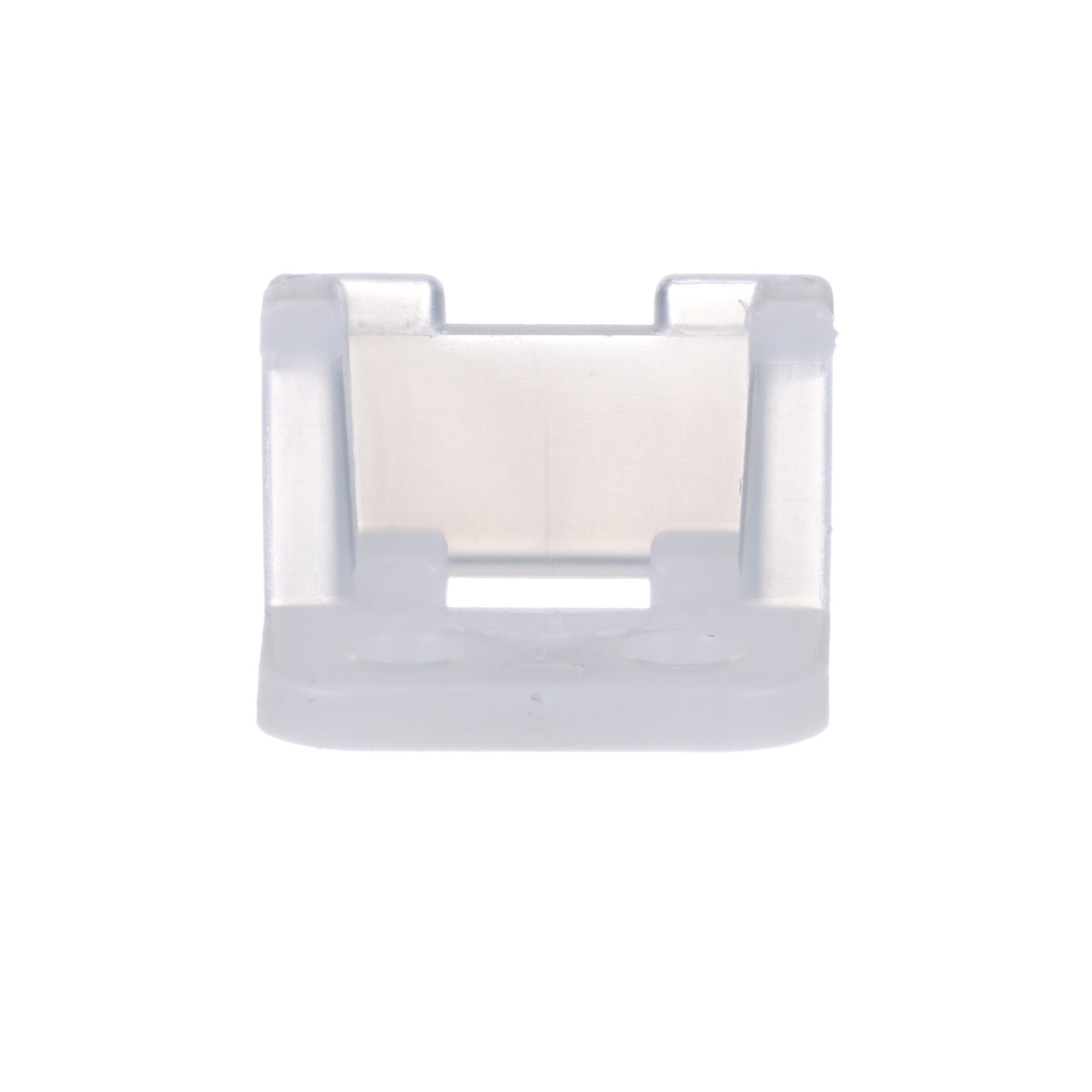

Panduit RAMS-S3-M | Right Angle Cable Tie Mount
Panduit Right Angle Cable Tie Mount, Threaded Mounting, 0.56 in Base Length, 0.39 in Base Width, Nylon 6.6, Natural
Keep your cables safe and organized. The right angle cable tie mount is perfect for panels accessible from one side and require no adhesives or extra hardware. Ideal for indoor environments.
Panduit - RAMS-S3-M - Features
- 100% performance tested assures that patch cords and pigtails are standard compliant
- Hold cable bundle away from the sharp edges of bulkhead or cabinet holes
- Can also be used to mount cable bundle adjacent to any surface
- #3 (M2.5) screw
Specifications
Specifications
Panduit - RAMS-S3-M - Specifications
| Product Type | Cable Tie Mount |
|---|---|
| Application | Right Angle Mounts Holds Cable Bundles Away from the Sharp Edges of Bulkheads or Cabinet Holes. Can Also be used to Mount Cable Bundles Adjacent to Any Surface |
| Color | Natural |
| Environment | Indoor |
| Material | Nylon 6.6 |
| Maximum Operating Temperature (°C) | 85 |
| Maximum Operating Temperature (°F) | 185 |
| Minimum Operating Temperature (°C) | -60 |
| Minimum Operating Temperature (°F) | -76 |
| Mount Method | Screw-On |
| Mounting Hole Thread Size | #3 |
| Overall Length (In.) | 0.56 |
| Overall Length (mm) | 14.2 |
| Overall Width (In.) | 0.39 |
| Overall Width (mm) | 50.3 |
| Overall Height (In.) | 1 |
| Overall Height (mm) | 25.4 |
| Standards Met | CE Compliant,UL Recognized: E136577, RoHS Compliant |
| For Use With | Miniature, Intermediate, Standard Cross-Section Ties |
| UPC | 07498358411 |
Panduit - RAMS-S3-M - Package Information
| UPC | 07498358411 |
|---|---|
| Standard Packaging Quantity | 1000 |
| Standard Packaging Volume (cf) | 0.1497 |
| Standard Ctn. Quantity | 5000 |
| Standard Ctn. Volume (cf) | 0.7483 |
Panduit - RAMS-S3-M - Videos
| Panduit RAMS-S3-M Videos | Click to View |
|---|
