Brand: Panduit
|
SKU:
PAN-RER1.25-S6-X
Panduit RER1.25-S6-X | Quick-Build RER1.25-S6-X Harness Board Accessory, Blk, PA6.6, 1.64x1.18", PK10
Regular price
$116.32
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit RER1.25-S6-X | Quick-Build RER1.25-S6-X Harness Board Acces...
Regular price
$116.32
Unit price
Brand: Panduit
|
SKU:
PAN-RER1.25-S6-X
Regular price
$116.32
Unit price
Shipping calculated at checkout.
Description
Description
Panduit RER1.25-S6-X | Quick-Build RER1.25-S6-X Harness Board Accessory, Blk, PA6.6, 1.64x1.18", PK10

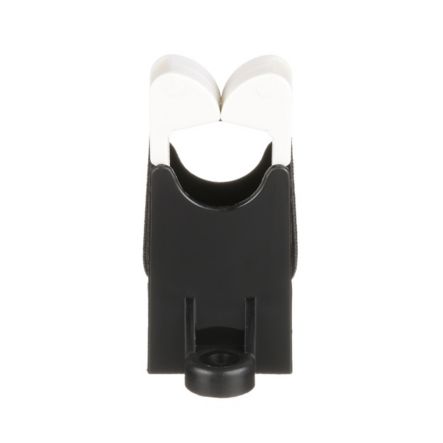

Panduit RER1.25-S6-X Harness Elastic Retainers with replaceable elastic band are part of the Quick-Build modular and reusable harness board system. Cable bundles are formed as individual wire are inserted into retainers and once bundles are formed, they can be easily removed. Suitable for 1.25" maximum bundle capacity and come in packages of 10.
Specifications
Specifications
Panduit - RER1.25-S6-X - Product Categories
- Wire Routing, Management & Protection
- Harness Board Accessories
Panduit - RER1.25-S6-X - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | RER1.25-S6-X |
| Item Description | Quick-Build RER1.25-S6-X Harness Board Accessory, Blk, PA6.6, 1.64x1.18", PK10 |
| Product Type | Harness Board Accessory |
| Sub Brand | Quick-Build |
| Environment | Indoor |
| For Use With | QB Components - QB-BASE175-Q, QB-S6-500-C and QB-RERBASE-X |
| Material | Nylon 6.6 |
| Maximum Bundle Diameter (In.) | 1.25 |
| Maximum Bundle Diameter (mm) | 31.8 |
| Mount Method | Two #6 (M3) Screws |
| Overall Height (In.) | 2.86 |
| Overall Height (mm) | 72.6 |
| Overall Length (In.) | 1.64 |
| Overall Length (mm) | 41.7 |
| Overall Width (In.) | 1.18 |
| Overall Width (mm) | 30 |
| Screw Size | #6 (M3) |
| Standards Met | RoHS Directive is Not Applicable |
| Application | Suitable for 1.25" Maximum Bundle Capacity |
| Part Features | Cable bundles are formed as individual wires are inserted, Complete bundles can be easily removed, The elastic band is replaceable |
Panduit - RER1.25-S6-X - Package Information
| UPC | 07498361081 |
|---|---|
| Standard Package Quantity | 10 |
| Standard Package Volume (cf) | 0.0539 |
| Standard Ctn. Quantity | 50 |
| Standard Ctn. Volume (cf) | 0.2695 |
Panduit - RER1.25-S6-X - Videos
| Video 1 | Click to View |
|---|
