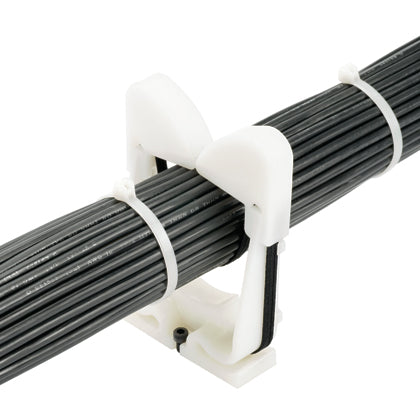

Panduit RER2.0-S6-X | Quick-Build Elastic Bundle Retainer
Description
Description
Our elastic bundle retainer with replacement straps offers easy wire insertion and removal. Suitable for various bundle sizes.
Harness elastic Retainer, 2.0" (50.8mm) Bundle, #6 Screw (M3).
Panduit harness board accessories allow an installer to quickly configure a specific arrangement of wires, to aid in required wire bundling and termination. Panduit comprehensive line of harness board accessories can significantly reduce the labor input required for field installation of wires and cables and simplify harness board operations. These products hold wire bundles at a uniform height from a harness board to ease manual or automatic cable tie installation. These accessories help maintain end product consistency, reduce costly rework and maximize workplace safety.
Panduit Harness Elastic Retainer, Replacement, 2 in Cable, Threaded Mounting, For Use With: QB-BASE175-Q Universal Mounting Base and QB-S6-500-C QB Quick Build Screw, Specifications: Black/White, Nylon 6.6, Untreated, 2 in Dia x 1.31 in L x 1.13 in W x 3.94 in H
Panduit - RER2.0-S6-X - Features
- Cable bundles are formed as individual wires are inserted
- Complete bundles can be easily removed
- Large selection of board mounted accessories
- Uniform standoff height
- Mounts designed to work with harness board accessories
- Snap-in, snap-out functionality
- Spring wire breakout and wire end holders
Specifications
Specifications
Panduit - RER2.0-S6-X - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | RER2.0-S6-X |
| Type | Cables Ties And Accessories |
| UNSPSC Code | 39121703 |
| Product Type | Elastic Bundle Retainer |
| Sub Brand | Quick-Build |
| Color | White |
| Environment | Indoor |
| For Use With | QB Components - QB-BASE175-Q, QB-S6-500-C and QB-RERBASE-X |
| Material | Nylon 6.6 |
| Maximum Bundle Diameter (In.) | 2 |
| Maximum Bundle Diameter (mm) | 50.8 |
| Mount Method | Screw-On |
| Overall Length (In.) | 1.31 |
| Overall Length (mm) | 33.3 |
| Overall Width (In.) | 2.81 |
| Overall Width (mm) | 71.4 |
| Overall Height (In.) | 3.94 |
| Overall Height (mm) | 100.2 |
| Screw Size | #6 |
| Application | Suitable for 2.0" Maximum Bundle Capacity |
| Part Features | Cable bundles are formed as individual wires are inserted, Complete bundles can be easily removed, The elastic band is replaceable |
| UPC | 07498328339 |
Panduit - RER2.0-S6-X - Videos
| Panduit RER2.0-S6-X Video 1 | Click to View |
|---|
