Panduit RFG5DY | COOL BOOT RAISED FLOOR GROMMET
Regular price
$144.95
Unit price
Description
Description

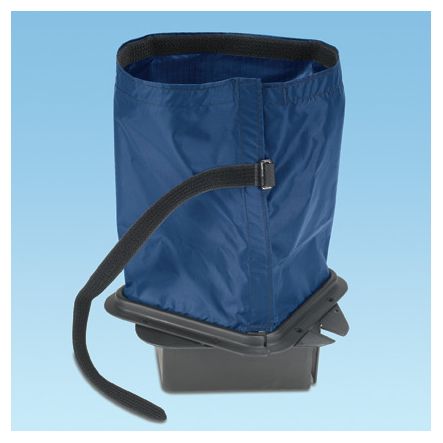

Panduit RFG5DY | COOL BOOT RAISED FLOOR GROMMET
The Cool Boot Raised Floor Air Sealing Grommet is designed for hot aisle/cold aisle environments in a data center where cables pass through a cutout in the raised floor. The grommet reduces bypass airflow improving the cooling of network equipment and prevents debris from falling below the raised floor. The raised floor air sealing grommet has a diameter of 6.8 inches (172.7 mm).
Panduit - RFG5DY - Features
- Overall size of 6.8"; (172.7mm) diameter allows for 4.7"; (119.4mm) diameter capacity.
- Minimizes bypass of air through cutouts in the raised floor
- Available for new and retrofit applications
- Manufactured from flame retardant material
- Available in a range of sizes
- Self-tapping #10 screws (included) allow a secure fastening method to top of raised floor tile that also provides a pathway to ground
Specifications
Specifications
Panduit - RFG5DY - Product Categories
- Cabinets, Thermal Management, Racks and Enclosures
- Air Sealing Accessories
Panduit - RFG5DY - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | RFG5DY |
| Item Description | COOL BOOT RAISED FLOOR GROMMET |
| Product Type | Raised Floor Grommet |
| Material | Polycarbonate/Fabric |
| Overall Width (In.) | 4.5 |
| Overall Width (mm) | 119.4 |
| Overall Depth (In.) | 0.6 |
| Overall Depth (mm) | 15.2 |
| Overall Height (mm) | 119.4 |
| Overall Height (In.) | 4.7 |
| Maximum Operating Temperature (°C) | 60 |
| Maximum Operating Temperature (°F) | 140 |
| Minimum Operating Temperature (°C) | -40 |
| Minimum Operating Temperature (°F) | -40 |
| Color | Navy Blue |
| Sub Brand | Cool Boot |
| Standards Met | RoHS Compliant per European Directive 2002/95/EC on the Restriction of Hazardous Substances; UL94 Standard, V-0; FAR 25.853 |
| Accessory Type | Raised Floor Air Sealing Grommet |
Panduit - RFG5DY - Package Information
| UPC | 07498310825 |
|---|---|
| Standard Package Quantity | 1 |
| Standard Package Volume (cf) | 0.3411 |
| Standard. Ctn. Quantity | 10 |
| Standard. Ctn. Volume (cf) | 3.4111 |
