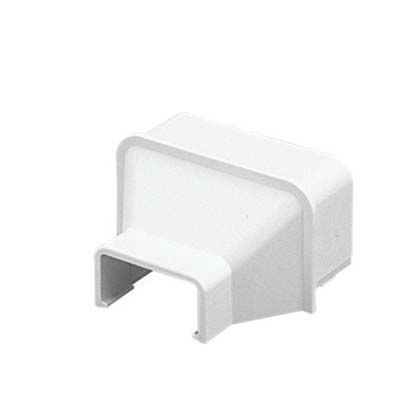

Panduit RFX103EI-X | Surface Raceway, LD10 to LD3 Reducer, Electric Ivory
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit RFX103EI-X | Surface Raceway, LD10 to LD3 Reducer, Electric...
Description
Description
Our reducer fitting allows for a seamless transition between different raceway sizes, making it ideal for routing power and data cables along walls. This ensures a efficient cable management setup.
Reducer fitting for use with LD3, LDPH3, LD10 and LDPH10 raceway. For in-line terminations, use with CFX10, Electric Ivory, ABS, Length 1.25 in.
Panduit Reducer Fitting, For Use With: LD3, LDPH3, LD10 and LDPH10 Raceway, 1.25 in L x 1.56 in W x 0.9 in H, 1 in Bend Radius, Snap-On Mount, ABS, Electric Ivory
Panduit - RFX103EI-X - Features
- For in line terminations, use with CFX10
- One piece hinged design
- Adhesive backing
- Non metallic construction
- Distinct colors and full selection of fittings and surface mount boxes
- This raceway is a perfect solution for schools, hospitals, offices, homes or anywhere a small, secure, low profile raceway is needed
- One inch bend radius fittings are designed to maintain the TIA/EIA-568-B and 569-B required minimum bend radius for high performance copper and fiber optic cabling systems
Specifications
Specifications
Panduit - RFX103EI-X - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | RFX103EI-X |
| Color | Ivory |
| Components | Fittings |
| Type | Non-Metallic |
| UNSPSC Code | 39131709 |
| Product Type | Power Rated Fitting |
| Sub Brand | Pan-Way |
| Color | Electric Ivory |
| Fitting Type | Reducer |
| For Use With | LD3, LDPH3, LD10, LDPH10 |
| Material | PVC |
| Material Properties | Rigid |
| Mount Method | Snap-On |
| Raceway Type | Power Rated |
| Standards Met | Ul94V-0, Ft4, Meets TIA/EIA Standards, UL5A Listed, UL Compliant. |
| Overall Length (In.) | 1.25 |
| Overall Length (mm) | 31.7 |
| Overall Width (In.) | 1.56 |
| Overall Width (mm) | 39.6 |
| Overall Height (In.) | 0.9 |
| Overall Height (mm) | 22.9 |
| Application | Pan-Way LD2P10 Profile Raceway is a One-Piece Multi-Channel Channel Raceway Which Provides Solutions for Routing Both Power and Data Cabling Along Perimeter Walls. Ld2P10 Profile Raceway is Available With Multi-Channel Fittings. |
| Part Features | 1 bend radius control fittings, One-piece hinged design, Adhesive backing, Available in different sizes & lengths, Non-metallic construction, Distinct colors and Full selection of fittings and surface mount boxes. |
| UPC | 07498359729 |
Panduit - RFX103EI-X - Environmental Information
| RoHS Status | ROHS3 Compliant |
|---|---|
| Moisture Sensitivity Level (MSL) | Not Applicable |
| ECCN | EAR99 |
| HTSUS | 8536.90.8510 |
Panduit - RFX103EI-X - Videos
| Panduit RFX103EI-X Video 1 | Click to View |
|---|
