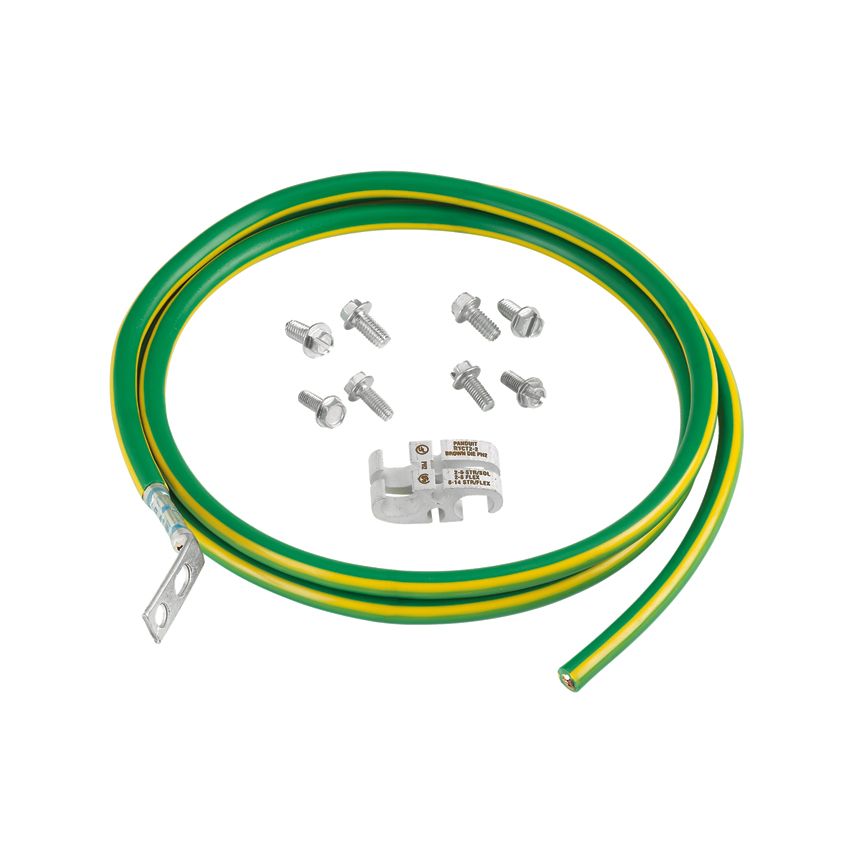

Panduit RGCBNJ660P22 | Structured Ground Equipment Bonding Jumper Kit, Green/Yellow, 6 AWG
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit RGCBNJ660P22 | Structured Ground Equipment Bonding Jumper K...
Description
Description
Ensure reliable grounding with our bonding jumper kit. Connects racks or cabinets to subfloor or overhead system. UL Listed, CSA Certified for 600V. Green/yellow for easy identification.
#6 AWG (16mm) jumper; 60" (1.52m) length; 45 bent lug on grounding strip side; provided with .16 oz. (5cc) of antioxidant, two each #12-24 x 1/2", M6 x 12mm, #10-32 x 1/2" and M5 x 12mm thread-forming screws and a copper compression HTAP* for connect ing to the MCBN.
Panduit StructuredGround Jumper Kit, Equipment Bonding, Specifications: 6 AWG Conductor, 45 deg Angle, 0.2 in Stud, For Use With: StructuredGround Grounding System, Copper, Tin Plated, Green/Yellow, 60 in L Dimensions
Panduit - RGCBNJ660P22 - Features
- Automatically create the necessary bonds when installed, saving installation time and costs while preventing errors
- Providing a convenient bonding location for ITE which improves grounding cable management
- Insulated copper wire
- Bonds the rack or cabinet to the MCBN
- HTAPs, included in kits, require crimping tool and die
- HTAP is UL Listed and CSA Certified for applications up to 600 V when crimped with Panduit and specified competitor crimping tools and Panduit crimping dies
- Engineered to comply with US and International grounding requirements
Specifications
Specifications
Panduit - RGCBNJ660P22 - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | RGCBNJ660P22 |
| UNSPSC Code | 39121400 |
| Sub Brand | StructuredGround |
| Overall Length (In.) | 60 |
| Overall Length (mm) | 1524 |
| Angle | 45° |
| Color | Green/Yellow |
| Conductor Gauge (AWG) | 6 |
| Standards Met | UL and CSA |
| Application | Telecom/Data Center |
| Product Type | Equipment Bonding Jumper Kit |
| UPC | 07498379863 |
Panduit - RGCBNJ660P22 - Environmental Information
| RoHS Status | ROHS3 Compliant |
|---|---|
| Moisture Sensitivity Level (MSL) | Not Applicable |
| ECCN | EAR99 |
| HTSUS | 8544.42.9090 |
