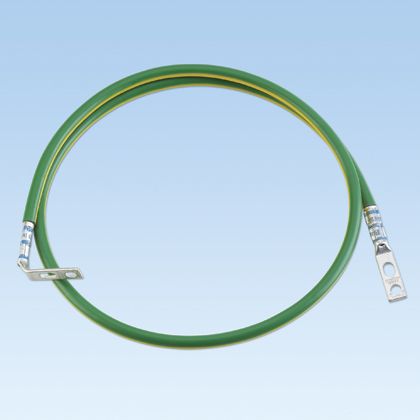

Panduit RGEJ624PFY | Structured Ground Equipment Bonding Jumper
Description
Description
Bond racks or cabinets to grounding systems with our equipment jumper kit. Complies with US and International standards for reliable grounding.
#6 AWG (16mm) jumper; bent lug on grounding strip side to straight lug on equipment; provided with .16 oz. (5cc) of antioxidant and two each #12-24 x 1/2", M6 x 12mm, #10-32 x 1/2" and M5 x 12mm thread-forming screws.
Panduit StructuredGround Jumper Kit, Equipment Bonding, 6 AWG Conductor, Straight/90 deg Angle, For Use With: Grounding Strip and Grounding Busbar, Copper, Tin Plated, Green/Yellow, 24 in L
Panduit - RGEJ624PFY - Features
- Bond network equipment to grounding strip or grounding busbar
- Insulated copper wire
- Use jumpers with 90 deg bent lug, on grounding strip side, for high density grounding requirements up to one ground point per RU
- Use jumpers with 45 deg bent lug, on grounding strip side, for improved cable management
- Engineered to comply with US and international grounding requirements
- Bond network equipment to grounding strip or grounding busbar
- Jumper kit available with both ends factory terminated to provide a bolt-on solution
- Jumper kit available with one end factory terminated to attach to the grounding strip or grounding busbar; free end accommodates unique equipment terminations
- Use jumpers with 90 bent lug, on grounding strip side, for high density grounding requirements up to one ground point per RU
- Use jumpers with 45 bent lugs, on grounding strip side, for improved cable management
- Use 24" jumpers when network equipment ground point is located near the grounding strip side of the rack or cabinet
- Use 36" jumpers when network equipment ground point is located away from the grounding strip side of the rack
- Engineered to comply with US and International grounding requirements
Specifications
Specifications
Panduit - RGEJ624PFY - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | RGEJ624PFY |
| Component | Jumper Kits |
| Connection Type | Mechanical |
| UNSPSC Code | 39121400 |
| Sub Brand | StructuredGround |
| Overall Length (In.) | 24 |
| Overall Length (mm) | 600 |
| Angle | Straight and 90° |
| Color | Green/Yellow |
| Conductor Gauge (AWG) | 6 |
| Application | Telecom/Data Center |
| Product Type | Equipment Bonding Jumper |
| UPC | 07498360860 |
Panduit - RGEJ624PFY - Environmental Information
| RoHS Status | ROHS3 Compliant |
|---|---|
| Moisture Sensitivity Level (MSL) | Not Applicable |
| ECCN | EAR99 |
| HTSUS | 8544.42.9090 |
