Panduit RGESD-1Y | ESD Port Kit
Description
Description

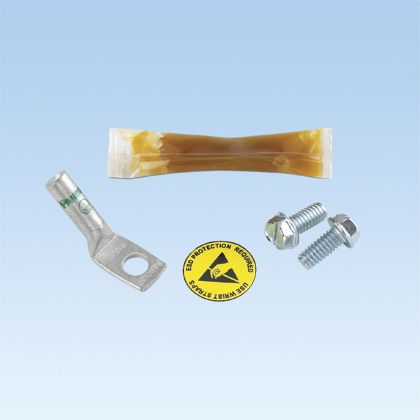

This is one-hole ESD Port Kit is a telecommunications grounding accessory that helps protect against electrostatic discharge to network equipment. It includes a .17 oz (5 cc) tube of antioxidant paste, 1 ESD protection sticker, one 12-24 x 1/2 screw, one 10-32 x 1/2 screw, one M5 x 12mm thread-forming screw, one M6 x 12mm thread-forming screw, and one cleaning pad. Designed for flexibility and ease of installation, this kit reduces the risk of damage when a technician performs routine cable maintenance or accidentally touches an I/O port.
Safeguard your network equipment from costly electrostatic discharge with our ESD port kit, featuring essential components for quick, secure installation.
This is one-hole ESD Port Kit is a telecommunications grounding accessory that helps protect against electrostatic discharge to network equipment. It includes a .17 oz (5 cc) tube of antioxidant paste, 1 ESD protection sticker, one 12-24 x 1/2 screw, one 10-32 x 1/2 screw, one M5 x 12mm thread-forming screw, one M6 x 12mm thread-forming screw, and one cleaning pad. Designed for flexibility and ease of insta llation, this kit reduces the risk of damage when a technician performs routine cable maintenance or accidentally touches an I/O port.
Panduit - RGESD-1Y - Features
- Without pulling eye
- Applications: Threaded Rail Fastener
- Accommodates standard ESD wrist strap 4mm plug
- Can be mounted to front or back of rack or cabinet for convenient access
- Bent 45, acts as a hook to hold wrist strap
- Two-hole configuration available to provide anti-rotation and prevent loss of bond
- Barrel permanently marked with the protective earth (ground) symbol
- Engineered to comply with US and International grounding requirements
Specifications
Specifications
Panduit - RGESD-1Y - Specifications
| Component | Electrostatic Discharge (Esd) |
|---|---|
| UNSPSC Code | 39121400 |
| Technical Information | RoHS Compliant |
| Product Type | ESD Port Kit |
| Sub Brand | StructuredGround™ |
| Number of Holes | 1 |
| Color | Black |
| Application | Threaded Rail Fastener |
| Standards Met | RoHS Compliant |
| Includes | 45 degree bent 1-hole lug port, antioxidant paste, 1 ESD protection sticker, one 12-24 x 1/2 screw, one 10-32 x 1/2 screw, one M5 x 12mm thread-forming screw, one M6 x 12mm thread-forming screw, and one cleaning pad |
| UPC | 07498360865 |
Panduit - RGESD-1Y - Package Information
| UPC | 07498360865 |
|---|---|
| Standard Packaging Quantity | 1 |
| Standard Packaging Volume (cf) | 0.0142 |
| Standard Ctn. Quantity | 20 |
| Standard Ctn. Volume (cf) | 0.2845 |
