Panduit RGRB19Y | Structured Ground Busbar Kit, Tin-Plated, Copper ...
Description
Description
Keep your network secure with our grounding busbar kit. Designed for 19" racks, it offers a dedicated ground system and easy installation with thread-forming screws.

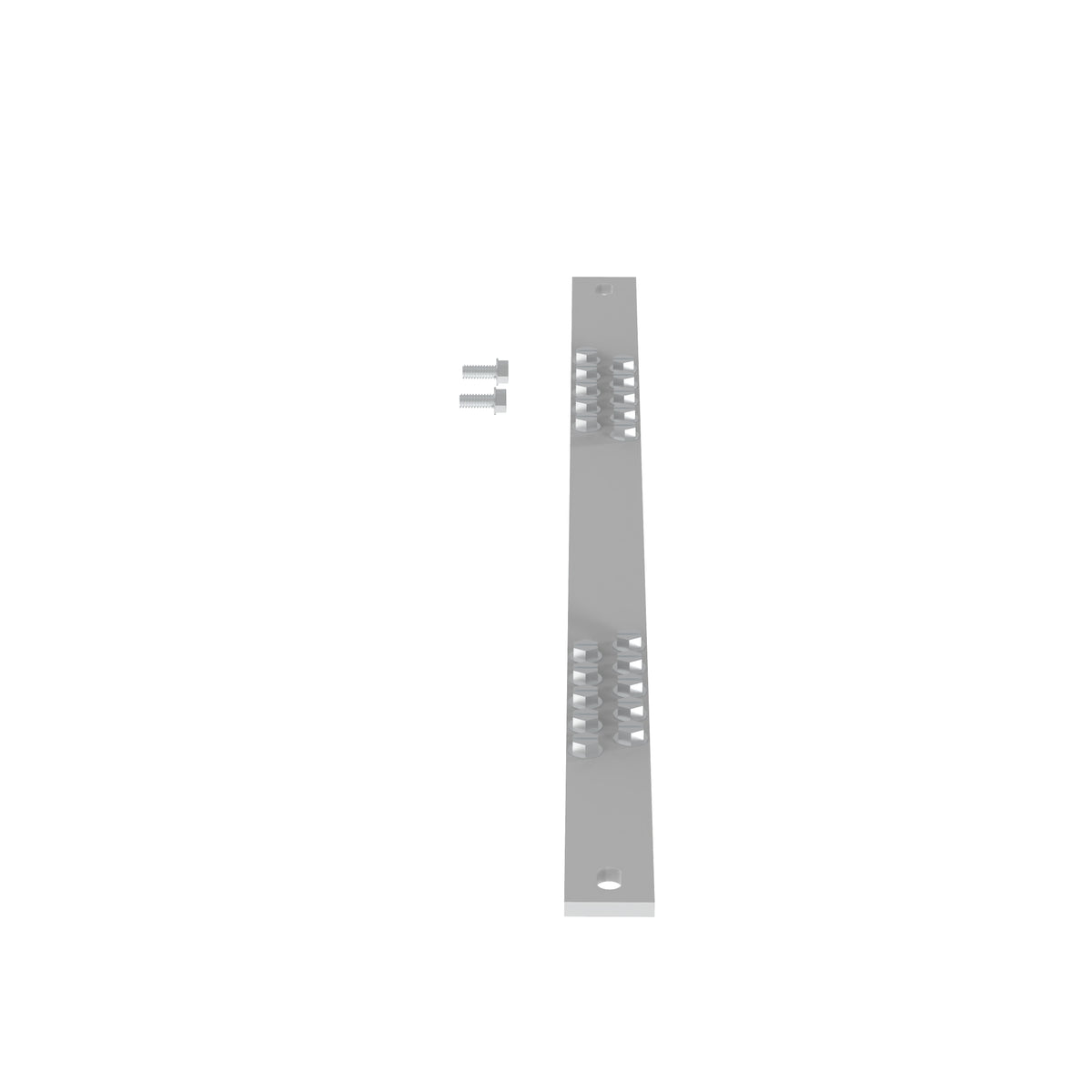

Grounding busbar; 19" (483mm) length; tin-plated; fourteen holes arranged for flexibility in mounting; provided with two each #12-24 x 1/2" and M6 x 12mm thread-forming screws.
Panduit StructuredGround Grounding Busbar Kit, Specifications: 5/8 in Hole, 14-Hole, 0.2 in Stud, For Use With: 19 in Rack System, Copper, Tin Plated, 19 in L Dimensions
Panduit - RGRB19Y - Features
- 14 holes arranged for flexibility in mounting
- Provided with 2 each #12-24 x 1/2 in and M6 x 12 mm thread forming screws
- Provide a dedicated ground system to maintain system performance and protect network equipment when equipment is already installed
- Provide a complete system of matched components that can be easily selected to save cost and labor
- Thread forming screws eliminate the need to manually remove paint from the rack
- Provide the common grounding point within the cabinet
- Optimized for installation on 19" racks or cabinets that meet EIA-310-D
- Can be positioned anywhere on the rack or cabinet
- Available pre-assembled with twenty mounting screws for quick and easy installation
- Engineered to comply with US and International grounding requirements
Specifications
Specifications
Panduit - RGRB19Y - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | RGRB19Y |
| Application | Rack/Cabinet/Enclosure |
| Component | Busbars |
| UNSPSC Code | 39121400 |
| Sub Brand | StructuredGround |
| Overall Width (In.) | 1 |
| Overall Width (mm) | 25 |
| Overall Depth (In.) | 19.37 |
| Overall Depth (mm) | 491.5 |
| Standards Met | EIA-310, UL listed |
| Includes | mounting hardware |
| Application | Telecom/Data Center |
| Product Type | Busbar Kit |
| For Use With | 19" Racks that meet EIA-310-D |
| Part Features | Includes fourteen holes arranged for flexibility in mounting; provided with two each #12-24 x 1/2" and M6 x 12mm thread-forming screws |
| UPC | 07498360866 |
Panduit - RGRB19Y - Environmental Information
| RoHS Status | ROHS3 Compliant |
|---|---|
| Moisture Sensitivity Level (MSL) | Not Applicable |
| ECCN | EAR99 |
| HTSUS | 7606.11.3060 |
Panduit - RGRB19Y - Videos
| Panduit RGRB19Y Video 1 | Click to View |
|---|
