Panduit RGREJ696Y | Rack Jumper Kit, Retrofit, 6 AWG, 96 in, EA
Description
Description
Bond racks or cabinets to grounding systems with our equipment jumper kit. Complies with US and International standards for reliable grounding.

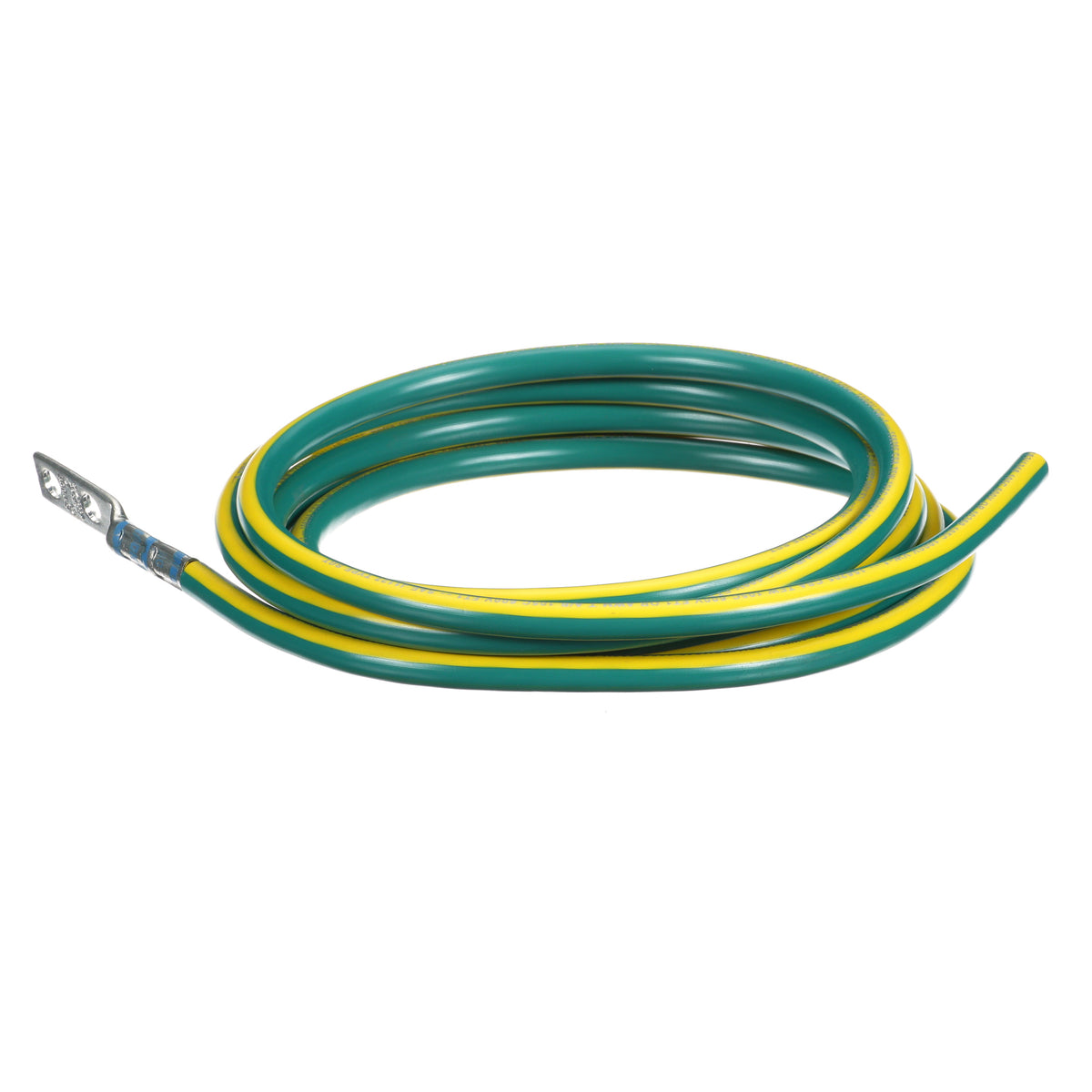

Grounding jumper; #6 AWG (16mm); 96" (2.44m) length; one end factory terminated to lug; provided with .16 oz. (5cc) of antioxidant and two each #12-24 x 1/2", M6 x 12mm, #10-32 x 1/2" and M5 x 12mm thread-forming screws.
Panduit Jumper Kit, Grounding Equipment, 6 AWG Conductor, Green/Yellow, 96 in L
Panduit - RGREJ696Y - Features
- Provide a dedicated ground system to maintain system performance and protect network equipment when equipment is already installed
- Optimized for installation on 19 in racks that meet EIA-310-D, with functioning equipment and are deployed in the field
- Provide a complete system of matched components that can be easily selected to save cost and labor
- Thread-forming screws eliminate the need to manually remove paint from the rack
- Engineered to comply with US and international grounding requirements
- Provides a dedicated ground system to maintain system performance and protect network equipment when RGS rack grounding strip kit cannot be used
- Optimized for installation on 19" racks that meet EIA-310-D, with functioning equipment, and are deployed in the field
- Provides a complete system of matched components that can be easily selected to save cost and labor
- Thread-forming screws eliminate the need to manually remove paint from the rack
- Engineered to comply with US and International grounding requirements
Specifications
Specifications
Panduit - RGREJ696Y - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | RGREJ696Y |
| Application | Rack/Cabinet/Enclosure |
| Component | Jumper Kits |
| Connection Type | Compression |
| UNSPSC Code | 39121400 |
| Sub Brand | StructuredGround |
| Overall Length (In.) | 96 |
| Overall Length (mm) | 2.4 |
| Angle | Straight |
| Color | Green/Yellow |
| Conductor Gauge (AWG) | 6 |
| Application | Telecom/Data Center |
| Product Type | Equipment Bonding Jumper |
| UPC | 07498360869 |
Panduit - RGREJ696Y - Environmental Information
| RoHS Status | ROHS3 Compliant |
|---|---|
| Moisture Sensitivity Level (MSL) | Not Applicable |
| ECCN | EAR99 |
| HTSUS | 8544.42.9090 |
