Panduit RGRKCBNJY | Structured Ground Busbar and Jumper Kit, 6AWG, ...
Description
Description
Secure your network with our grounding busbar and jumper kit. Fits 19RU racks, eliminates paint removal with thread-forming screws. Provides a complete, cost-effective grounding solution.

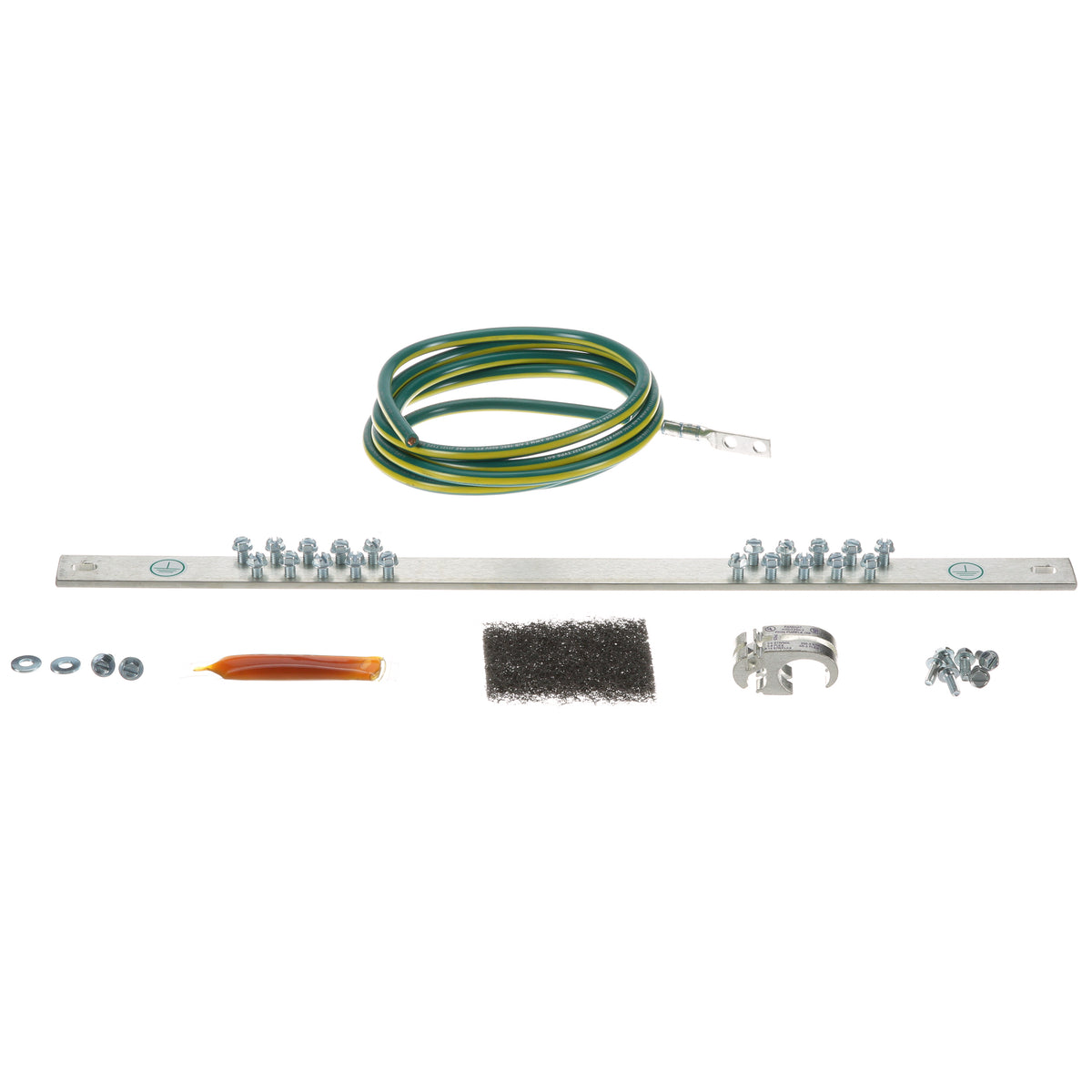

Rack grounding kit to ground the rack; includes one RGRB19U busbar, one HTCT250-2-1 HTAP, and one RGREJ696Y grounding jumper.
Panduit Grounding Kit, Rack, Specifications: 6 AWG Conductor Size, Straight Angle, For Use With: Cabinet Rack, Green, 96 in L Dimensions
Panduit - RGRKCBNJY - Features
- Rack grounding kit to ground the rack
- Provide a dedicated ground system to maintain system performance and protect network equipment when equipment is already installed
- Optimized for installation on 19 in racks that meet EIA-310-D, with functioning equipment and are deployed in the field
- Provide a complete system of matched components that can be easily selected to save cost and labor
- Thread-forming screws eliminate the need to manually remove paint from the rack
- Engineered to comply with US and international grounding requirements
- Provides a dedicated ground system to maintain system performance and protect network equipment when RGS rack grounding strip kit cannot be used
- Optimized for installation on 19" racks that meet EIA-310-D, with functioning equipment, and are deployed in the field
- Provides a complete system of matched components that can be easily selected to save cost and labor
- Thread-forming screws eliminate the need to manually remove paint from the rack
- Engineered to comply with US and International grounding requirements
Specifications
Specifications
Panduit - RGRKCBNJY - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | RGRKCBNJY |
| Application | Rack/Cabinet/Enclosure |
| Component | Grounding Kits |
| Connection Type | Mechanical |
| UNSPSC Code | 39121400 |
| Sub Brand | StructuredGround |
| Overall Length (In.) | 96 |
| Overall Length (mm) | 2438.4 |
| Color | Green/Yellow |
| Conductor Gauge (AWG) | 6 |
| Standards Met | UL 467, CSA certified |
| Application | Telecom/Data Center |
| Product Type | Busbar and Jumper Kit |
| UPC | 07498360870 |
Panduit - RGRKCBNJY - Environmental Information
| RoHS Status | ROHS3 Compliant |
|---|---|
| Moisture Sensitivity Level (MSL) | Not Applicable |
| ECCN | EAR99 |
| HTSUS | 8544.42.9090 |
Panduit - RGRKCBNJY - Videos
| Panduit RGRKCBNJY Video 1 | Click to View |
|---|
