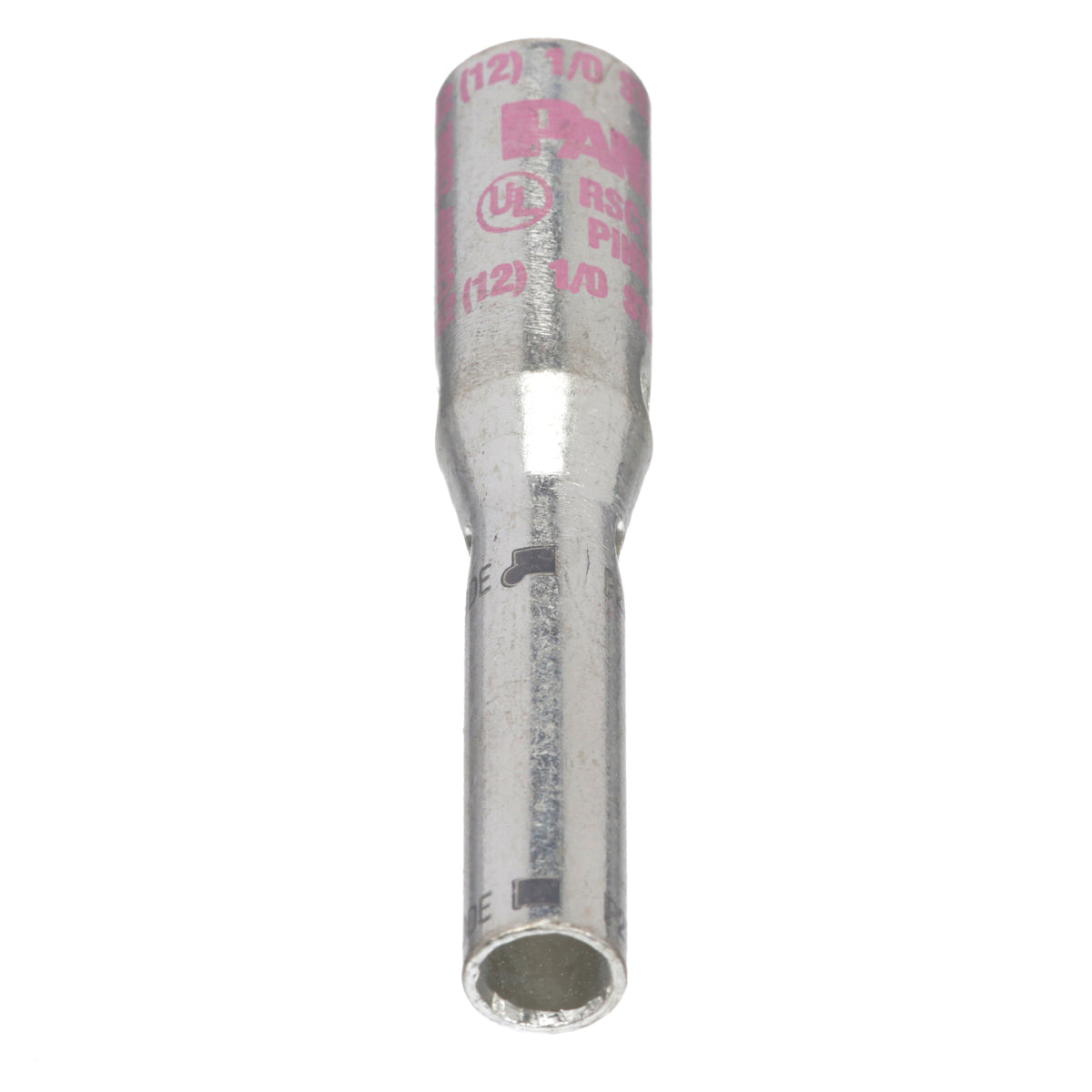

Panduit RSC1/0-4-X | Pan-Lug Compression In-Line Reducing Splice
Regular price
$32.01
Unit price
Brand: Panduit
|
SKU:
10044935
Regular price
$32.01
Unit price
Description
Description
Panduit RSC1/0-4-X | Pan-Lug Compression In-Line Reducing Splice
In-line reducing splice, 1/0 - #4 AWG code conductor.
Specifications
Specifications
Panduit - RSC1/0-4-X - Specifications
| Product Type | Compression In-Line Reducing Splice |
|---|---|
| Base Material | Copper |
| Barrel Type | Standard |
| Finish/Coating | Tin-Plated |
| Maximum Copper Conductor Size (AWG STR) | 1/0 |
| Minimum Copper Conductor Size (AWG STR) | 4 |
| Insulation Material | Non-Insulated |
| Barrel Length (In.) | 1.38 |
| Barrel Length (mm) | 35.1 |
| Overall Length (In.) | 2.7 |
| Overall Length (mm) | 68.6 |
| Standards Met | UL Listed and CSA Certified to 35 kV and temperature rated to 90°C |
| UL Temperature Rating (°C) | 90 |
| CSA Temperature Rating (°C) | 90 |
| Maximum Voltage (kV) | 35 |
| Color Code | Pink |
| Burndy Die Index Number | 12, 8 |
| Panduit Die Index Number | P42, P29 |
| T & B Die Index Number | 42, 29 |
| Wire Strip Length (In.) | 1 |
| Wire Strip Length (mm) | 25.4 |
| Gauge | 4 Awg |
| UNSPSC Code | 39121400 |
Panduit - RSC1/0-4-X - Package Includes
| UPC | 07498342034 |
|---|---|
| Std. Pkg. Qty. | 10 |
| Std. Pkg. Volume (cf) | 0.0305 |
| Std. Ctn. Qty. | 0 |
| Std. Ctn. Volume (cf) | 0.0000 |
