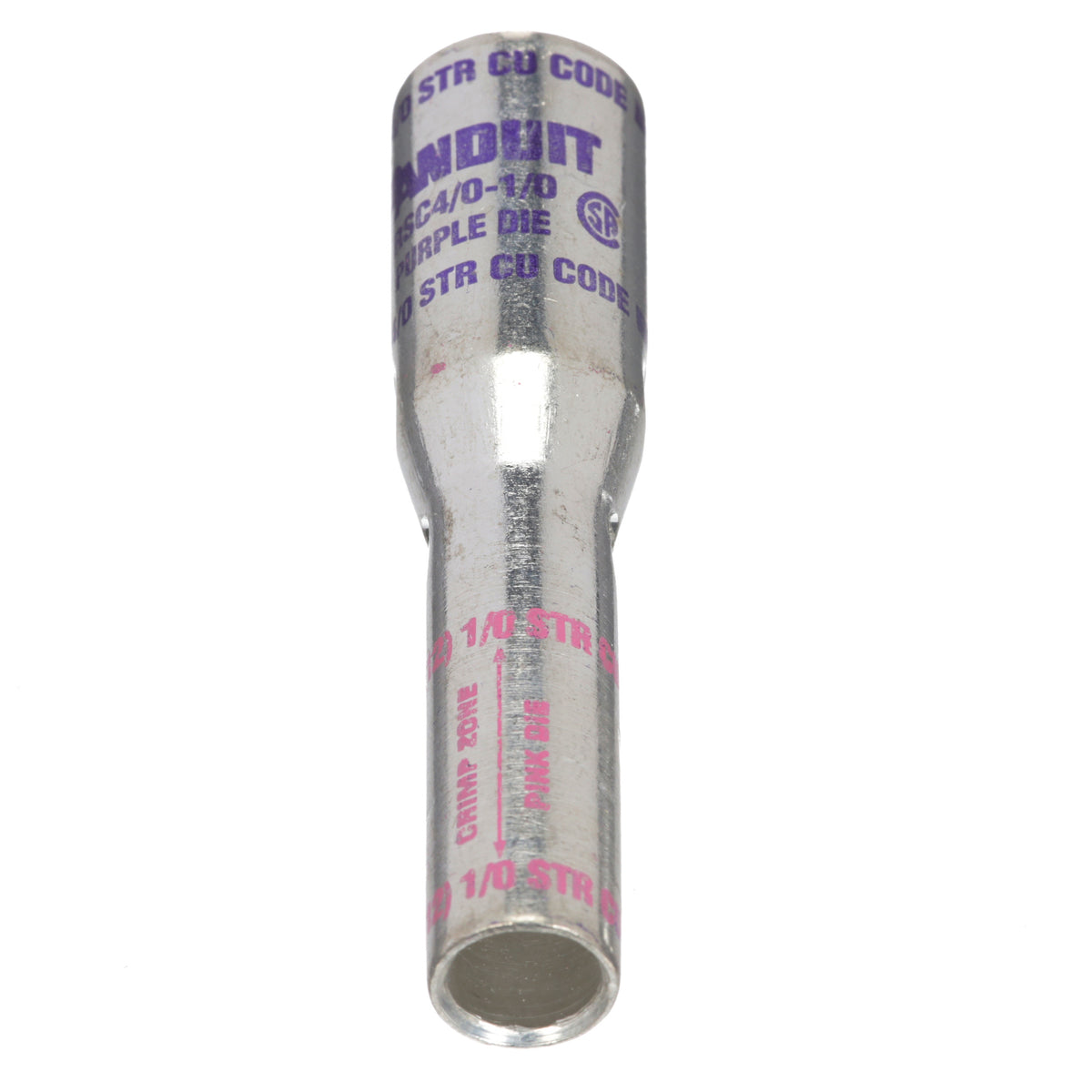

Panduit RSC4/0-1/0-X | Pan-Lug Compression In-Line Reducing Splice
Regular price
$40.76
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit RSC4/0-1/0-X | Pan-Lug Compression In-Line Reducing Splice
Regular price
$40.76
Unit price
Description
Description
Panduit RSC4/0-1/0-X | Pan-Lug Compression In-Line Reducing Splice
In-line reducing splice, copper compression, 4/0 - 1/0 AWG code conductor
Specifications
Specifications
Panduit - RSC4/0-1/0-X - Specifications
| Product Type | Compression In-Line Reducing Splice |
|---|---|
| Base Material | Copper |
| Barrel Type | Standard |
| Finish/Coating | Tin-Plated |
| Maximum Copper Conductor Size (AWG STR) | 4/0 |
| Minimum Copper Conductor Size (AWG STR) | 1/0 |
| Insulation Material | Non-Insulated |
| Barrel Length (In.) | 1.63 |
| Barrel Length (mm) | 41.4 |
| Overall Length (In.) | 3.13 |
| Overall Length (mm) | 79.5 |
| Standards Met | UL Listed and CSA Certified to 35 kV and temperature rated to 90°C |
| UL Temperature Rating (°C) | 90 |
| CSA Temperature Rating (°C) | 90 |
| Maximum Voltage (kV) | 35 |
| Color Code | Purple |
| Burndy Die Index Number | 15, 12 |
| Panduit Die Index Number | P54, P42 |
| T & B Die Index Number | 54, 42 |
| Wire Strip Length (In.) | 1-1/16 |
| Wire Strip Length (mm) | 27 |
| Gauge | 1/0 Awg |
| Lug Material | Copper |
| UNSPSC Code | 39121400 |
Panduit - RSC4/0-1/0-X - Package Includes
| UPC | 07498345399 |
|---|---|
| Std. Pkg. Qty. | 10 |
| Std. Pkg. Volume (cf) | 0.0328 |
| Std. Ctn. Qty. | 0 |
| Std. Ctn. Volume (cf) | 0.0000 |
