Brand: Panduit
|
SKU:
10044967

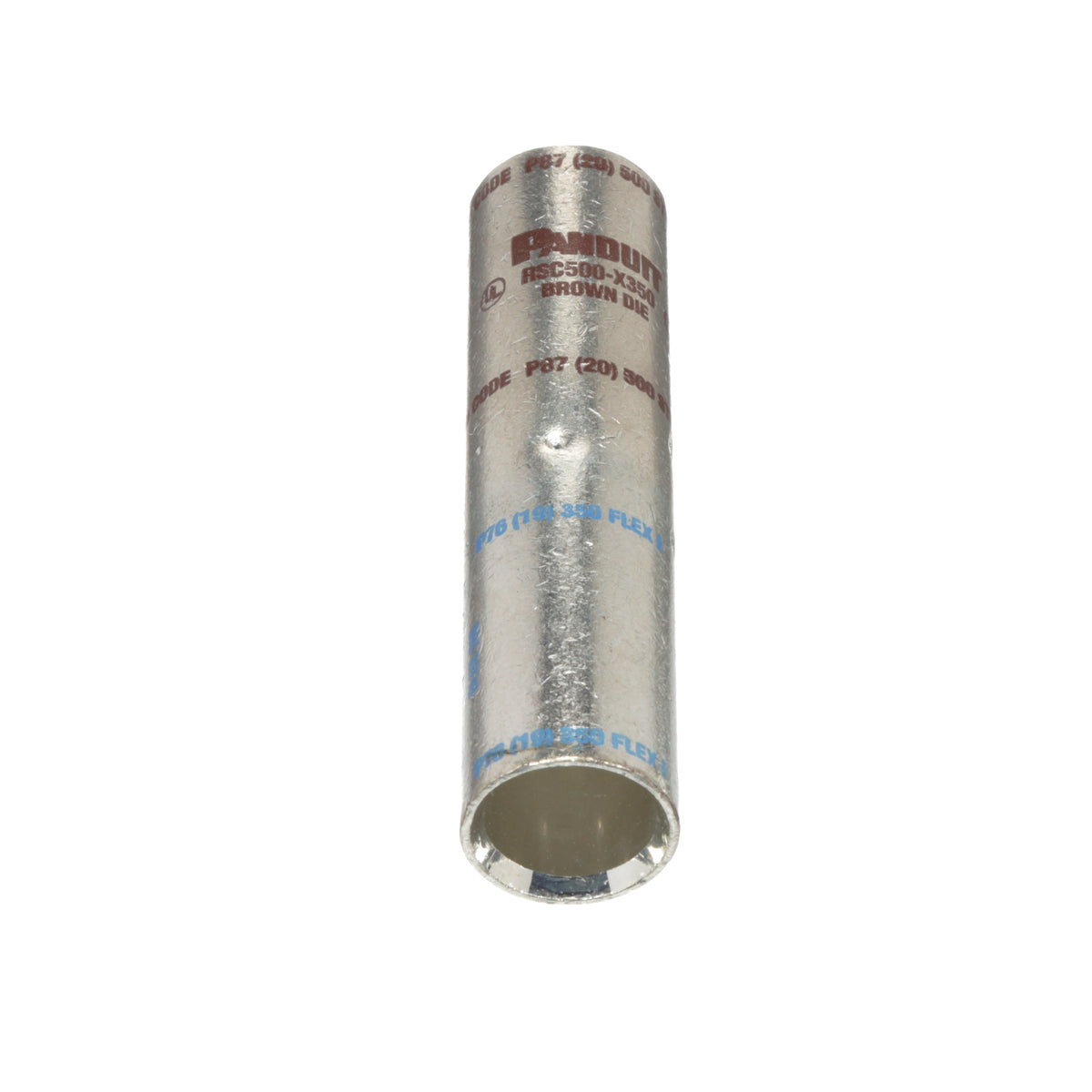

Panduit RSC500-X350-6 | Pan-Lug Compression In-Line Reducing Splice
Regular price
$55.31
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit RSC500-X350-6 | Pan-Lug Compression In-Line Reducing Splice
Regular price
$55.31
Unit price
Description
Description
Panduit RSC500-X350-6 | Pan-Lug Compression In-Line Reducing Splice
In-line reducing splice, 500 - 350 kcmil code/flex conductor.
Specifications
Specifications
Panduit - RSC500-X350-6 - Specifications
| Product Type | Compression In-Line Reducing Splice |
|---|---|
| Base Material | Copper |
| Barrel Type | Standard |
| Finish/Coating | Tin-Plated |
| Maximum Copper Conductor Size (kcmil) | 500 |
| Class I Copper Flex Conductor Size (kcmil) | 350 |
| Insulation Material | Non-Insulated |
| Barrel Length (In.) | 1.94 |
| Barrel Length (mm) | 49.3 |
| Overall Length (In.) | 4.38 |
| Overall Length (mm) | 111.3 |
| Standards Met | UL Listed and CSA Certified to 35 kV and temperature rated to 90°C |
| UL Temperature Rating (°C) | 90 |
| CSA Temperature Rating (°C) | 90 |
| Maximum Voltage (kV) | 35 |
| Color Code | Brown |
| Burndy Die Index Number | 20, 19 |
| Panduit Die Index Number | P87, P76 |
| T & B Die Index Number | 87, 76 |
| Wire Strip Length (In.) | 1-7/8 |
| Wire Strip Length (mm) | 47.6 |
| UNSPSC Code | 39121400 |
Panduit - RSC500-X350-6 - Package Includes
| UPC | 07498345402 |
|---|---|
| Std. Pkg. Qty. | 6 |
| Std. Pkg. Volume (cf) | 0.0395 |
| Std. Ctn. Qty. | 0 |
| Std. Ctn. Volume (cf) | 0.0000 |
