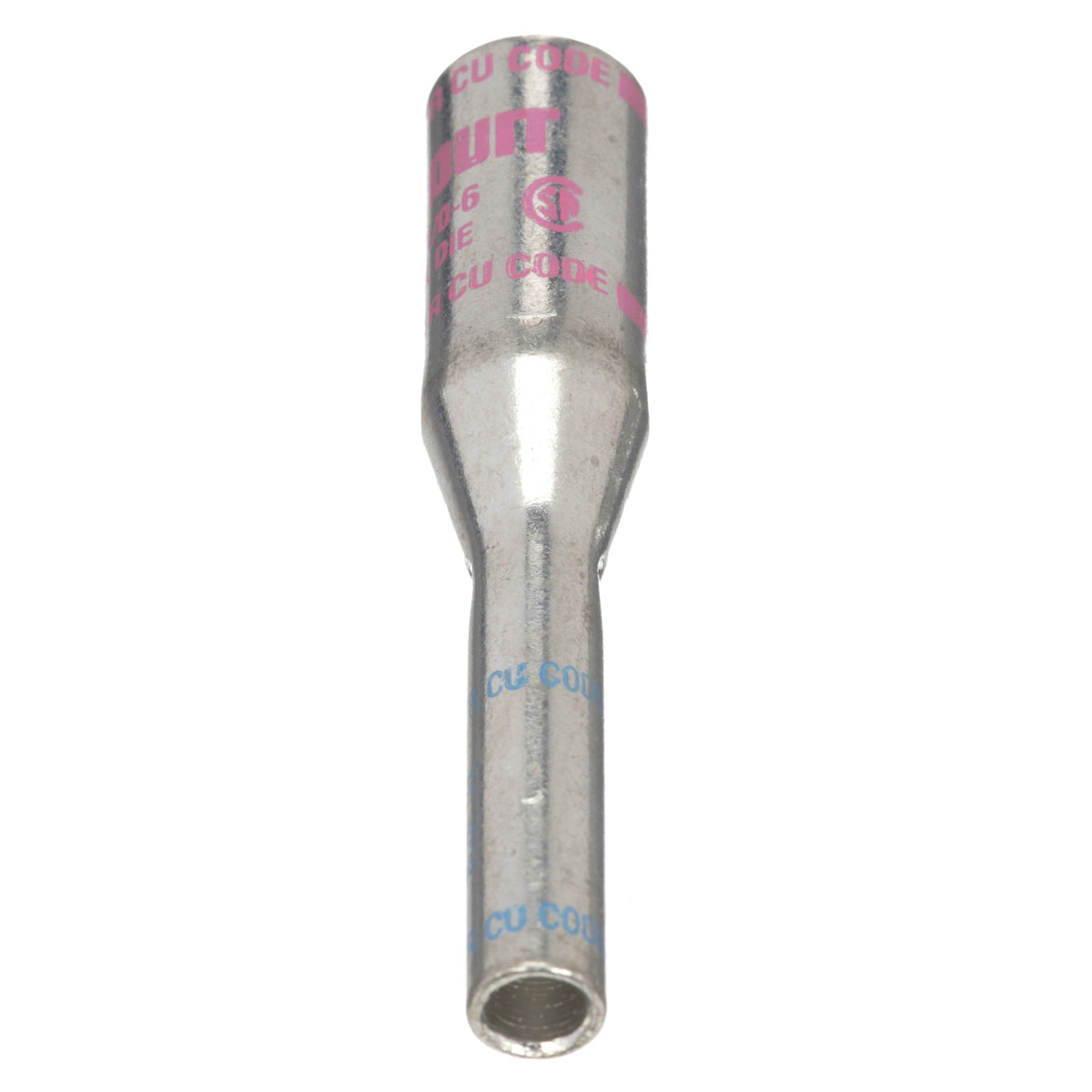

Panduit RSCK1/0-6-1 | Pan-Lug Compression In-Line Reducing Splice
Regular price
$40.76
Unit price
Brand: Panduit
|
SKU:
10044958
Regular price
$40.76
Unit price
Description
Description
Panduit RSCK1/0-6-1 | Pan-Lug Compression In-Line Reducing Splice
In-line reducing splice kit, 1/0 - #6 AWG code conductor. HSTTPN75-775-Q crystal clear PVC heat shrink 3/4" dia. x 7.750" long. HSTTPN50-438-L crystal clear PVC heat shrink 1/2" dia. x 4.375" long.
Specifications
Specifications
Panduit - RSCK1/0-6-1 - Specifications
| Product Type | Compression In-Line Reducing Splice |
|---|---|
| Base Material | Copper |
| Barrel Type | Standard |
| Finish/Coating | Tin-Plated |
| Maximum Copper Conductor Size (AWG STR) | 1/0 |
| Minimum Copper Conductor Size (AWG STR) | 6 |
| Insulation Material | Non-Insulated |
| Barrel Length (In.) | 1.38 |
| Barrel Length (mm) | 35.1 |
| Overall Length (In.) | 2.81 |
| Overall Length (mm) | 71.4 |
| Standards Met | UL Listed and CSA Certified to 35 kV and temperature rated to 90°C |
| UL Temperature Rating (°C) | 90 |
| CSA Temperature Rating (°C) | 90 |
| Maximum Voltage (kV) | 35 |
| Color Code | Pink |
| Burndy Die Index Number | 12, 7 |
| Panduit Die Index Number | P42, P24 |
| T & B Die Index Number | 42, 24 |
| Wire Strip Length (In.) | 1 |
| Wire Strip Length (mm) | 25.4 |
| Barrel | Long |
| Gauge | 6 Awg |
| UNSPSC Code | 39121400 |
Panduit - RSCK1/0-6-1 - Package Includes
| UPC | 07498342053 |
|---|---|
| Std. Pkg. Qty. | 1 |
| Std. Pkg. Volume (cf) | 0.0231 |
| Std. Ctn. Qty. | 0 |
| Std. Ctn. Volume (cf) | 0.0000 |
