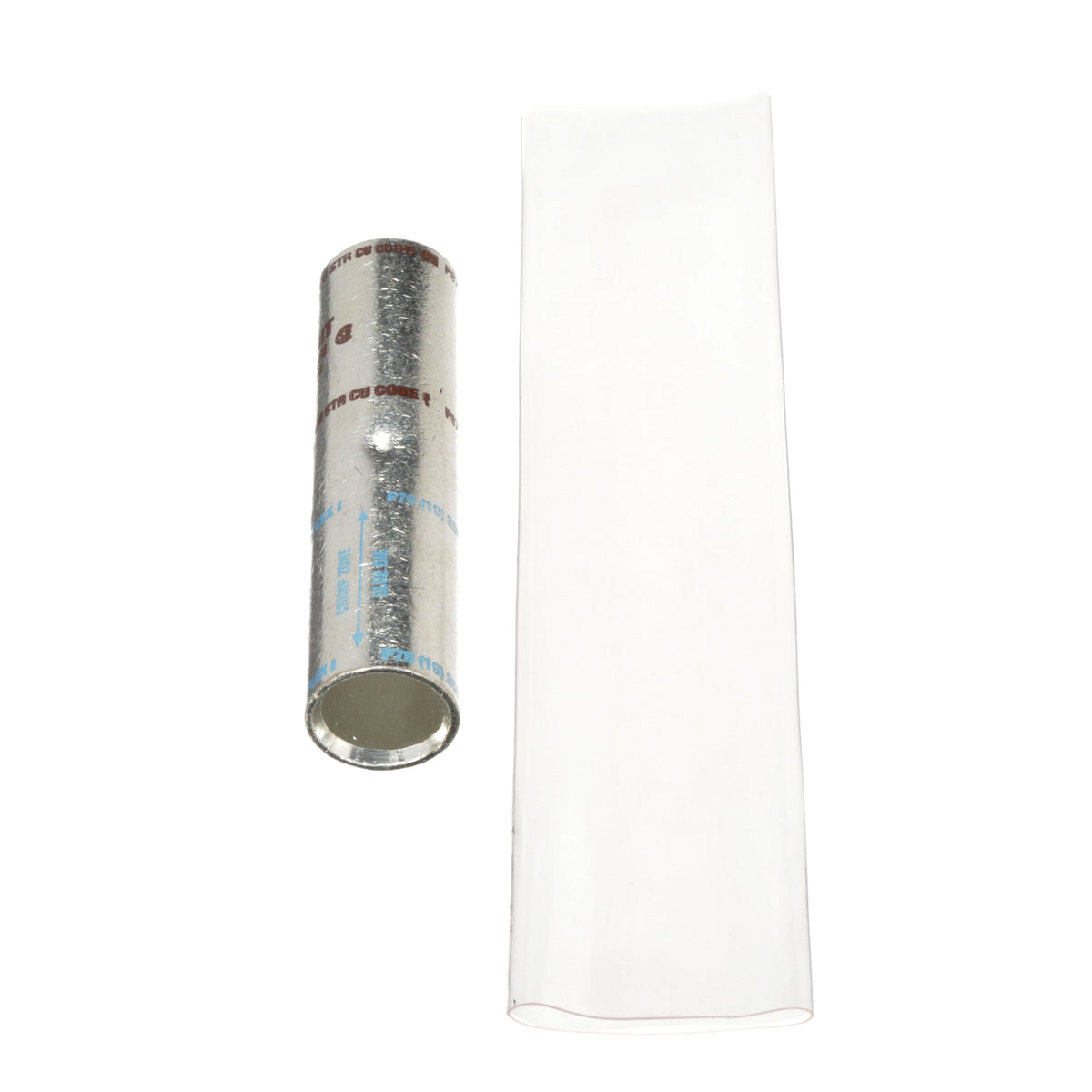

Panduit RSCK500-X350-1 | Pan-Lug Compression In-Line Reducing Splice
In-line reducing splice kit, 500 - 350 kcmil code/flex conductor. HSTTPN150-925-X crystal clear PVC heat shrink 1 1/2" dia. x 9.250" long.
Specifications
Specifications
Panduit - RSCK500-X350-1 - Specifications
| Product Type | Compression In-Line Reducing Splice |
|---|---|
| Base Material | Copper |
| Barrel Type | Standard |
| Finish/Coating | Tin-Plated |
| Maximum Copper Conductor Size (kcmil) | 500 |
| Class I Copper Flex Conductor Size (kcmil) | 350 |
| Insulation Material | Non-Insulated |
| Barrel Length (In.) | 1.94 |
| Barrel Length (mm) | 49.3 |
| Overall Length (In.) | 4.38 |
| Overall Length (mm) | 111.3 |
| Standards Met | UL Listed and CSA Certified to 35 kV and temperature rated to 90°C |
| UL Temperature Rating (°C) | 90 |
| CSA Temperature Rating (°C) | 90 |
| Maximum Voltage (kV) | 35 |
| Color Code | Brown |
| Burndy Die Index Number | 20, 19 |
| Panduit Die Index Number | P87, P76 |
| T & B Die Index Number | 87, 76 |
| Wire Strip Length (In.) | 1-7/8 |
| Wire Strip Length (mm) | 47.6 |
| Barrel | Long |
| UNSPSC Code | 39121400 |
Panduit - RSCK500-X350-1 - Package Includes
| UPC | 07498345407 |
|---|---|
| Std. Pkg. Qty. | 1 |
| Std. Pkg. Volume (cf) | 0.0417 |
| Std. Ctn. Qty. | 0 |
| Std. Ctn. Volume (cf) | 0.0000 |
