Panduit S050X150TAT-A | Tedlar® Thermal Transfer Self-Laminating Label
Description
Description

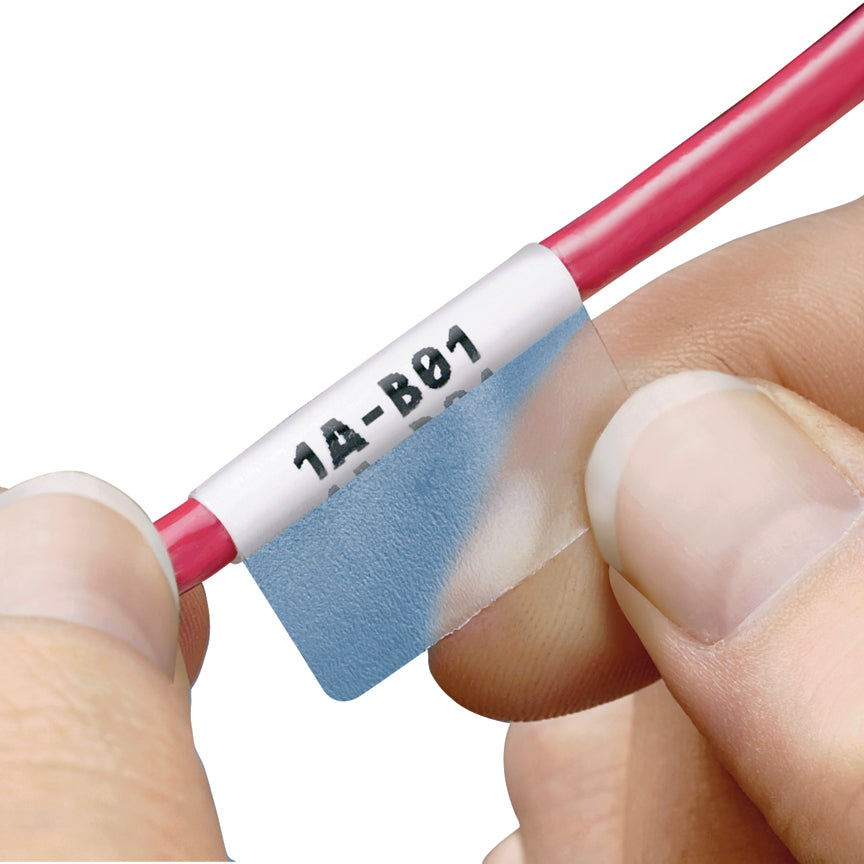

Panduit Pan-Code Wire and Cable Label, Self-Laminating, 1-1/2 in Length, 1/2 in W, Clear/White, Polyvinylfluoride, For Use With: Thermal Transfer Printer
Ensure fire safety with our flame-resistant thermal transfer self-laminating label. Ideal for identifying wires and cables in high-temperature environments.
The S050X150TAT-A Self-Extinguishing Self-Laminating Label includes a white print-on area and clear overlaminate to protect the legend for easy identification. It is sized specifically for wire and cable applications. Upgrade your cable coding system w ith improved organization and identification. Use with Easy-Mark Plus Labeling Software and TDP printers. Polyvinylfluoride. 0.50" x 1.50" (12.7 mm x 38.1 mm). Color Clear/White. 5000 labels per package.
Panduit - S050X150TAT-A - Features
- Two metal contacts
- Two-position padlock design
- Two-piece construction
- The tape can be cut to any length so you only use what you actually need
- Tabbed end at the beginning of the roll for easier starting
- Flexible polyester marker tape conforms tightly to wires/cables
- Pre-printed black on white vinyl cloth, adhesive back markers
- Indoor/outdoor rated for resistance to UV light, chemical atmosphere and abrasion
- Excellent long lasting adhesion properties
Specifications
Specifications
Panduit - S050X150TAT-A - Specifications
| Capacity | None |
|---|---|
| Category | Labels |
| Depth | None |
| Height | None |
| UNSPSC Code | 55121609 |
| Technical Information | RoHS Compliant |
| Note | For use with TDP printers |
| Label Dimensions (In.) | 1.5L x 0.5W |
| Product Type | Self-Laminating Label |
| Cable Type | Category 5e UTP; Category 6 UTP; Category 6e UTP; Category 5e FTP |
| Color | White |
| Material | PVF |
| Printer Type | Thermal Transfer |
| Standards Met | RoHS Compliant |
| Compatible Wire Gauge (AWG) | 10-6 |
| Maximum Cable Diameter (In.) | 0.32 |
| Maximum Cable Diameter (mm) | 8.1 |
| Minimum Cable Diameter (In.) | 0.16 |
| Minimum Cable Diameter (mm) | 4.1 |
| Maximum Operating Temperature (°C) | 135 |
| Maximum Operating Temperature (°F) | 275 |
| Minimum Operating Temperature (°C) | -54 |
| Minimum Operating Temperature (°F) | -65 |
| Number of Labels | 5000 |
| Overall Length (In.) | 1.5 |
| Overall Length (mm) | 38.1 |
| Overall Width (In.) | 0.5 |
| UPC | 61305631083 |
Panduit - S050X150TAT-A - Package Information
| UPC | 61305631083 |
|---|---|
| Standard Packaging Quantity | 5000 |
| Standard Packaging Volume (cf) | 0.7051 |
| Standard Ctn. Quantity | 0 |
| Standard Ctn. Volume (cf) | 0.0000 |
