Panduit S075X075VATY | Self-Laminating Label
Description
Description

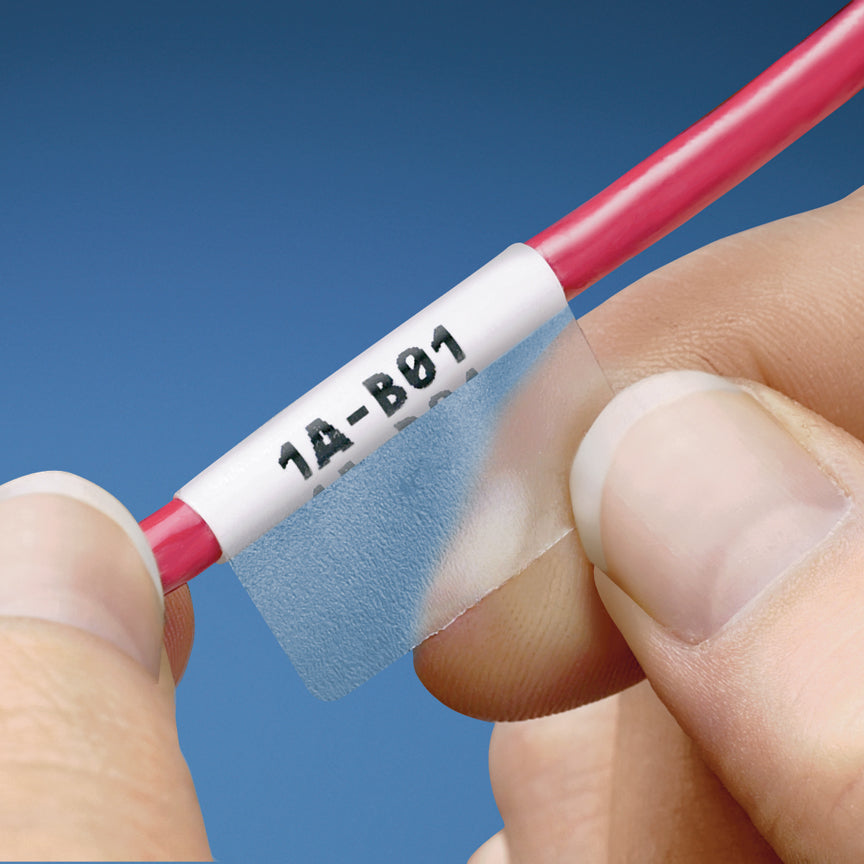

Our vinyl thermal transfer self-laminating label provides clear, durable, and protected wire and cable identification that's designed for efficient, high-volume labeling.
The thermal transfer self-laminating adhesive label is made of vinyl and is supplied on a roll with 5 labels per row. The label has a white colored print-on area 0.25" (6.4 mm) high for 18 - 14 AWG wires and a clear overlaminate. It is 0.75" wide and 0 .75" long (19.1 x 19.1 mm) with a 3.0" (76.2 mm) core. It comes in packages of 5000.
Panduit Pan-Code Label, Adhesive Blank Self-Laminating, 3/4 in Length, 3/4 in W, White, Vinyl, For Use With: Dot Matrix and Thermal Transfer Printer
Panduit - S075X075VATY - Features
- Thermal transfer printable continuous tape format
- Super-tack polyester has ultra aggressive adhesive
Specifications
Specifications
Panduit - S075X075VATY - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | S075X075VATY |
| Type | Labels |
| Label Types | Vinyl |
| UNSPSC Code | 55120000 |
| Note | For use with TDP printers |
| Label Dimensions (In.) | 0.75L x 0.75W |
| Product Type | Self-Laminating Label |
| Cable Type | Category 6 28 AWG |
| Color | White |
| Material | Vinyl |
| Printer Type | Thermal Transfer |
| Standards Met | RoHS Compliant, UL969 recognized, File # MH14979; cUL recognized, C22.2 No. 0.15-01, File # MH14979 |
| Compatible Wire Gauge (AWG) | 18-14 |
| Maximum Cable Diameter (In.) | 0.16 |
| Maximum Cable Diameter (mm) | 4.1 |
| Minimum Cable Diameter (In.) | 0.08 |
| Minimum Cable Diameter (mm) | 2 |
| Maximum Operating Temperature (°C) | 65 |
| Maximum Operating Temperature (°F) | 150 |
| Minimum Operating Temperature (°C) | -40 |
| Minimum Operating Temperature (°F) | -40 |
| Number of Labels | 5 |
| Overall Length (In.) | 0.75 |
| Overall Length (mm) | 19 |
| Overall Width (In.) | 0.75 |
| UPC | 07498368388 |
