Brand: Panduit
|
SKU:
PAN-S075X075YAJ
Panduit S075X075YAJ | S075X075YAJ Self-Laminating Label
Regular price
$180.56
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit S075X075YAJ | S075X075YAJ Self-Laminating Label
Regular price
$180.56
Unit price
Brand: Panduit
|
SKU:
PAN-S075X075YAJ
Regular price
$180.56
Unit price
Shipping calculated at checkout.
Description
Description

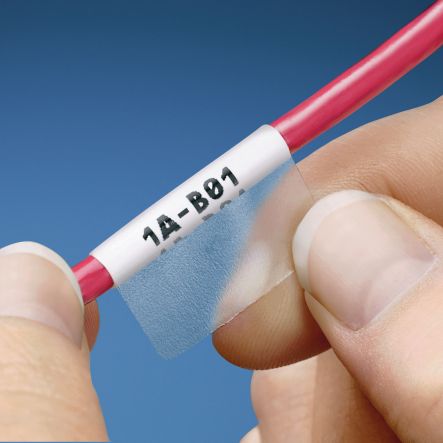

Panduit S075X075YAJ | S075X075YAJ Self-Laminating Label
The laser/ink jet self-laminating adhesive label is made of polyester and is supplied on 8.5 x 11" (203.2 x 292.1 mm) sheets with 9 labels per row and 117 labels per sheet. The label has a white colored print-on area 0.25" (6.4 mm) high for 18 - 14 AWG wires and a clear overlaminate. It is 0.75" wide and 0.75" long (19.1 x 19.1 mm). It comes in packages of 2500.
Panduit - S075X075YAJ - Features
- Labels can be printed in both laser and ink jet printers
- Self-laminating adhesive labels include a colored print-on area and clear overlaminate
Specifications
Specifications
Panduit - S075X075YAJ - Product Categories
- Signs, Labels & Identification
- Desktop Printer Labels
Panduit - S075X075YAJ - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | S075X075YAJ |
| Item Description | S075X075YAJ Self-Laminating Label |
| Product Type | Self-Laminating Label |
| Color | White |
| Material | Polyester |
| Printer Type | Laser/Inkjet |
| Sheet Size | Letter |
| Standards Met | RoHS Compliant, UL recognized, UL969, File # MH14979 |
| Compatible Wire Gauge (AWG) | 18 – 14 |
| Maximum Cable Diameter (In.) | 0.16 |
| Maximum Cable Diameter (mm) | 4.1 |
| Minimum Cable Diameter (In.) | 0.08 |
| Minimum Cable Diameter (mm) | 2 |
| Maximum Operating Temperature (°C) | 107 |
| Maximum Operating Temperature (°F) | 225 |
| Minimum Operating Temperature (°C) | -54 |
| Minimum Operating Temperature (°F) | -65 |
| Number of Labels | 2.5 |
| Overall Length (In.) | 0.75 |
| Overall Length (mm) | 19 |
| Overall Width (In.) | 0.75 |
| Overall Width (mm) | 19 |
| Print-On Area Height (In.) | 0.25 |
| Print-On Area Height (mm) | 6.4 |
| Label Application | Cable & Wire Marking |
| Label Property | Approved for Air Handling Spaces, Halogen Free |
Panduit - S075X075YAJ - Package Information
| UPC | 07498368385 |
|---|---|
| Standard Package Quantity | 2500 |
| Standard Package Volume (cf) | 0.1528 |
| Standard. Ctn. Quantity | 10000 |
| Standard. Ctn. Volume (cf) | 0.6113 |
