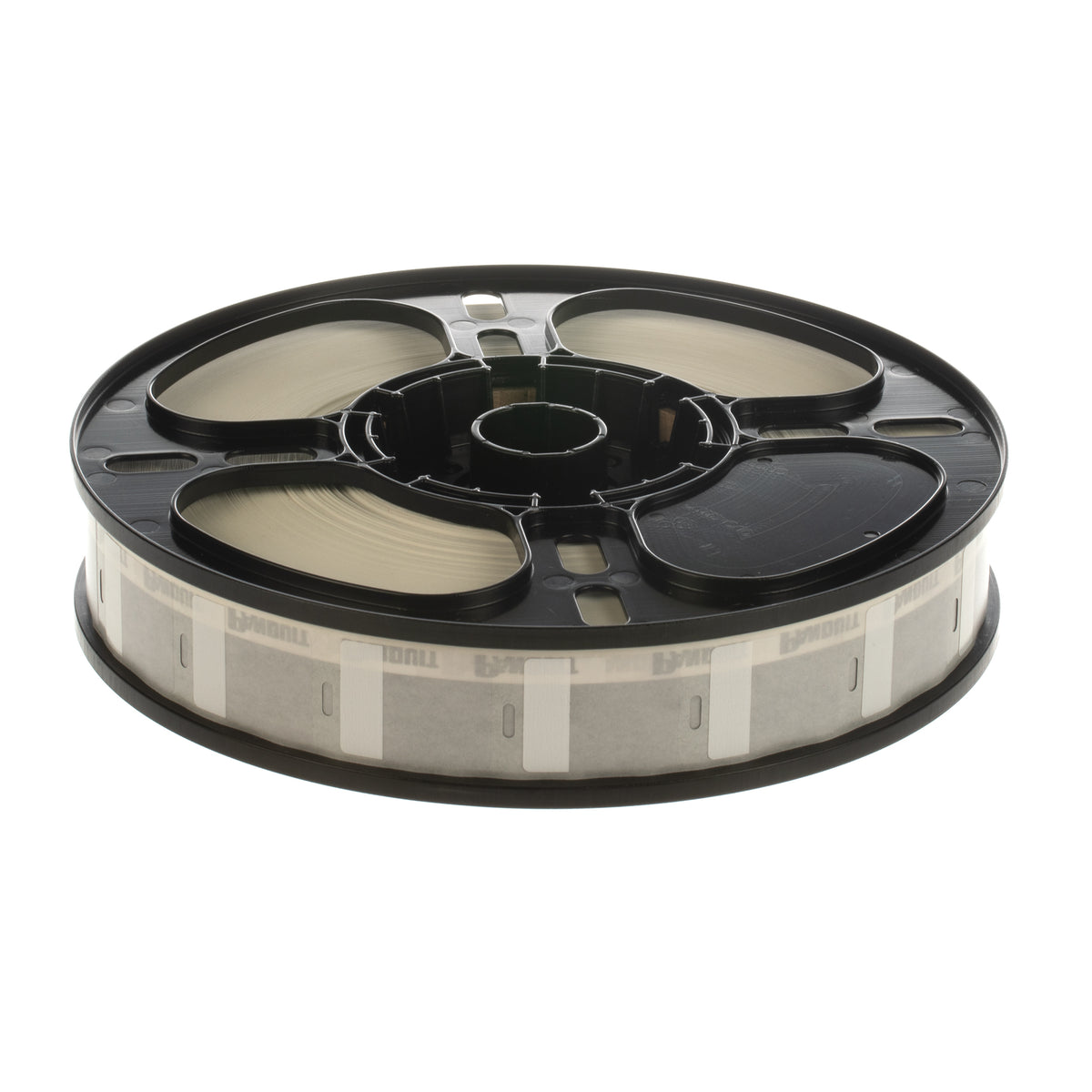

Panduit S100X125VAA | Self-Laminating Label | UPC - 61305679441

The S100X125VAA Thermal Transfer Vinyl Self-Laminating Label includes a white print-on area and clear overlaminate to protect the legend for easy identification. It is sized specifically for wire and cable applications. Upgrade your cable coding system with improved organization and identification. The label is made of thin and conformable material. 1.0" x 1.25" (25.4 x 31.8 mm). For use with PLA-100 Label Applicator. Color White. 4000 per package.

---

Panduit S100X125VAA | Self-Laminating Label | UPC - 61305679441 Key Specs

Product Type	Self-Laminating Label
Color	White/Clear
Material	Vinyl
Printer Type	Label Applicator
Number of Labels per Roll	4000
Overall Length (In.)	1.25
Overall Length (mm)	31.8
Overall Width (In.)	1
Overall Width (mm)	25.4
Print-On Area Height (In.)	0.38
Print-On Area Height (mm)	9.7
Compatible Wire Gauge (AWG)	Cat. 3 UTP / 12 - 10 AWG
For Use With	Label Applicator
Maximum Cable Diameter (In.)	0.28
Maximum Cable Diameter (mm)	7
Maximum Operating Temperature (°C)	66
Maximum Operating Temperature (°F)	150
Minimum Cable Diameter (In.)	0.12
Minimum Cable Diameter (mm)	3.1
