Panduit S100X125VAC P1 Cassette, Self-Lam Label, Vinyl, 1.00"; W x 1.25"; H, .38"; POA, Clear/White, 225 per roll
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit S100X125VAC P1 Cassette, Self-Lam Label, Vinyl, 1.00";...
Description
Description

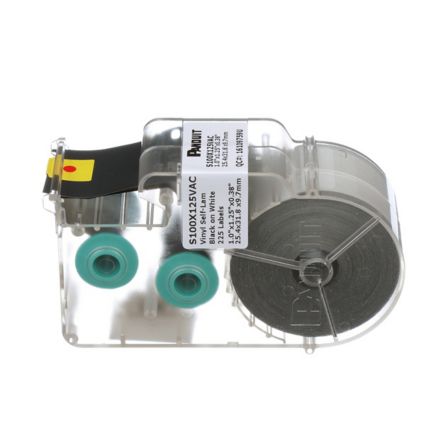

The S100X125VAC Thermal Transfer Self-Laminating Label includes a white print-on area and clear overlaminate to protect the legend for easy identification. It is sized specifically for wire and cable applications. The cassette contains an integrated memory device for automatic formatting, recall of last legend used, and the number of labels remaining. For use with LS8E and LS8EQ printers. Vinyl. 1.0" x 1.25" (25.4 mm x 31.8 mm). Color Clear/White. 225 labels/cassette. 1 cassette/package.
Panduit - S100X125VAC - Features
- Fast loading P1(TM) Label Cassette includes both label material and ribbon to make changing labels easy

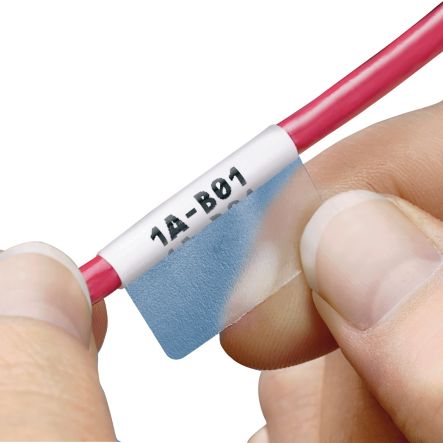

- Self-laminating adhesive labels for wire/cable identification include a colored print-on area and clear overlaminate
Specifications
Specifications
Panduit - S100X125VAC - Product Categories
- Signs, Labels & Identification
- Portable Printer Labels & Cassettes
Panduit - S100X125VAC - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | S100X125VAC |
| Item Description | P1 S100X125VAC Self-Lam, Vinyl, White, 225 Lbls, 1", 0.38" PO H, PK1 |
| Note | For use with LS8E and LS8EQ printers |
| Product Type | Self-Laminating Label |
| Sub Brand | P1 |
| Color | White |
| Compatible Wire Gauge (AWG) | 12-10 |
| Material | Vinyl |
| Number of Labels per Cassette | 225 |
| Standards Met | RoHS Compliant |
| Minimum Cable Diameter (In.) | 0.12 |
| Minimum Cable Diameter (mm) | 3.1 |
| Maximum Cable Diameter (In.) | 0.28 |
| Maximum Cable Diameter (mm) | 7.1 |
| Label Height (In.) | 1.25 |
| Label Height (mm) | 31.8 |
| Label Width (In.) | 1 |
| Label Width (mm) | 25.4 |
| Minimum Operating Temperature (°C) | -46 |
| Minimum Operating Temperature (°F) | -50 |
| Maximum Operating Temperature (°C) | 107 |
| Maximum Operating Temperature (°F) | 225 |
| Print-On Area Height (In.) | 0.38 |
| Print-On Area Height (mm) | 9.7 |
| Label Application | Cable & Wire Marking |
| Overall Width (In.) | 1 |
| Overall Width (mm) | 25.4 |
Panduit - S100X125VAC - Package Information
| UPC | 07498335302 |
|---|---|
| Standard Package Quantity | 1 |
| Standard Package Volume (cf) | 0.0190 |
| Standard. Ctn. Quantity | 10 |
| Standard. Ctn. Volume (cf) | 0.1899 |
