Panduit S100X220FAL | Self-Laminating Label | UPC - 07498361661

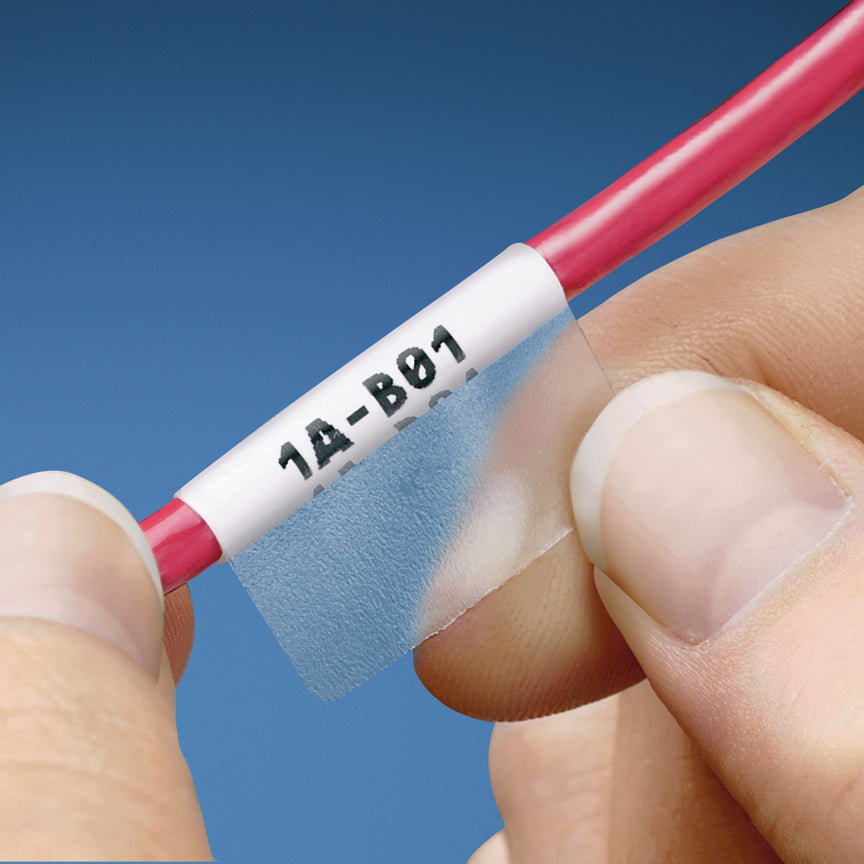

The laser self-laminating adhesive label is made of polyolefin and is supplied on 8.5 x 11" (203.2 x 292.1 mm) sheets with 8 labels per row and 32 labels per sheet. The label has a white colored print-on area 1.1" (27.9 mm) high for LabelCore(TM) Sleeves - NWSLC-7Y wires and a clear overlaminate. It is 1.0" wide and 2.2" long (25.4 x 55.9 mm). It comes in packages of 1000.

---

Panduit Panduit S100X220FAL | Self-Laminating Label | UPC - 07498361661 Key Specs

Product Type	Self-Laminating Label
Cable Type	Category 6 FTP;Category 6A UTP;Category 6A FTP
Color	White
Material	Polyolefin
Printer Type	Laser
Sheet Size	Letter
Standards Met	RoHS Compliant, UL Recognized: UL969, File # MH 14979
Sub Brand	Pan-Code
Compatible Wire Gauge (AWG)	8 – 4
Maximum Cable Diameter (In.)	0.35
Maximum Cable Diameter (mm)	8.9
Minimum Cable Diameter (In.)	0.35
Minimum Cable Diameter (mm)	8.9
Maximum Operating Temperature (°C)	80
Maximum Operating Temperature (°F)	176
Minimum Operating Temperature (°C)	-40
Minimum Operating Temperature (°F)	-40
Number of Labels	1000
Overall Length (In.)	2.2
Overall Length (mm)	55.9
