Panduit S100X225V0TY | Pan-Code Self-Laminating Label
Description
Description

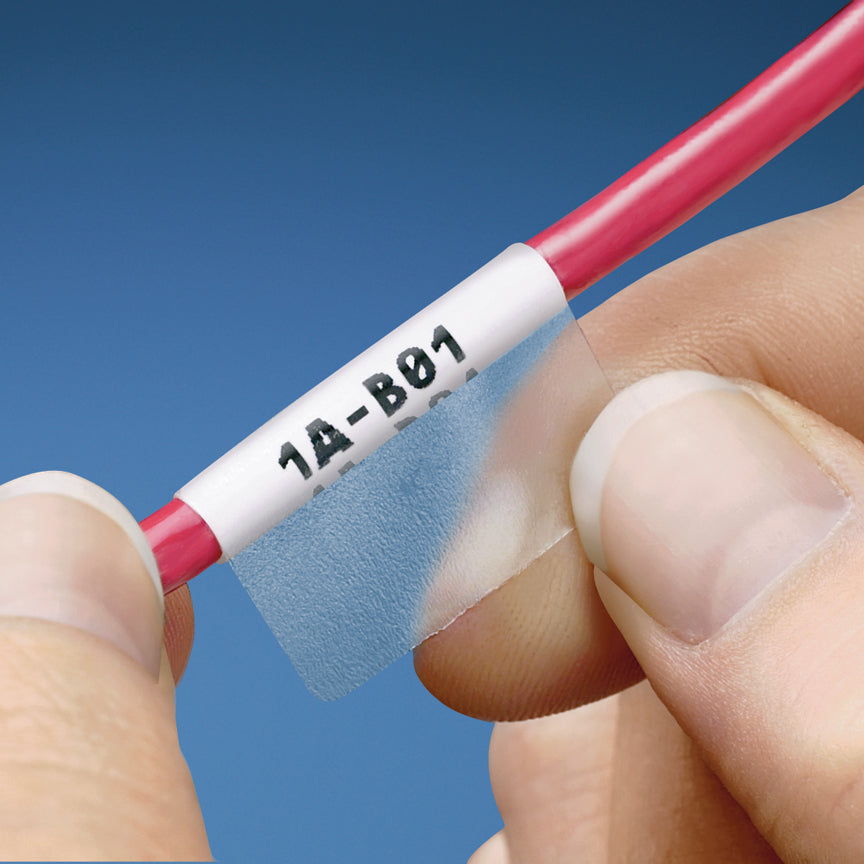

The thermal transfer self-laminating adhesive label is made of vinyl and is supplied on a roll with 4 labels per row. The label has a black colored print-on area 0.75" (19.1 mm) high for Category 6 FTP, Category 6a (10 Gig) UTP, Category 6e (10 Gig) FTP, 8 - 4 AWG wires, and a clear overlaminate. It is 1.0" wide and 2.25" long (25.4 x 57.2 mm) with a 3.0" (76.2 mm) core. It comes in packages of 5000.
Panduit Pan-Code Wire and Cable Label, Self-Laminating, 2-1/4 in Length, 1 in W, Black, Vinyl, For Use With: TDP43MY Thermal Transfer Desktop Printer
Panduit - S100X225V0TY - Features
- P1 label cassette contains an integrated memory device for automatic formatting, recall of last legend used and number of labels remaining in the cassette
- Fast loading P1 label cassette includes both label material and ribbon to make changing labels easy
- Self laminating adhesive labels for wire/cable identification include a colored print-on area and clear overlaminate
- Thin and conformable preferred material for most general wire/cable labeling
Specifications
Specifications
Panduit - S100X225V0TY - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | S100X225V0TY |
| Type | Adhesive |
| Label Types | Vinyl |
| UNSPSC Code | 55120000 |
| Product Type | Self-Laminating Label |
| Cable Type | Category 6 FTP;Category6A UTP;Category 6A FTP |
| Material | Vinyl |
| Printer Type | Thermal Transfer |
| Standards Met | RoHS Compliant, UL969 recognized, File # MH14979; cUL recognized, C22.2 No. 0.15-01, File # MH14979 |
| Sub Brand | Pan-Code |
| Compatible Wire Gauge (AWG) | 8-4 |
| Maximum Cable Diameter (In.) | 0.48 |
| Maximum Cable Diameter (mm) | 12.2 |
| Minimum Cable Diameter (In.) | 0.24 |
| Minimum Cable Diameter (mm) | 6.1 |
| Maximum Operating Temperature (°C) | 65 |
| Maximum Operating Temperature (°F) | 150 |
| Minimum Operating Temperature (°C) | -40 |
| Minimum Operating Temperature (°F) | -40 |
| Number of Labels | 5000 |
| Overall Length (In.) | 2.25 |
| Overall Length (mm) | 57.2 |
| Overall Width (In.) | 1 |
| Overall Width (mm) | 25.4 |
| Print-On Area Height (In.) | 0.75 |
| UPC | 07498368072 |
