Panduit S100X225VBTY | Self-Laminating Label
Description
Description

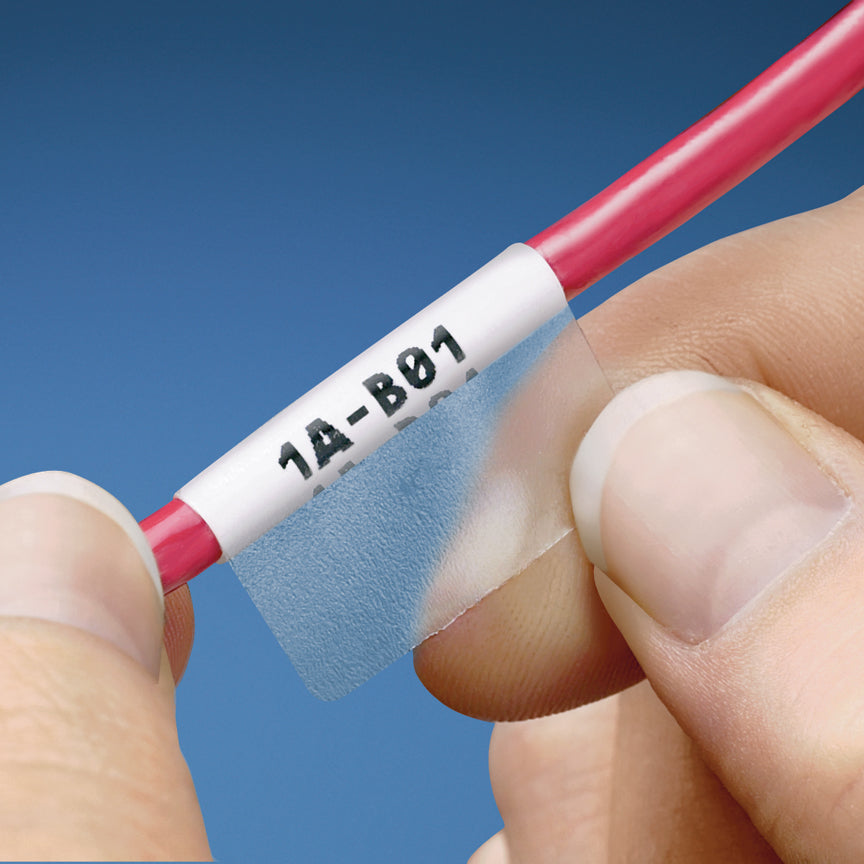

Upgrade your labeling with our self-laminating thermal transfer label, providing a balance of durability, protection, and affordability for your wire and cable needs.
The thermal transfer self-laminating adhesive label is made of vinyl and is supplied on a roll with 4 labels per row. The label has a blue colored print-on area 0.75" (19.1 mm) high for Category 6 FTP, Category 6a (10 Gig) UTP, Category 6e (10 Gig) FTP , 8 - 4 AWG wires, and a clear overlaminate. It is 1.0" wide and 2.25" long (25.4 x 57.15 mm) with a 3.0" (76.2 mm) core. It comes in packages of 5000.
Panduit Pan-Code Dot-Matrix Label, Self-Laminating, 2-1/4 in Length, 1 in W, BLANK Legend, Blue, Vinyl, For Use With: Cable/Wire Marking and Thermal Transfer Printer
Panduit - S100X225VBTY - Features
- Super-tack polyester has ultra aggressive adhesive
- Thermal transfer printable continuous tape format
- Use thermal transfer resin ribbon
Specifications
Specifications
Panduit - S100X225VBTY - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | S100X225VBTY |
| Type | Labels |
| Label Types | Vinyl |
| Size | 1" |
| UNSPSC Code | 55120000 |
| Note | For use with TDP printers |
| Label Dimensions (In.) | 2.25L x 1W |
| Product Type | Self-Laminating Label |
| Cable Type | Category 6 FTP;Category 6A UTP;Category 6A FTP |
| Color | Blue |
| Material | Vinyl |
| Printer Type | Thermal Transfer |
| Standards Met | RoHS Compliant, UL969 recognized, File # MH14979; cUL recognized, C22.2 No. 0.15-01, File # MH14979 |
| Compatible Wire Gauge (AWG) | 8-4 |
| Maximum Cable Diameter (In.) | 0.48 |
| Maximum Cable Diameter (mm) | 12.1 |
| Minimum Cable Diameter (In.) | 0.24 |
| Minimum Cable Diameter (mm) | 6.1 |
| Maximum Operating Temperature (°C) | 65 |
| Maximum Operating Temperature (°F) | 150 |
| Minimum Operating Temperature (°C) | -40 |
| Minimum Operating Temperature (°F) | -40 |
| Number of Labels | 5 |
| Overall Length (In.) | 2.25 |
| Overall Length (mm) | 57.2 |
| Overall Width (In.) | 1 |
| UPC | 07498368063 |
Panduit - S100X225VBTY - Environmental Information
| RoHS Status | ROHS3 Compliant |
|---|---|
| Moisture Sensitivity Level (MSL) | Not Applicable |
| ECCN | EAR99 |
| HTSUS | 3919.10.2055 |
