Panduit S100X225VDTY | S100X225VDTY Self-Laminating Label
Regular price
$1.46
Unit price
Brand: Panduit
|
SKU:
522321-EA
Regular price
$1.46
Unit price
Description
Description
Panduit S100X225VDTY | S100X225VDTY Self-Laminating Label

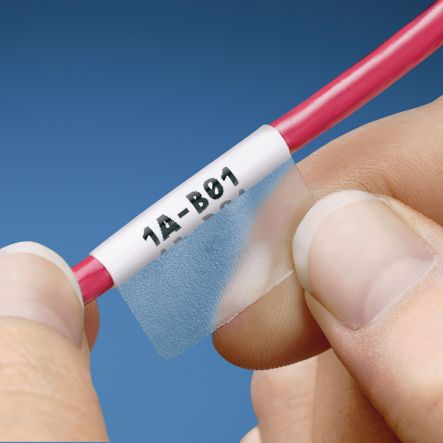

The thermal transfer self-laminating adhesive label is made of vinyl and is supplied on a roll with 4 labels per row. The label has a green colored print-on area 0.75" (19.1 mm) high for Category 6 FTP, Category 6a (10 Gig) UTP, Category 6e (10 Gig) FTP, 8 - 4 AWG wires, and a clear overlaminate. It is 1.0" wide and 2.25" long (25.4 x 57.2 mm) with a 3.0" (76.2 mm) core. It comes in packages of 5000.
Panduit S100X225VDTY - LABEL - SELF LAMINATING TRANSFER LABEL
Specifications
Specifications
Panduit - S100X225VDTY - Product Categories
- Signs, Labels & Identification
- Desktop Printer Labels
Panduit - S100X225VDTY - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | S100X225VDTY |
| Item Description | S100X225VDTY Self-Laminating Label |
| Note | For use with TDP printers |
| Product Type | Self-Laminating Label |
| Cable Type | Category 6 FTP;Category 6A UTP;Category 6A FTP |
| Color | Green |
| Material | Vinyl |
| Printer Type | Thermal Transfer |
| Standards Met | RoHS Compliant, UL969 recognized, File # MH14979; cUL recognized, C22.2 No. 0.15-01, File # MH14979 |
| Compatible Wire Gauge (AWG) | 8 – 4 |
| Maximum Cable Diameter (In.) | 0.48 |
| Maximum Cable Diameter (mm) | 12.1 |
| Minimum Cable Diameter (In.) | 0.24 |
| Minimum Cable Diameter (mm) | 6.1 |
| Maximum Operating Temperature (°C) | 65 |
| Maximum Operating Temperature (°F) | 150 |
| Minimum Operating Temperature (°C) | -40 |
| Minimum Operating Temperature (°F) | -40 |
| Number of Labels | 5 |
| Overall Length (In.) | 2.25 |
| Overall Length (mm) | 57.2 |
| Overall Width (In.) | 1 |
| Overall Width (mm) | 25.4 |
| Print-On Area Height (In.) | 0.75 |
| Print-On Area Height (mm) | 19 |
| Label Application | Cable & Wire Marking |
Panduit - S100X225VDTY - Package Information
| UPC | 07498368065 |
|---|---|
| Standard Package Quantity | 5000 |
| Standard Package Volume (cf) | 0.7051 |
| Standard Ctn. Quantity | 0 |
| Standard Ctn. Volume (cf) | 0.0000 |
