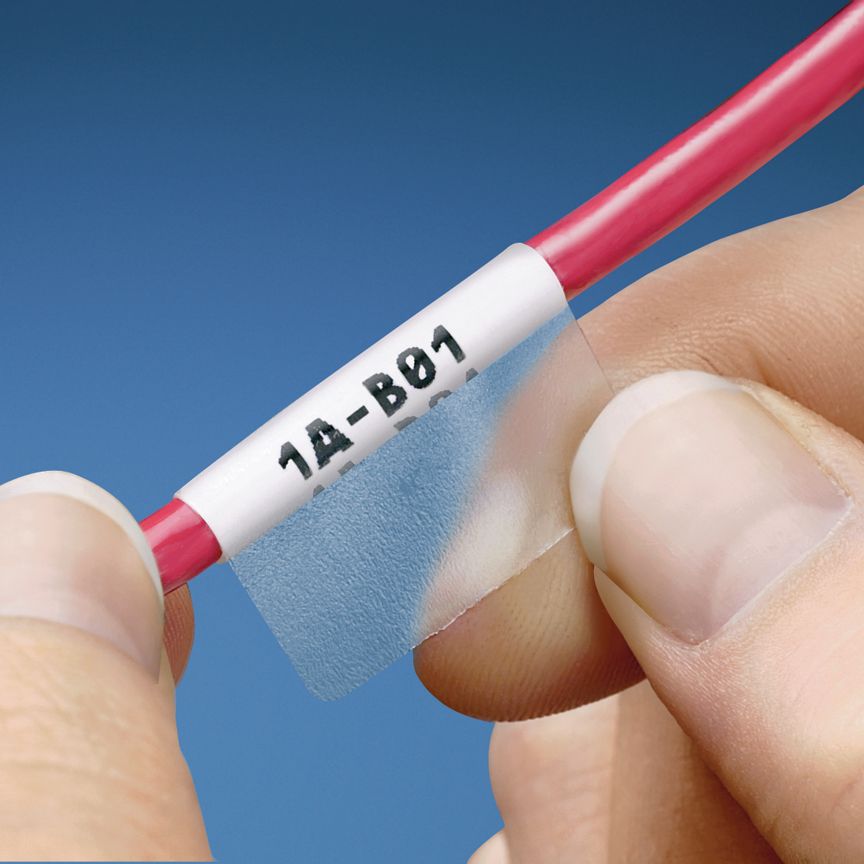

Panduit S100X225YDJ | Self-Laminating Label
Description
Description
Our polyester laser/inkjet self-laminating color label offers versatile, durable, and protected identification for various applications, compatible with both laser and inkjet printers.
The laser/ink jet self-laminating adhesive label is made of polyester and is supplied on 8.5 x 11" (203.2 x 292.1 mm) sheets with 8 labels per row and 32 labels per sheet. The label has a green colored print-on area 0.75" (19.1 mm) high for Category 6 FTP, Category 6a (10 Gig) UTP, Category 6a (10 Gig) FTP, 8 - 4 AWG wires, and a clear overlaminate. It is 1.0" wide and 2.25" long (25.4 x 57.2 mm). It comes in packages of 1000.
Panduit Pan-Code Wire and Cable Label, Self-Laminating, 2-1/4 in Length, 1 in Width, Clear/Green Legend/Background, Polyester, For Use With: Laser and Inkjet Printer
Panduit - S100X225YDJ - Features
- Include a colored print-on area and clear overlaminate to protect the legend for clear and durable identification
- Provide durability, high temperature resistance, dimensional stability do not stretch or easily tear and has high tack permanent adhesive
- For cat 6 FTP, cat 6A (10 Gig) UTP, cat 6A (10 Gig) FTP, 8 to 4 AWG wires and a clear overlaminate
- The label has a print-on area 3/4 in high
- Without imprint
- Labels can be printed in both laser and ink jet printers
- Self-laminating adhesive labels include a colored print-on area and clear overlaminate
Specifications
Specifications
Panduit - S100X225YDJ - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | S100X225YDJ |
| Type | Labels |
| Label Types | Polyester |
| Size | 1" |
| UNSPSC Code | 55120000 |
| Product Type | Self-Laminating Label |
| Cable Type | Category 6 FTP;Category 6A UTP;Category 6A FTP |
| Color | Green |
| Material | Polyester |
| Printer Type | Laser/Inkjet |
| Sheet Size | Letter |
| Standards Met | RoHS Compliant |
| Compatible Wire Gauge (AWG) | 8-4 |
| Maximum Cable Diameter (In.) | 0.48 |
| Maximum Cable Diameter (mm) | 12.2 |
| Minimum Cable Diameter (In.) | 0.24 |
| Minimum Cable Diameter (mm) | 6.1 |
| Maximum Operating Temperature (°C) | 107 |
| Maximum Operating Temperature (°F) | 225 |
| Minimum Operating Temperature (°C) | -54 |
| Minimum Operating Temperature (°F) | -65 |
| Number of Labels | 1 |
| Overall Length (In.) | 2.25 |
| Overall Length (mm) | 57.2 |
| Overall Width (In.) | 1 |
| Overall Width (mm) | 25.4 |
| UPC | 07498350324 |
Panduit - S100X225YDJ - Environmental Information
| RoHS Status | ROHS3 Compliant |
|---|---|
| Moisture Sensitivity Level (MSL) | Not Applicable |
| ECCN | EAR99 |
| HTSUS | 3919.10.2055 |
