Panduit S100X250VATY | S100X250VATY Self-Lam, Vinyl, White, 5000 Lbls, TT, 2.5"x1", 1" PO H
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit S100X250VATY | S100X250VATY Self-Lam, Vinyl, White, 5000 Lb...
Description
Description

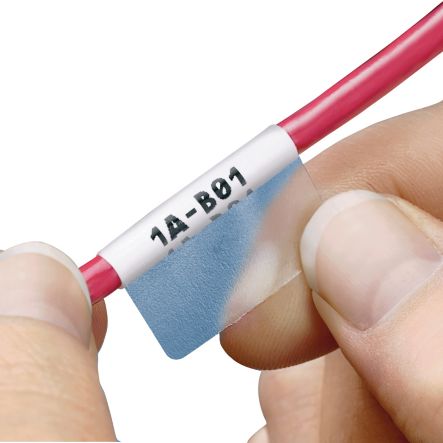

The S100X250VATY Thermal Transfer Self-Laminating Label includes a white print-on area and clear overlaminate to protect the legend for easy identification. It is sized specifically for wire and cable applications. Upgrade your cable coding system with improved organization and identification. Use with Easy-Mark Plus Labeling Software and TDP printers. Vinyl. 1" x 2.5" (25.4 mm x 63.5 mm). Color Clear/White. 5000 labels per package.
Panduit S100X250VATY Thermtrans, Self-lam Label, Vinyl, 1.00 W X 2.50 H, 1.00 Poa, Clear/white, 3 Core
Specifications
Specifications
Panduit - S100X250VATY - Product Categories
- Signs, Labels & Identification
- Desktop Printer Labels
Panduit - S100X250VATY - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | S100X250VATY |
| Item Description | S100X250VATY Self-Lam, Vinyl, White, 5000 Lbls, TT, 2.5"x1", 1" PO H |
| Note | For use with TDP printers. |
| Product Type | Self-Laminating Label |
| Color | White |
| Material | Vinyl |
| Printer Type | Thermal Transfer |
| Standards Met | RoHS Compliant, UL969 recognized, File # MH14979; cUL recognized, C22.2 No. 0.15-01, File # MH14979 |
| Compatible Wire Gauge (AWG) | 6 – 2 |
| Maximum Cable Diameter (In.) | 0.48 |
| Maximum Cable Diameter (mm) | 12.2 |
| Minimum Cable Diameter (In.) | 0.32 |
| Minimum Cable Diameter (mm) | 8.1 |
| Maximum Operating Temperature (°C) | 66 |
| Maximum Operating Temperature (°F) | 150 |
| Minimum Operating Temperature (°C) | -40 |
| Minimum Operating Temperature (°F) | -40 |
| Number of Labels | 5000 |
| Overall Length (In.) | 2.5 |
| Overall Length (mm) | 63.5 |
| Overall Width (In.) | 1 |
| Overall Width (mm) | 25.4 |
| Print-On Area Height (In.) | 1 |
| Print-On Area Height (mm) | 25.4 |
| Label Application | Cable & Wire Marking |
| Label Property | Flammability |
| UNSPSC Code | 55120000 |
Panduit - S100X250VATY - Package Information
| UPC | 07498309030 |
|---|---|
| Standard Package Quantity | 5000 |
| Standard Package Volume (cf) | 0.7051 |
| Standard Ctn. Quantity | 0 |
| Standard Ctn. Volume (cf) | 0.0000 |
