Panduit S100X400YAJ | S100X400YAJ Self-Lam, Polyester, White, 1000 ...
Description
Description

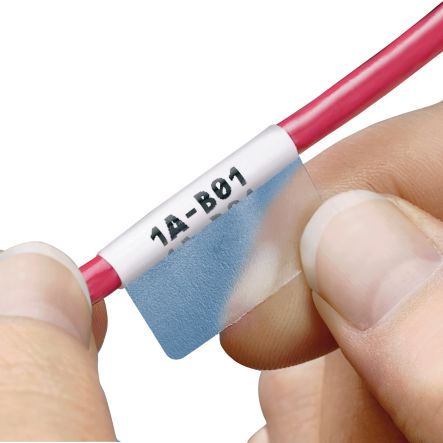

The S100X400YAJ Laser/Inkjet Self-Laminating Label includes a white print-on area and clear overlaminate to protect the legend for easy identification. It is sized specifically for wire and cable applications. Upgrade your cable coding system with improved organization and identification. Use with Easy-Mark Plus Labeling Software and laser/inkjet printers. Polyester. 1" x 4" (25.4 mm x 101.6 mm). Color Clear/White. 1000 labels per package.
Panduit - S100X400YAJ - Features
- White print-on area, polyester label for 2 - 1 AWG wire.
- Labels can be printed in both laser and ink jet printers
- Self-laminating adhesive labels include a colored print-on area and clear overlaminate
Specifications
Specifications
Panduit - S100X400YAJ - Product Categories
- Signs, Labels & Identification
- Desktop Printer Labels
Panduit - S100X400YAJ - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | S100X400YAJ |
| Item Description | S100X400YAJ Self-Lam, Polyester, White, 1000 Lbls, L/IJ, 4"x1", 1" PO H |
| Product Type | Self-Laminating Label |
| Color | White |
| Material | Polyester |
| Printer Type | Laser/Inkjet |
| Sheet Size | Letter |
| Standards Met | RoHS Compliant, UL recognized, UL969, File # MH14979. Meets ASTM E-595 for air space handling (white only). |
| Compatible Wire Gauge (AWG) | 2 – 1 |
| Maximum Cable Diameter (In.) | 0.95 |
| Maximum Cable Diameter (mm) | 24.1 |
| Minimum Cable Diameter (In.) | 0.32 |
| Minimum Cable Diameter (mm) | 8.1 |
| Maximum Operating Temperature (°C) | 107 |
| Maximum Operating Temperature (°F) | 225 |
| Minimum Operating Temperature (°C) | -54 |
| Minimum Operating Temperature (°F) | -65 |
| Number of Labels | 1000 |
| Overall Length (In.) | 4 |
| Overall Length (mm) | 101.6 |
| Overall Width (In.) | 1 |
| Overall Width (mm) | 25.4 |
| Print-On Area Height (In.) | 1 |
| Print-On Area Height (mm) | 25.4 |
| Label Application | Cable & Wire Marking |
| Label Property | Approved for Air Handling Spaces, Halogen Free |
Panduit - S100X400YAJ - Package Information
| UPC | 07498350592 |
|---|---|
| Standard Package Quantity | 1000 |
| Standard Package Volume (cf) | 0.1492 |
| Standard. Ctn. Quantity | 5000 |
| Standard. Ctn. Volume (cf) | 0.7461 |
Panduit - S100X400YAJ - Videos
| Video 1 | Click to View |
|---|
