Panduit S100X650VA1Y | Self-Laminating Label
Description
Description

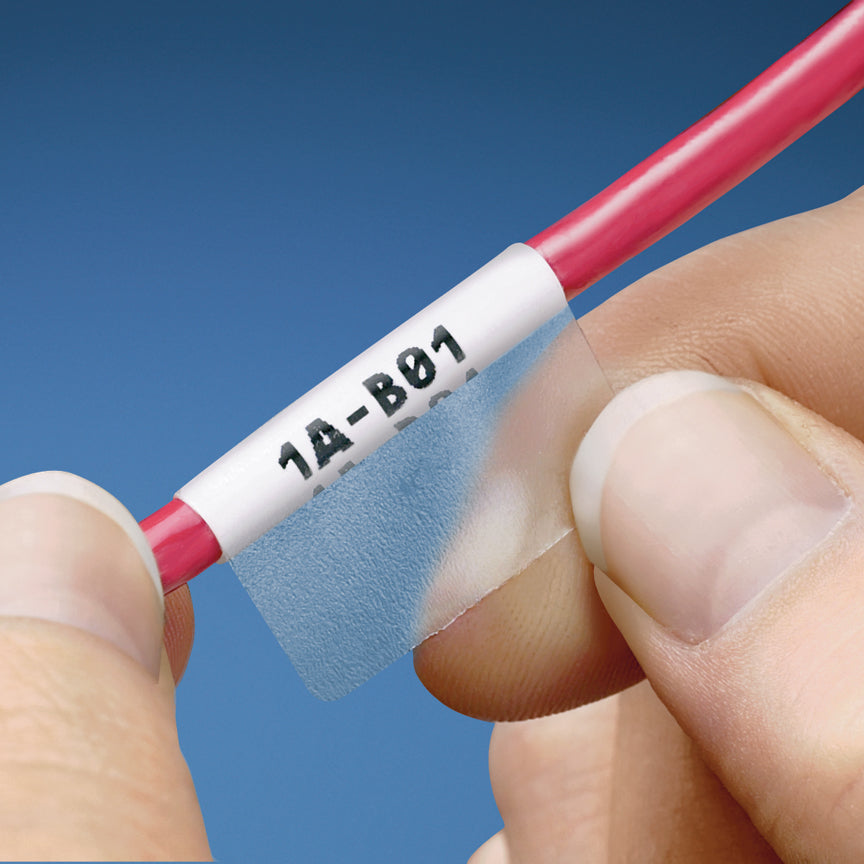

Our vinyl thermal transfer self-laminating 1" core label roll provides clear, durable, and protected wire and cable identification, perfect for compact labeling applications.
The thermal transfer self-laminating adhesive label is made of vinyl and is supplied on a roll with 4 labels per row. The label has a white colored print-on area 1.5" (38.1 mm) high for 1/0 - 250 MCM wires and a clear overlaminate. It is 1.0" wide and 6.5" long (25.4 x 165.1 mm) with a 1.0" (25.4 mm) core. It comes in packages of 250.
Panduit Pan-Code Label, Adhesive Blank Self-Laminating, 6-1/2 in Length, 1 in W, White, Vinyl, For Use With: Dot Matrix and Thermal Transfer Printer
Panduit - S100X650VA1Y - Features
- Includes a colored print-on area and clear overlaminate to protect the legend for clear and durable identification
- Labels are sized specifically for wire and cable applications
- Labels are Halogen-free
- Self-laminating adhesive labels supplied on rolls, include a colored print-on area and clear overlaminate
- Use with Panduit RMH4BL hybrid thermal transfer ribbon
Specifications
Specifications
Panduit - S100X650VA1Y - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | S100X650VA1Y |
| Type | Labels |
| Label Types | Vinyl |
| Size | 6" |
| UNSPSC Code | 55120000 |
| Note | For use with TDP printers. |
| Label Dimensions (In.) | 6.5L x 1W |
| Product Type | Self-Laminating Label |
| Color | White |
| Material | Vinyl |
| Printer Type | Thermal Transfer |
| Standards Met | RoHS Compliant, UL969 recognized, File # MH14979; cUL recognized, C22.2 No. 0.15-01, File # MH14979 |
| Compatible Wire Gauge (AWG) | 1/0-250 MCM |
| Maximum Cable Diameter (In.) | 1.59 |
| Maximum Cable Diameter (mm) | 40.4 |
| Minimum Cable Diameter (In.) | 0.48 |
| Minimum Cable Diameter (mm) | 12.1 |
| Maximum Operating Temperature (°C) | 66 |
| Maximum Operating Temperature (°F) | 150 |
| Minimum Operating Temperature (°C) | -40 |
| Minimum Operating Temperature (°F) | -40 |
| Number of Labels | 250 |
| Overall Length (In.) | 6.5 |
| Overall Length (mm) | 165.1 |
| Overall Width (In.) | 1 |
| Overall Width (mm) | 25.4 |
| UPC | 07498343972 |
