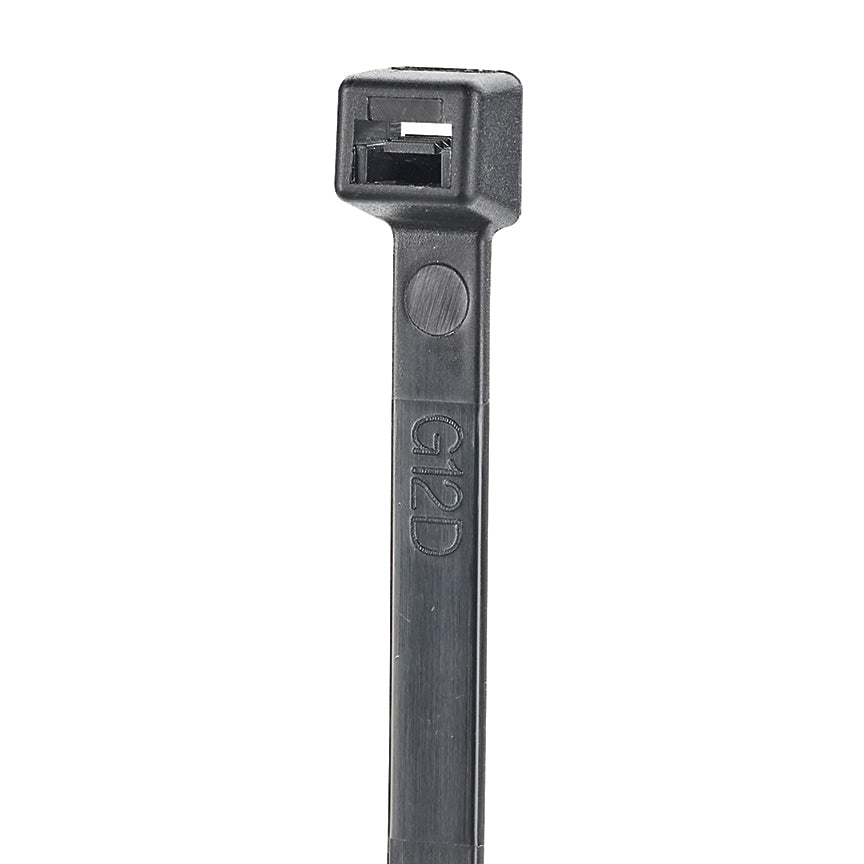

Panduit S12-40-M0 | StrongHold™ Cable Tie
Panduit StrongHold Cable Tie, Curved Tip General Purpose Contractor Intermediate Plenum, 11.81 in Length, 0.14 in W, 0.05 in Thickness, 2.99 in Bundle Dia, Lock Mechanism: Locking, 40 lb Tensile, -40 to 185 deg F, Nylon 6.6, Black
Our cable tie offers contractors an economical cable tie option for commercial construction and general-purpose applications. It's designed to resist weathering, fire, and abrasion.
Panduit - S12-40-M0 - Features
- The two pieces design incorporates a stainless steel locking barb which provides consistent performance, reliability and infinite adjustability through entire bundle range
- High loop tensile strength exceeds industry standards and the patented low thread force design reduces operator fatigue and improves productivity
- Dome-Top head having smooth, round edges is easy for installers to handle
- Low thread force reduces installer fatigue while increases productivity
- Ribbed and stippled strap body prevents axial and lateral movement
- Exclusively designed finger grip assures positive grip during threading of tie
- Curved tip is easy to pickup from flat surfaces and allows faster initial threading to speed installation
- Greater resistance to damage caused by ultraviolet light
- UV-resistant
Specifications
Specifications
Panduit - S12-40-M0 - Specifications
| Material Description | Nylon 6.6 (UV-Resistant) |
|---|---|
| Product Type | Cable Tie |
| Sub Brand | StrongHold™ |
| Color | Black |
| Environment | Plenum |
| Material | Nylon 6.6 |
| Resistance Properties | UV-Resistant |
| Overall Length (In.) | 11.8 |
| Overall Length (mm) | 300 |
| Body Width (In.) | 0.14 |
| Body Width (mm) | 3.6 |
| Body Thickness (In.) | 0.045 |
| Body Thickness (mm) | 1.2 |
| Maximum Bundle Diameter (In.) | 2.99 |
| Maximum Bundle Diameter (mm) | 76 |
| Minimum Bundle Diameter (In.) | 0.08 |
| Minimum Bundle Diameter (mm) | 2 |
| Minimum Loop Tensile Strength (N) | 178 |
| Minimum Loop Tensile Strength (lb) | 40 |
| Maximum Operating Temperature (°C) | 85 |
| Maximum Operating Temperature (°F) | 185 |
| UPC | 61305634719 |
Panduit - S12-40-M0 - Package Information
| UPC | 61305634719 |
|---|---|
| Standard Packaging Quantity | 1000 |
| Standard Packaging Volume (cf) | 0.1529 |
| Standard Ctn. Quantity | 10000 |
| Standard Ctn. Volume (cf) | 1.5289 |
