Panduit S150X400VATY | Self-Lam, Vinyl, White, 2500 Lbls, TT, 4&quo...
Description
Description
Our vinyl thermal transfer self-laminating label provides clear, durable, and protected wire and cable identification that's designed for efficient, high-volume labeling.

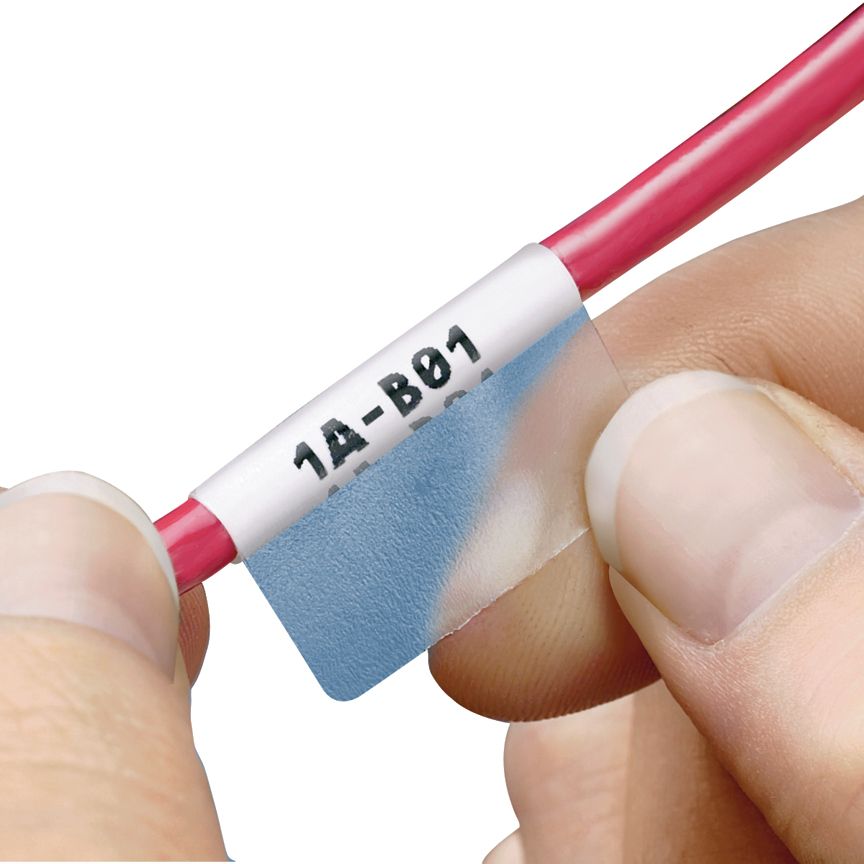

The S150X400VATY Thermal Transfer Self-Laminating Label includes a white print-on area and clear overlaminate to protect the legend for easy identification. It is sized specifically for wire and cable applications. Upgrade your cable coding system with improved organization and identification. Use with Easy-Mark Plus Labeling Software and TDP printers. Vinyl. 1.5" x 4" (38.1 mm x 101.6 mm). Color Clear/White. 2500 labels per package.
Panduit Pan-Code Label, Adhesive Blank Self-Laminating, 4 in Length, 1-1/2 in W, White, Vinyl, For Use With: Dot Matrix and Thermal Transfer Printer
Panduit - S150X400VATY - Features
- Super-tack polyester has ultra aggressive adhesive
- Thermal transfer printable continuous tape format
- Use thermal transfer resin ribbon
Specifications
Specifications
Panduit - S150X400VATY - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | S150X400VATY |
| Type | Labels |
| Label Types | Vinyl |
| Size | 1 1/2" |
| UNSPSC Code | 55120000 |
| Note | For use with TDP printers. |
| Label Dimensions (In.) | 4L x 1.5W |
| Product Type | Self-Laminating Label |
| Color | White |
| Material | Vinyl |
| Printer Type | Thermal Transfer |
| Standards Met | RoHS Compliant, UL969 recognized, File # MH14979; cUL recognized, C22.2 No. 0.15-01, File # MH14979 |
| Compatible Wire Gauge (AWG) | 2-1 |
| Maximum Cable Diameter (In.) | 0.95 |
| Maximum Cable Diameter (mm) | 24.3 |
| Minimum Cable Diameter (In.) | 0.32 |
| Minimum Cable Diameter (mm) | 8.1 |
| Maximum Operating Temperature (°C) | 66 |
| Maximum Operating Temperature (°F) | 150 |
| Minimum Operating Temperature (°C) | -40 |
| Minimum Operating Temperature (°F) | -40 |
| Number of Labels | 2500 |
| Overall Length (In.) | 4 |
| Overall Length (mm) | 101.6 |
| Overall Width (In.) | 1.5 |
| Overall Width (mm) | 38.1 |
| UPC | 07498368393 |
Panduit - S150X400VATY - Environmental Information
| RoHS Status | ROHS3 Compliant |
|---|---|
| Moisture Sensitivity Level (MSL) | Not Applicable |
| ECCN | EAR99 |
| HTSUS | 3919.10.2055 |
