Brand: Panduit
|
SKU:
920013-EA
Panduit S2/0-76R-C | TubRingTerm,NonIns,2/0AWG,7/16StudPK100
Regular price
$6.29
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit S2/0-76R-C | TubRingTerm,NonIns,2/0AWG,7/16StudPK100
Regular price
$6.29
Unit price
Description
Description
Panduit S2/0-76R-C | TubRingTerm,NonIns,2/0AWG,7/16StudPK100

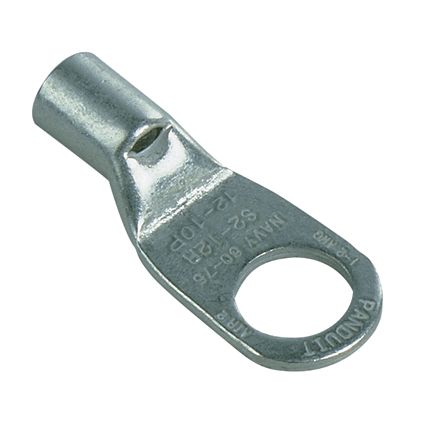

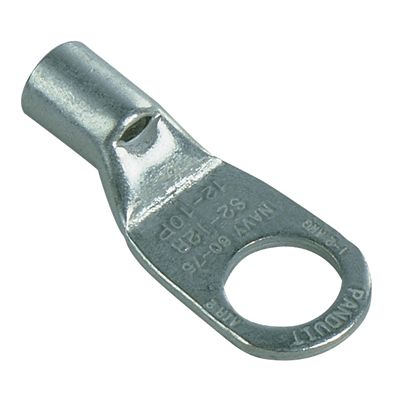

Tubular Ring Terminal, 2/0 AWG, 7/16 stud size, non-insulated, bulk package.
Panduit S2/0-76R-C - TERMINAL-RING - TUBULAR RING TERMINAL, 2/0 AWG
Specifications
Specifications
Panduit - S2/0-76R-C - Product Categories
- Wire Termination
- Mechanical & Compression Lugs & Splices
Panduit - S2/0-76R-C - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | S2/0-76R-C |
| Item Description | TubRingTerm,NonIns,2/0AWG,7/16StudPK100 |
| Maximum Wire Size (AWG) | 2/0 AWG |
| Product Type | Tubular Ring Terminal |
| Base Material | Copper |
| Copper Code Conductor Size (AWG) | 2/0 |
| Sub Brand | Pan-Lug |
| Stud Hole Size (In.) | 7/16 |
| Barrel Type | Seamless Tubular |
| Barrel Length (In.) | 0.66 |
| Barrel Length (mm) | 16.8 |
| Tongue Type | Standard |
| Tongue Width (In.) | 0.85 |
| Tongue Width (mm) | 21.6 |
| Tongue Angle | Straight |
| Tongue Thickness (In.) | 0.13 |
| Tongue Thickness (mm) | 3.3 |
| Overall Length (In.) | 2.1 |
| Overall Length (mm) | 53.3 |
| Overall Width (In.) | 0.85 |
| Finish/Coating | Tin Plated |
| Standards Met | UL Listed and CSA certified for application up to 35 KV |
| CSA Temperature Rating (°C) | 90 |
| UL Temperature Rating (°C) | 90 |
| Maximum Voltage (kV) | 35000 |
| Color Code | Black |
| Panduit Die Index Number | P45 |
| Wire Strip Length (In.) | 11/16 |
| Wire Strip Length (mm) | 17.4625 |
| Part Features | Seamless tubular barrel provides a consistent high performance quality crimp, Round double thick toungue for reliable power applications, Barrel of terminal internally beveled to provide quick and easy wire insertion, Inspection window allows visual inspection of proper wire insertion. |
Panduit - S2/0-76R-C - Package Information
| UPC | 07498360040 |
|---|---|
| Standard Package Quantity | 100 |
| Standard Package Volume (cf) | 0.1161 |
| Standard Ctn. Quantity | 0 |
| Standard Ctn. Volume (cf) | 0.0000 |
