Brand: Panduit
|
SKU:
969286

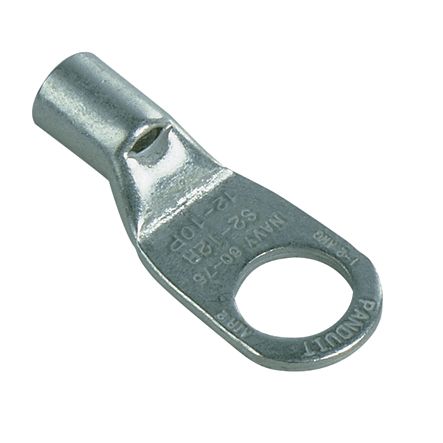

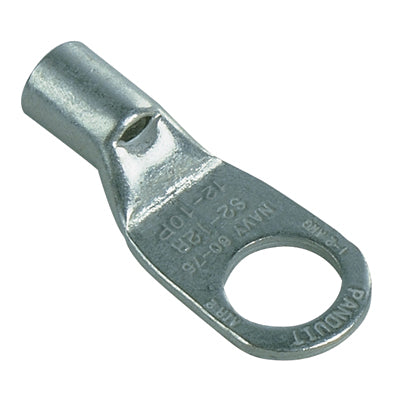

Panduit S2-38R-T | Loose Piece Ring Terminal | UPC - 07498360031
Regular price
$2,232.33
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit S2-38R-T | Loose Piece Ring Terminal | UPC - 07498360031
Regular price
$2,232.33
Unit price
Description
Description
Panduit Ring Terminal, Type S-RT Loose Piece Non-Insulated, Stranded Conductor, 2 to 1 AWG Conductor, 3/8 in Stud, 1.7 in Length, Beveled/Seamless Tubular Barrel, 0.36 in ID x 0.47 in OD x 0.59 in L Barrel, Ring Straight Tongue, 0.7 in W x 0.11 in THK Tongue, 35 kV, Specifications: 5/8 in L Wire Strip, 5/8 in Mounting Hole Size, 90 deg C, Copper, Tin Plated, Metallic
Features + Benefits
- Seamless tubular barrel provides a consistent high performance quality crimp
- Round double thick tongue for reliable power applications
- Barrel of terminal internally beveled to provide quick and easy wire insertion
- Inspection window allows visual inspection of proper wire insertion
- Consult cable manufacturer for voltage stress relief instructions with applications greater than 2000 V
Panduit S2-38R-T | Loose Piece Ring Terminal | UPC - 07498360031 Key Specs
| Maximum Wire Size (AWG) | 1 - 2 AWG |
| Product Type | Loose Piece Ring Terminal |
| Base Material | Copper |
| Stud Hole Size (In.) | 3/8 |
| Tongue Thickness (In.) | 0.11 |
| Tongue Thickness (mm) | 2.8 |
| Tongue Width (In.) | 0.7 |
| Tongue Width (mm) | 17.8 |
| Overall Length (In.) | 1.7 |
| Overall Length (mm) | 43.2 |
| Overall Width (In.) | 0.7 |
| Overall Width (mm) | 17.8 |
| Barrel Type | Seamless Tubular |
| Barrel Length (In.) | 0.59 |
| Barrel Length (mm) | 15 |
| Insulation Material | Non-Insulated |
| Finish/Coating | Tinned |
| Sub Brand | Pan-Lug |
| Wire Strip Length (In.) | 5/8 |
| Wire Strip Length (mm) | 15.875 |
Panduit S2-38R-T | Loose Piece Ring Terminal | UPC - 07498360031 Data Sheets
| Selection Guides | Terminal Tools Selection Guide | Download and View |
| Part Drawings | TUBULAR TERMINALS C41178 | Download and View |
| Installation Documents | Copper Compression Connector Installation Instructions | Download and View |
Panduit S2-38R-T | Loose Piece Ring Terminal | UPC - 07498360031 Environmental Information
| Panduit's RoHS Statement | Download and View |
