Panduit S200X400FAL | Pan-Code Self-Laminating Label
Regular price
$122.66
Unit price
Brand: Panduit
|
SKU:
10045551
Regular price
$122.66
Unit price
Description
Description

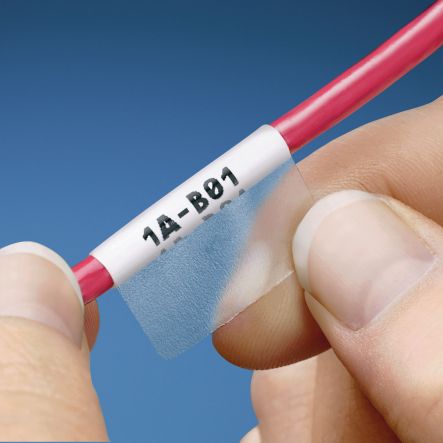

Panduit S200X400FAL | Pan-Code Self-Laminating Label
Panduit S200X400FAL | LABEL | LASER,PLYFIN,SELF-LAMLBL,2 feetWX4
The laser self-laminating adhesive label is made of polyolefin is supplied on 8.5 x 11" (203.2 x 292.1 mm) sheetswith 4 labels per row and 8 labels per sheet. The label has a white colored print-on area 1.0" (25.4 mm) high for 2-1 AWG wire and a clear overlaminate. It is 2.0" wide and 4.0" long (50.8 x 101.6 mm). These labels come in packages of 500.
Specifications
Specifications
Panduit - S200X400FAL - Product Categories
- Signs, Labels & Identification
- Desktop Printer Labels
Panduit - S200X400FAL - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | S200X400FAL |
| Item Description | Pan-Code Self-Laminating Label |
| Product Type | Self-Laminating Label |
| Color | White |
| Material | Polyolefin |
| Printer Type | Laser |
| Sheet Size | Letter |
| Standards Met | RoHS Compliant, UL969, File # MH 14979 |
| Sub Brand | Pan-Code |
| Compatible Wire Gauge (AWG) | 2 – 1 |
| Maximum Cable Diameter (In.) | 0.95 |
| Maximum Cable Diameter (mm) | 24.1 |
| Minimum Cable Diameter (In.) | 0.32 |
| Minimum Cable Diameter (mm) | 8.1 |
| Maximum Operating Temperature (°C) | 80 |
| Maximum Operating Temperature (°F) | 176 |
| Minimum Operating Temperature (°C) | -40 |
| Minimum Operating Temperature (°F) | -40 |
| Number of Labels | 500 |
| Overall Length (In.) | 4 |
| Overall Length (mm) | 101.6 |
| Overall Width (In.) | 2 |
| Overall Width (mm) | 50.8 |
| Print-On Area Height (In.) | 1 |
| Print-On Area Height (mm) | 25.4 |
Panduit - S200X400FAL - Package Information
| UPC | 07498361672 |
|---|---|
| Standard Package Quantity | 500 |
| Standard Package Volume (cf) | 0.1488 |
| Standard Ctn. Quantity | 2500 |
| Standard Ctn. Volume (cf) | 0.7439 |
