Description
Description

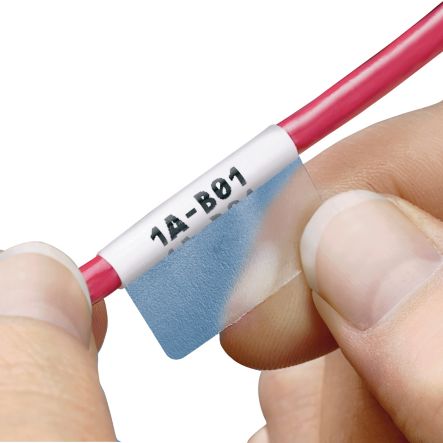

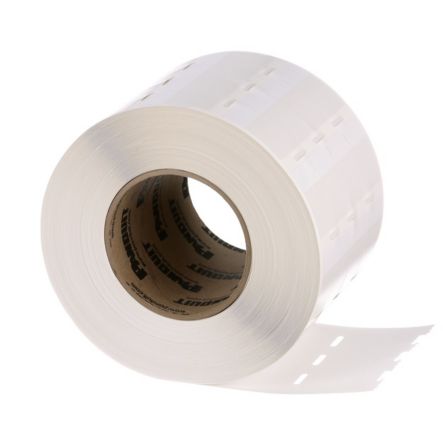

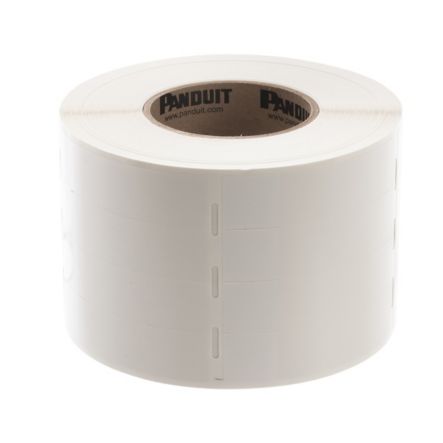

The S200X400VATY Thermal Transfer Self-Laminating Label includes a white print-on area and clear overlaminate to protect the legend for easy identification. It is sized specifically for wire and cable applications. Upgrade your cable coding system with improved organization and identification. Use with Easy-Mark Plus Labeling Software and TDP printers. Vinyl. 2" x 4" (50.8 mm x 101.6 mm). Color Clear/White. 1000 labels per package.
Panduit - S200X400VATY - Features
- White print-on area, vinyl label for 2 - 1 AWG wires.
- Self-laminating adhesive labels supplied on rolls, include a colored print-on area and clear overlaminate
- Use with Panduit RMH4BL hybrid thermal transfer ribbon
Specifications
Specifications
Panduit - S200X400VATY - Product Categories
- Signs, Labels & Identification
- Desktop Printer Labels
Panduit - S200X400VATY - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | S200X400VATY |
| Item Description | S200X400Vaty Self-Lam, Vinyl, White, 1000 Lbls, Tt, 4"X2", 1" Po H |
| Note | For use with TDP printers. |
| Product Type | Self-Laminating Label |
| Color | White |
| Material | Vinyl |
| Printer Type | Thermal Transfer |
| Standards Met | RoHS Compliant, UL969 recognized, File # MH14979; cUL recognized, C22.2 No. 0.15-01, File # MH14979 |
| Compatible Wire Gauge (AWG) | 2 – 1 |
| Maximum Cable Diameter (In.) | 0.95 |
| Maximum Cable Diameter (mm) | 24.3 |
| Minimum Cable Diameter (In.) | 0.32 |
| Minimum Cable Diameter (mm) | 8.1 |
| Maximum Operating Temperature (°C) | 66 |
| Maximum Operating Temperature (°F) | 150 |
| Minimum Operating Temperature (°C) | -40 |
| Minimum Operating Temperature (°F) | -40 |
| Number of Labels | 1000 |
| Overall Length (In.) | 4 |
| Overall Length (mm) | 101.6 |
| Overall Width (In.) | 2 |
| Overall Width (mm) | 50.8 |
| Print-On Area Height (In.) | 1 |
| Print-On Area Height (mm) | 25.4 |
| Label Application | Cable & Wire Marking |
| Label Property | Flammability |
Panduit - S200X400VATY - Package Information
| UPC | 07498343989 |
|---|---|
| Standard Package Quantity | 1000 |
| Standard Package Volume (cf) | 0.1100 |
| Standard Ctn. Quantity | 0 |
| Standard Ctn. Volume (cf) | 0.0000 |
