Panduit S200X650VA1Y | Self-Lam, Vinyl, White, 250 Lbls, TT, 6.5&qu...
Description
Description

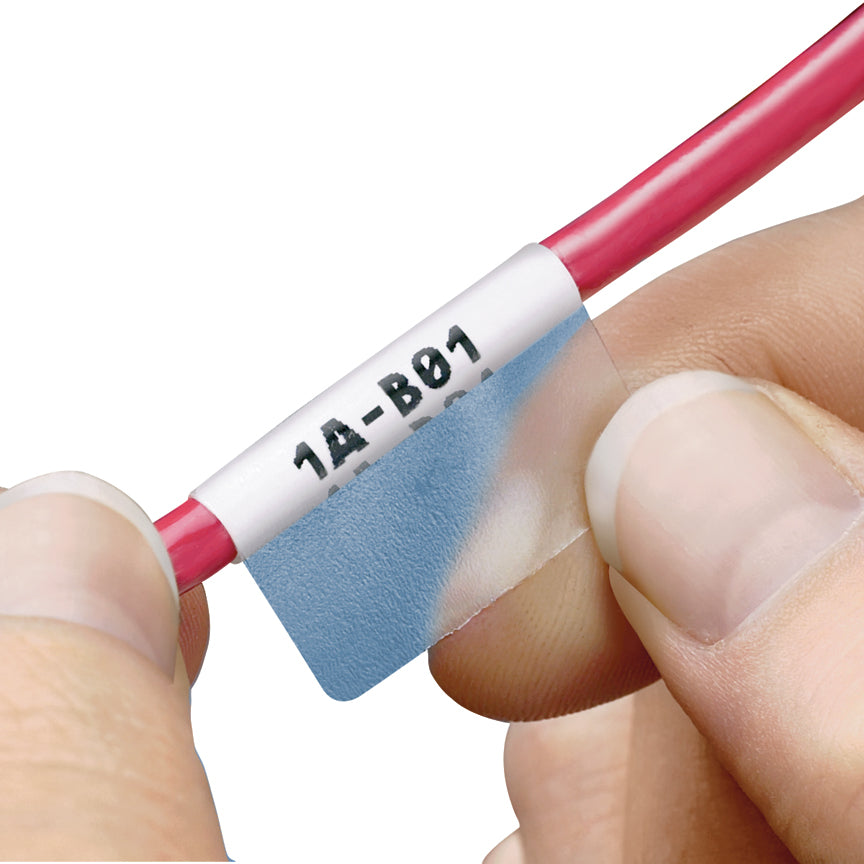

Our vinyl thermal transfer self-laminating 1" core label roll provides clear, durable, and protected wire and cable identification, perfect for compact labeling applications.
The S200X650VA1Y Thermal Transfer Self-Laminating Label includes a white print-on area and clear overlaminate to protect the legend for easy identification. It is sized specifically for wire and cable applications. Upgrade your cable coding system with improved organization and identification. FUse with Easy-Mark Plus Labeling Software and TDP printers. Vinyl. 2" x 6.5" (50.8 mm x 165.1 mm). Color Clear/White. 250 labels per package.
Panduit Pan-Code Dot-Matrix Label, Thermal Transfer Self-Laminating, 6-1/2 in Length, 2 in W, BLANK Legend, White, Vinyl, For Use With: Cable/Wire Marking and Thermal Transfer Printer
Panduit - S200X650VA1Y - Features
- Includes a colored print-on area and clear overlaminate to protect the legend for clear and durable identification
- Sized specifically for wire and cable applications
- Thin and conformable preferred material for most general wire/cable labeling
- Use thermal transfer hybrid ribbon
- Self-laminating adhesive labels supplied on rolls, include a colored print-on area and clear overlaminate
- Use with Panduit RMH4BL hybrid thermal transfer ribbon
Specifications
Specifications
Panduit - S200X650VA1Y - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | S200X650VA1Y |
| Type | Labels |
| Label Types | Vinyl |
| Size | 6" |
| UNSPSC Code | 55120000 |
| Note | For use with TDP printers. |
| Label Dimensions (In.) | 6.5L x 2W |
| Product Type | Self-Laminating Label |
| Color | White |
| Material | Vinyl |
| Printer Type | Thermal Transfer |
| Standards Met | RoHS Compliant, UL969 recognized, File # MH14979; cUL recognized, C22.2 No. 0.15-01, File # MH14979 |
| Compatible Wire Gauge (AWG) | 1/0-250 MCM |
| Maximum Cable Diameter (In.) | 1.59 |
| Maximum Cable Diameter (mm) | 40.4 |
| Minimum Cable Diameter (In.) | 0.48 |
| Minimum Cable Diameter (mm) | 12.2 |
| Maximum Operating Temperature (°C) | 66 |
| Maximum Operating Temperature (°F) | 150 |
| Minimum Operating Temperature (°C) | -40 |
| Minimum Operating Temperature (°F) | -40 |
| Number of Labels | 250 |
| Overall Length (In.) | 6.5 |
| Overall Length (mm) | 165.1 |
| Overall Width (In.) | 2 |
| Overall Width (mm) | 50.8 |
| UPC | 07498343990 |
