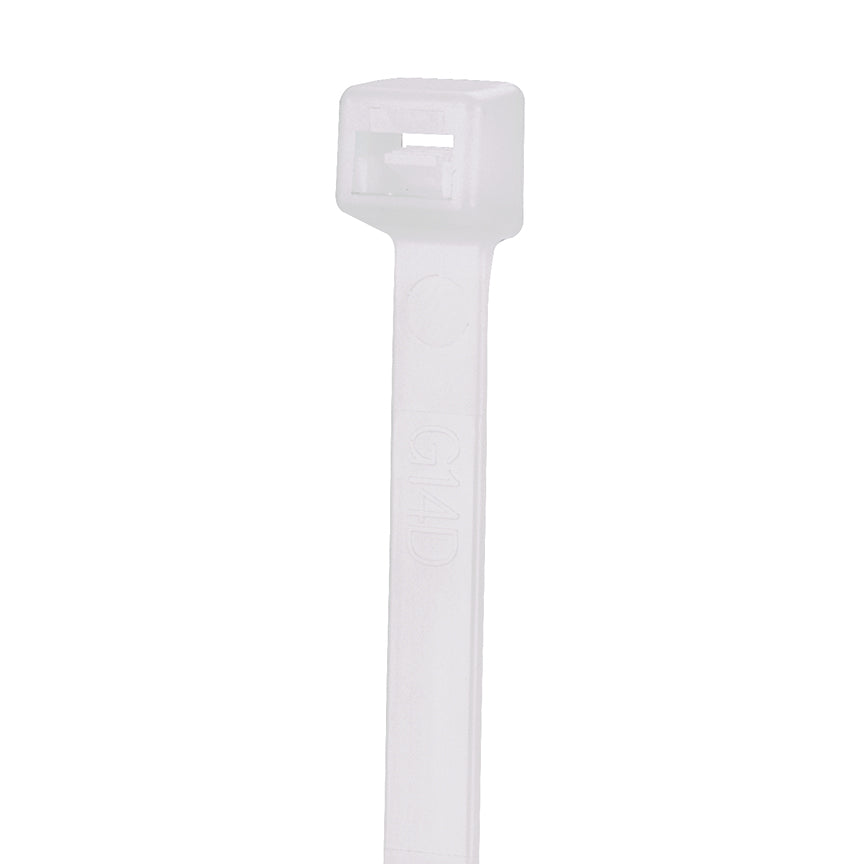

Panduit S24-175-L | StrongHold™ Cable Tie
Description
Description
Panduit StrongHold Cable Tie, Heavy Plenum Rated, 24.02 in Length, 0.35 in Width, 0.07 in Thickness, 7.36 in Bundle Dia, Locking, 175 lb Tensile, -40 to 185 deg F, Nylon 6.6, Natural
Our cable tie offers contractors an economical cable tie option for commercial construction and general-purpose applications. It's designed to resist weathering, fire, and abrasion.
The S24-175-L StrongHold Cable Ties offer contrators an economical cable tie option for commercial construction and general-purpose applications. Heavy, 24.02" (610mm) length, made of Nylon 6.6, AH-2 Plenum rated, are natural in color and come in packa ges of 50.
Specifications
Specifications
Panduit - S24-175-L - Specifications
| Type | Cables Ties And Accessories |
|---|---|
| UNSPSC Code | 39121703 |
| Technical Information | Culus Listed, CE Compliant, UL 62275 (Type 2, 21), RoHS Complaint |
| Material Description | Nylon 6.6 () |
| Product Type | Cable Tie |
| Sub Brand | StrongHold™ |
| Color | Natural |
| Environment | Plenum |
| Material | Nylon 6.6 |
| Overall Length (In.) | 24.02 |
| Overall Length (mm) | 610 |
| Body Width (In.) | 0.35 |
| Body Width (mm) | 9 |
| Body Thickness (In.) | 0.071 |
| Body Thickness (mm) | 1.8 |
| Maximum Bundle Diameter (In.) | 7.36 |
| Maximum Bundle Diameter (mm) | 187 |
| Minimum Bundle Diameter (In.) | 0.28 |
| Minimum Bundle Diameter (mm) | 7 |
| Minimum Loop Tensile Strength (N) | 778 |
| Minimum Loop Tensile Strength (lb) | 175 |
| Maximum Operating Temperature (°C) | 85 |
| Maximum Operating Temperature (°F) | 185 |
| Minimum Operating Temperature (°C) | -40 |
| UPC | 61305625829 |
Panduit - S24-175-L - Package Information
| UPC | 61305625829 |
|---|---|
| Standard Packaging Quantity | 50 |
| Standard Packaging Volume (cf) | 0.1237 |
| Standard Ctn. Quantity | 500 |
| Standard Ctn. Volume (cf) | 1.2370 |
