Brand: Panduit
|
SKU:
9998141

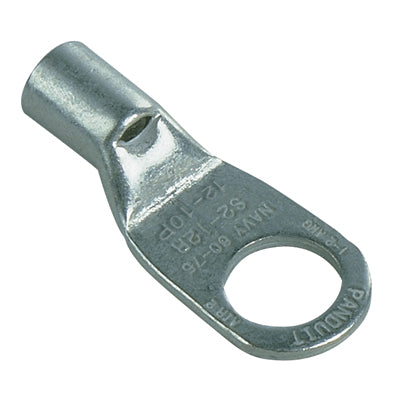

Panduit S250-56R-5 | Loose Piece Ring Terminal | UPC - 07498359909
Regular price
$48.01
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit S250-56R-5 | Loose Piece Ring Terminal | UPC - 07498359909
Regular price
$48.01
Unit price
Description
Description
Panduit Ring Terminal, Type S-R Loose Piece Non-Insulated, Stranded Conductor, 250 kcmil Conductor, 5/16 in Stud, 2-1/2 in Length, Beveled/Seamless Tubular Barrel, 0.63 in ID x 0.77 in OD x 1.01 in L Barrel, Ring Straight Tongue, 1.17 in W x 0.14 in THK Tongue, 35 kV, Specifications: 1 to 1/16 in L Wire Strip, 1-1/16 in Mounting Hole Size, 90 deg C, Copper, Tin Plated, Metallic
- Seamless tubular barrel provides a consistent high performance quality crimp
- Round double thick tongue for reliable power applications
- Barrel of terminal internally beveled to provide quick and easy wire insertion
- Inspection window allows visual inspection of proper wire insertion
- Consult cable manufacturer for voltage stress relief instructions with applications greater than 2000 V
Panduit Panduit S250-56R-5 | Loose Piece Ring Terminal | UPC - 07498359909 Key Specs
| Maximum Wire Size (AWG) | 250 kcmil |
| Product Type | Loose Piece Ring Terminal |
| Base Material | Copper |
| Stud Hole Size (In.) | 5/16 |
| Tongue Thickness (In.) | 0.14 |
| Tongue Thickness (mm) | 3.6 |
| Tongue Width (In.) | 1.17 |
| Tongue Width (mm) | 29.7 |
| Overall Length (In.) | 2.5 |
| Overall Length (mm) | 63.5 |
| Overall Width (In.) | 1.17 |
| Overall Width (mm) | 29718 |
| Barrel Type | Seamless Tubular |
| Barrel Length (In.) | 1.01 |
| Barrel Length (mm) | 25.7 |
| Insulation Material | Non-Insulated |
| Finish/Coating | Tinned |
| Sub Brand | Pan-Lug |
| Wire Strip Length (In.) | 1.0625 |
| Wire Strip Length (mm) | 26.9875 |
Panduit Panduit S250-56R-5 | Loose Piece Ring Terminal | UPC - 07498359909 Environmental Information
| Panduit's RoHS Statement | Download and View |
