Panduit S4-38R-T | Pan-Lug Loose Piece Ring Terminal
Regular price
$296.25
Unit price
Brand: Panduit
|
SKU:
PAN-S4-38R-T
Regular price
$296.25
Unit price
Shipping calculated at checkout.
Description
Description

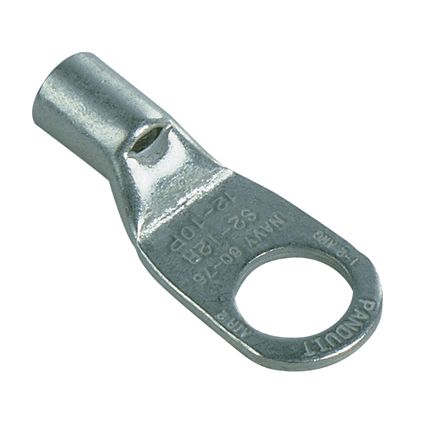

Panduit S4-38R-T | Pan-Lug Loose Piece Ring Terminal
Create a secure, high-performing connection with our tubular ring terminal, easy-to-insert design, visible connection quality, and a strong double-thick tongue.
Panduit - S4-38R-T - Features
- Seamless tubular barrel provides a consistent high performance quality crimp
- Round double thick tongue for reliable power applications
- Barrel of terminal internally beveled to provide quick and easy wire insertion
- Inspection window allows visual inspection of proper wire insertion
- UL and CSA rated up to 2000 V per UL 486A
- Maximum recommended operating temperature 302F (150C)
Specifications
Specifications
Panduit - S4-38R-T - Specifications
| Stud Hole Size (In.) | 3/8 |
|---|---|
| Stud Size | 3/8" |
| Insulation Material | Non-Insulated |
| Maximum Wire Size (AWG) | 4 |
| Wire Strip Length (In.) | 1/2 |
| Wire Strip Length (mm) | 12.7 |
| Base Material | Copper |
| Finish/Coating | Tin-Plated |
| Barrel Type | Seamless Tubular |
| Barrel Length (In.) | 0.48 |
| Barrel Length (mm) | 12.2 |
| Sub Brand | Pan-Lug™ |
| Overall Length (In.) | 1.5 |
| Overall Length (mm) | 38.1 |
| Overall Width (In.) | 0.62 |
| Overall Width (mm) | 15.748 |
| Tongue Thickness (In.) | 0.07 |
| Tongue Thickness (mm) | 1.8 |
| Tongue Width (In.) | 0.62 |
| Tongue Width (mm) | 15.7 |
| Packaging Type | Loose Piece |
| Type | Copper - Other |
| UNSPSC Code | 39121400 |
Panduit - S4-38R-T - Package Includes
| UPC | 07498360027 |
|---|---|
| Std. Pkg. Qty. | 200 |
| Std. Pkg. Volume (cf) | 0.0492 |
| Std. Ctn. Qty. | 0 |
| Std. Ctn. Volume (cf) | 0.0000 |
Panduit - S4-38R-T - Videos
| Panduit S4-38R-T Video | Click to View |
|---|
