Panduit S4-56R-T | Pan-Lug Loose Piece Ring Terminal
Description
Description

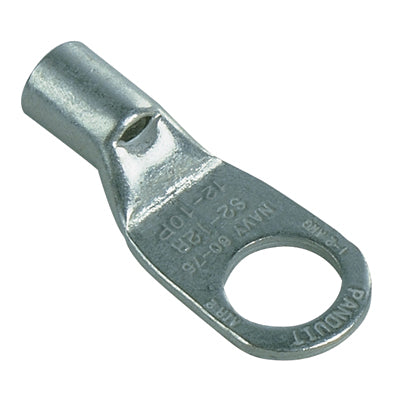

Create a secure, high-performing connection with our tubular ring terminal, easy-to-insert design, visible connection quality, and a strong double-thick tongue.
Tubular Ring Terminal, 4 AWG, 5/16 stud size, non-insulated, bulk package.
Panduit Pan-Lug Ring Terminal, 1-Hole Loose Piece Non-Insulated Tubular, Series: S Series, Stranded Conductor, 4 AWG Conductor, 5/16 in Stud, 1.4 in Length, Beveled/Seamless Tubular Barrel, 0.28 in ID x 0.38 in OD x 0.48 in L Barrel, Straight Tongue, 0.55 in W x 0.09 in THK Tongue, 35 kVAC, 1/2 in L Wire Strip, 1/2 in Mounting Hole Size, 90 deg C, Copper, TiN Coated, Metallic
Panduit - S4-56R-T - Features
- Seamless tubular barrel provides a consistent high performance quality crimp
- Round double thick tongue for reliable power applications
- Barrel of terminal internally beveled to provide quick and easy wire insertion
- Inspection window allows visual inspection of proper wire insertion
- Consult cable manufacturer for voltage stress relief instructions with applications greater than 2000 V
- Seamless tubular barrel provides a consistent high performance quality crimp
- Round double thick tongue for reliable power applications
- Barrel of terminal internally beveled to provide quick and easy wire insertion
- Inspection window allows visual inspection of proper wire insertion
- UL and CSA rated up to 2000 V per UL 486A
- Maximum recommended operating temperature 302F (150C)
Specifications
Specifications
Panduit - S4-56R-T - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | S4-56R-T |
| Type | Copper - Other |
| UNSPSC Code | 39121400 |
| Stud Hole Size (In.) | 5/16 |
| Stud Size | 5/16" |
| Insulation Material | Non-Insulated |
| Maximum Wire Size (AWG) | 4 |
| Wire Strip Length (In.) | 1/2 |
| Wire Strip Length (mm) | 12.7 |
| Base Material | Copper |
| Finish/Coating | Tin-Plated |
| Barrel Type | Seamless Tubular |
| Barrel Length (In.) | 0.48 |
| Barrel Length (mm) | 12.2 |
| Sub Brand | Pan-Lug |
| Overall Length (In.) | 1.4 |
| Overall Length (mm) | 35.6 |
| Overall Width (In.) | 0.55 |
| Overall Width (mm) | 14 |
| Tongue Thickness (In.) | 0.09 |
| Tongue Thickness (mm) | 2.3 |
| Tongue Width (In.) | 0.55 |
| Tongue Width (mm) | 14 |
| Packaging Type | Loose Piece |
| UPC | 07498360026 |
