Brand: Panduit
|
SKU:
227974
Panduit S4X4YL6NM | FiberRunner Solid Wall Channel, 4x4, Yellow
Regular price
$117.48
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit S4X4YL6NM | FiberRunner Solid Wall Channel, 4x4, Yellow
Regular price
$117.48
Unit price
Description
Description

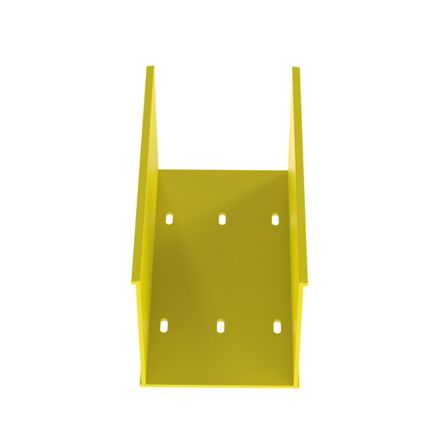

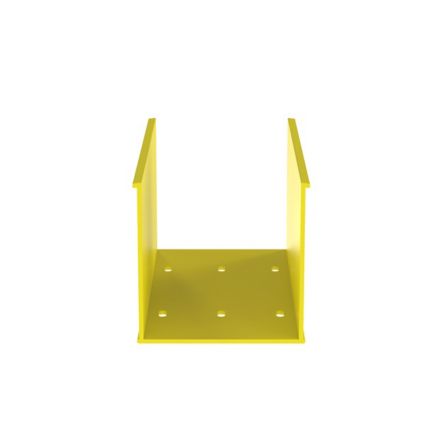

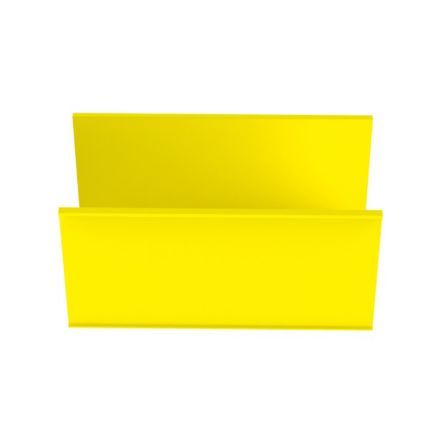

Panduit S4X4YL6NM | FiberRunner Solid Wall Channel, 4x4, Yellow
The FiberRunner Solid Wall Channel is used in cable routing systems to carry the cables throughout the FiberRunner Routing System. The 4 inch x 4 inch solid wall channel is 6 feet (1.8m) in length. The hinged cover is sold separately.
Panduit - S4X4YL6NM - Features
- Channel, covers, fittings and other non-metallic system components made from V-0 flame class rated material
- Snap on non-slip covers
- Compatible with Panduit(TM) FiberRunner(TM) 2x2, 4x4, 6x4 and 12x4 Routing Systems
- For other standard colors replace suffix YL (Yellow) with OR (Orange) or BL (Black)
Specifications
Specifications
Panduit - S4X4YL6NM - Product Categories
- Wire Routing, Management & Protection
- Fiber Routing Channel & Covers
Panduit - S4X4YL6NM - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | S4X4YL6NM |
| Item Description | FiberRunner Solid Wall Channel, 4x4, Yellow |
| Application | (1)The Fiber-Duct 4X4 Routing Systems Is System of Channel, Fittings, and Brackets Designed to Segregate, Route, and Protect Fiber Optic Cable and Copper Cabling.(2) It is Suited for Data Center Applications where Cable is Routed from Distribution Areas |
| Product Type | Channel |
| Channel Material | Rigid PVC |
| Color | Yellow |
| For Use With | C4YL6 |
| Flammability Rating | 94V-0 |
| Material | PVC |
| Overall Height (In.) | 4 |
| Overall Height (mm) | 101.6 |
| Sub Brand | FIBER-DUCT |
| Overall Length (ft.) | 6 |
| Overall Length (m) | 1.8 |
| Overall Width (In.) | 4.2 |
| Overall Width (mm) | 106.7 |
| Standards Met | UL Listed to 2024A,CSA Compliant |
| System Dimensions | 4x4 |
Panduit - S4X4YL6NM - Package Information
| UPC | 07498370268 |
|---|---|
| Standard Package Quantity | 6 |
| Standard Package Volume (cf) | 0.5335 |
| Standard. Ctn. Quantity | 60 |
| Standard. Ctn. Volume (cf) | 5.3349 |
