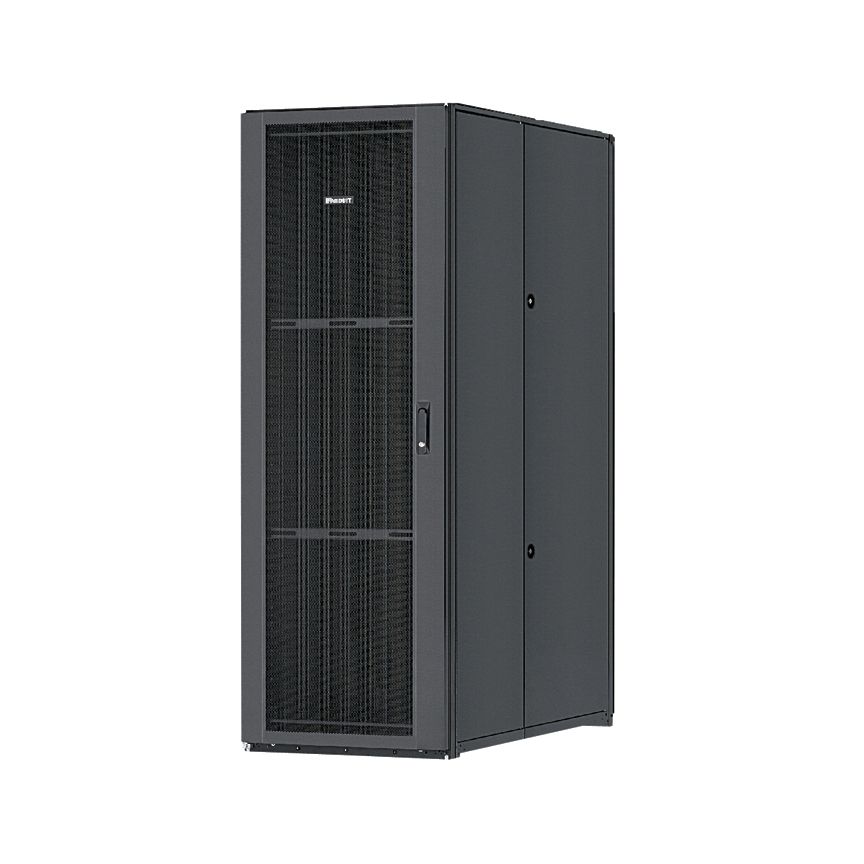

Panduit S7819BU | S-Type Cabinet | UPC - 61305636355
Description
Description
Net-Access S-Type universal cabinets are ideal for network or server application as these cabinets come standard with adjustable front and rear equipment rails to accommodate multiple applications. The top of cabinet includes molded edge protection and snap-in covers and pre-installed in cable entry openings to prevent air leakage. S-Type universal cabinets are manufactured with a welded and assembled steel frame and are available in multiple widths, depths and RU heights.
Panduit Net-Access Universal Cabinet, Type S Standard, 27.48 in W, 43.89 in D, 2 Doors, 48U Rack Unit, Lock: Keyed Quarter Turn Latch, (2) 6-1/2 in Rear Knockout Cable Entry, 2500/3000 lb, E-Rail/Floor Mount, 50 deg C, Steel, Polyester Epoxy Powder Coated, Black
Features + Benefits
- Panduit cabinets, thermal ducting, Cool Boot product, integral blanking panels, blanking foam strips and blanking shade provide a complete thermal and sealing solution by reducing bypass air and mixing of cold air and exhaust air within the cabinet for improved thermal efficiency
- N-type and S-type cabinets can be ganged together for complete streamlined appearance improving data center aesthetics
- Integrated casters to provide easy roll to position, cable management ready rails included help speed deployment, easily adjustable rear rails can be quickly repositioned, heavy duty leveling legs can be accessed from top or bottom for faster deployment
- Cabinets and accessories are integrally bonded without the use of grounding wires to provide a safe and reliable network while reducing installation costs
- Provides bend radius control for each rack unit and can be positioned where required on cabinet posts for cable protection for increased network availability, provides design flexibility, scalability and improved aesthetics for easier moves, adds and changes
- Cabinets are powder coated in a durable, low maintenance polyester epoxy paint
- Front single hinge door and split perforated rear door with 69% open perforation
- Vertically split hinged side panels
- Heavy duty casters and leveling legs
- Adjustable front and fear equipment rails
- Front and rear equipment rails accommodate cable management fingers
- Fully integral bonded without the use of grounding wires equipment rails, door and side panels
- 3000 lb static load rating and 2500 lb rolling load rating
Panduit S7819BU Key Specs
| Sub Brand | Net-Access |
| Product Type | S-Type Cabinet |
| Rear Door Type | Split Perforated |
| Front Door Type | Single Hinge Perforated |
| Material | Steel |
| Color | Black |
| Overall Width (In.) | 27.48 |
| Overall Width (mm) | 698 |
| Overall Depth (In.) | 43.89 |
| Overall Depth (mm) | 1115 |
| Overall Height (In.) | 90.23 |
| Overall Height (mm) | 2292 |
| Number of Rack Units | 48 |
| Casters | Yes |
| Static Load Capacity (kg) | 1360 |
| Static Load Capacity (lb) | 3000 |
| Rolling Load Capacity (kg) | 1133 |
| Rolling Load Capacity (lb) | 2497.83 |
| Finish/Coating | Powder-Coated |
| Standards Met | RoHS Compliant, EIA-310-E, TIA/EIA-942, UL2416 |
| Cooling Architecture | Containment |
Panduit S7819BU Data Sheets
| Installation Documents | Net-Access S-Type Network Cabinets | Download and View |
| Specification Sheets | Net-Access S-Type Universal Cabinets: RKSP175--WW-ENG | Download and View |
| Part Drawings | Net-Access S-Type Universal With Fully Adjustable Front Rails Cabinet | Download and View |
