Brand: Panduit
|
SKU:
10192592

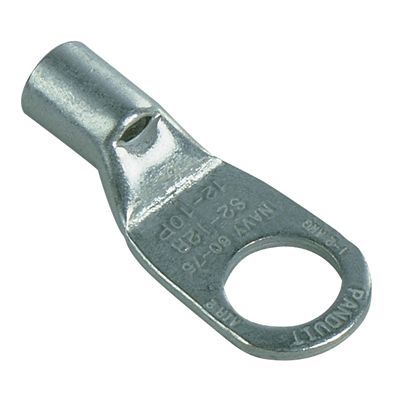

Panduit S8-56R-T | Pan-Lug S8-56R-T Loose Piece Ring Terminal
Regular price
$179.28
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit S8-56R-T | Pan-Lug S8-56R-T Loose Piece Ring Terminal
Regular price
$179.28
Unit price
Description
Description
Panduit S8-56R-T | Pan-Lug S8-56R-T Loose Piece Ring Terminal
Tubular Ring Terminal, 8 AWG, 5/16 stud size, non-insulated, bulk package.
Specifications
Specifications
Panduit - S8-56R-T - Product Categories
- Wire Termination
- Mechanical & Compression Lugs & Splices
Panduit - S8-56R-T - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | S8-56R-T |
| Item Description | Pan-Lug S8-56R-T Loose Piece Ring Terminal |
| Maximum Wire Size (AWG) | 8 AWG |
| Product Type | Loose Piece Ring Terminal |
| Base Material | Copper |
| Stud Hole Size (In.) | 5/16 |
| Tongue Thickness (In.) | 0.05 |
| Tongue Thickness (mm) | 1.3 |
| Tongue Width (In.) | 0.6 |
| Tongue Width (mm) | 15.2 |
| Overall Length (In.) | 1.3 |
| Overall Length (mm) | 33 |
| Overall Width (In.) | 0.6 |
| Overall Width (mm) | 15.2 |
| Barrel Type | Seamless Tubular |
| Barrel Length (In.) | 0.4 |
| Barrel Length (mm) | 10.2 |
| Insulation Material | Non-Insulated |
| Finish/Coating | Tinned |
| Sub Brand | Pan-Lug |
| Wire Strip Length (In.) | 7/16 |
| Wire Strip Length (mm) | 11.1125 |
| Part Features | Seamless tubular barrel provides a consistent high performance quality crimp, Round double thick toungue for reliable power applications, Barrel of terminal internally beveled to provide quick and easy wire insertion, Inspection window allows visual inspection of proper wire insertion. |
Panduit - S8-56R-T - Package Information
| UPC | 07498360003 |
|---|---|
| Std. Pkg. Qty. | 200 |
| Std. Pkg. Volume (cf) | 0.0318 |
| Std. Ctn. Qty. | 0 |
| Std. Ctn. Volume (cf) | 0.0000 |
Panduit - S8-56R-T - Videos
| Video 1 | Click to View |
|---|---|
| Video 2 | Click to View |
