Panduit S8219BU | S-Type Cabinet | UPC - 61305636327
Description
Description

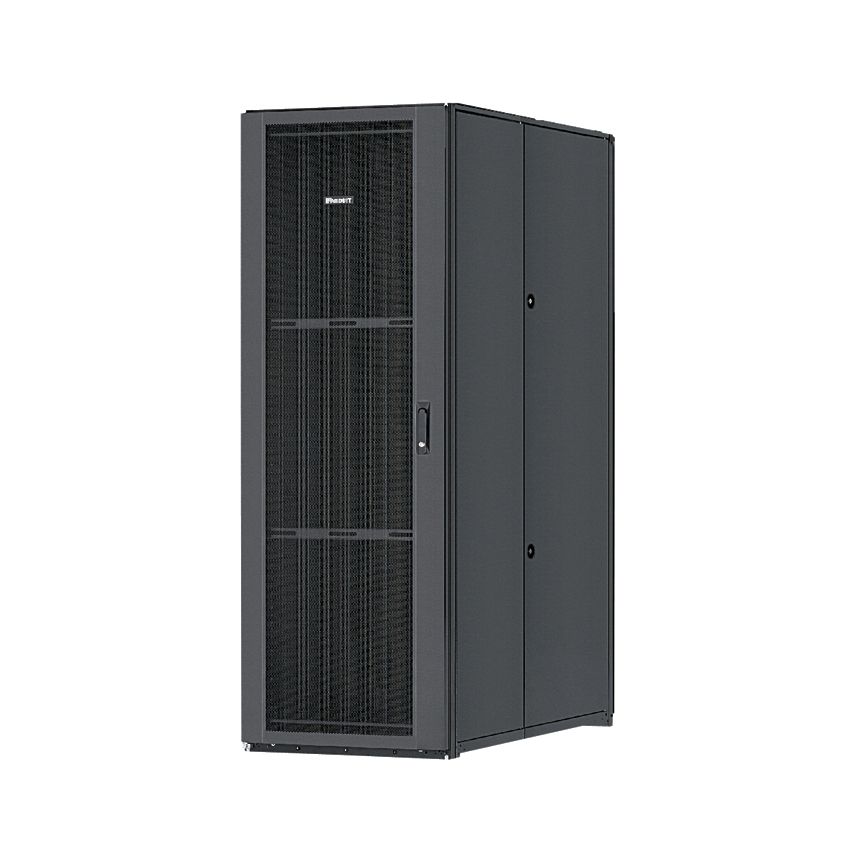

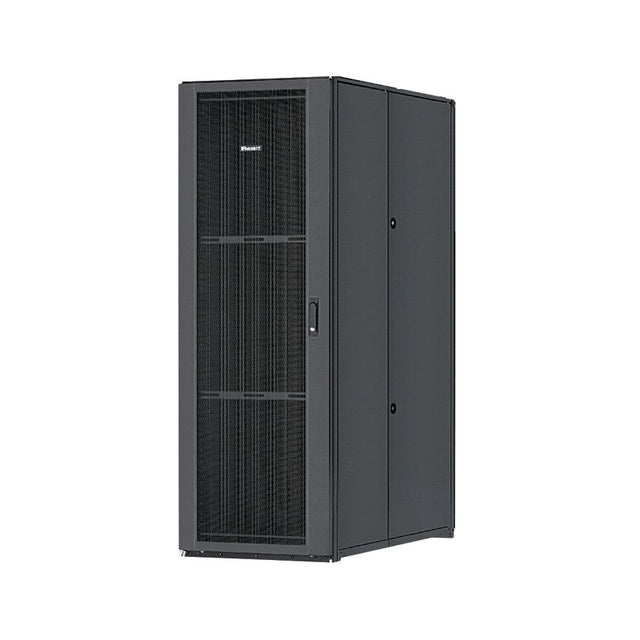

Net-Access S-Type universal cabinets are ideal for network or server application as these cabinets come standard with adjustable front and rear equipment rails to accommodate multiple applications. The top of cabinet includes molded edge protection and snap-in covers and pre-installed in cable entry openings to prevent air leakage. S-Type universal cabinets are manufactured with a welded and assembled steel frame and are available in multiple widths, depths and RU heights.
Panduit Net-Access Universal Cabinet, Type S Standard, 31.41 in W, 43.89 in D, 2 Doors, 42U Rack Unit, Lock: Keyed Quarter Turn Latch, (2) 6-1/2 in Rear Knockout Cable Entry, 2500/3000 lb, E-Rail/Floor Mount, 50 deg C, Steel, Polyester Epoxy Powder Coated, Black
Features + Benefits
- Heavy duty reinforced structure
- Thermal efficiency integral blanking panels and cabinet sealing features reduce bypass air and mixing of cold air and exhaust air within the cabinet for improved thermal efficiency
- Total air sealing Panduit cabinets, thermal ducting, cool boot product, blanking panels, blanking foam strips and blanking shade provide a complete thermal and sealing solution
- Dynamic pallet ramp provides a safe method for unloading the cabinet from the pallet upon arrival at the installation site
- Rapid deployment integrated casters to provide easy roll to position
- Modular cable management fingers
- Bonding cabinets and accessories are single point bonded, providing a safe and reliable network while reducing installation costs
- Cable management ready rails included help speed deployment
- Easily adjustable rear rails can be quickly repositioned, heavy duty leveling legs can be accessed from top or bottom for faster deployment
- Cabinets are powder coated in a durable, low maintenance polyester epoxy paint in black (RAL9005)
- N-type and S-type cabinets can be ganged together for complete streamlined appearance improving data center aesthetics
Panduit S8219BU Key Specs
| Sub Brand | Net-Access |
| Product Type | S-Type Cabinet |
| Rear Door Type | Split Perforated |
| Front Door Type | Single Hinge Perforated |
| Material | Steel |
| Color | Black |
| Overall Width (In.) | 31.41 |
| Overall Width (mm) | 798 |
| Overall Depth (In.) | 43.89 |
| Overall Depth (mm) | 1115 |
| Overall Height (In.) | 79.76 |
| Overall Height (mm) | 2026 |
| Number of Rack Units | 42 |
| Casters | Yes |
| Static Load Capacity (kg) | 1360 |
| Static Load Capacity (lb) | 3000 |
| Rolling Load Capacity (kg) | 1133 |
| Rolling Load Capacity (lb) | 2497.83 |
| Finish/Coating | Powder-Coated |
| Standards Met | RoHS Compliant, EIA-310-E, TIA/EIA-942, UL2416 |
| Cooling Architecture | Containment |
Panduit S8219BU Data Sheets
| Installation Documents | Net-Access S-Type Network Cabinets | Download and View |
| Specification Sheets | Net-Access S-Type Universal Cabinets: RKSP175--WW-ENG | Download and View |
| Part Drawings | Net-Access S-Type Universal With Fully Adjustable Front Rails Cabinet | Download and View |
