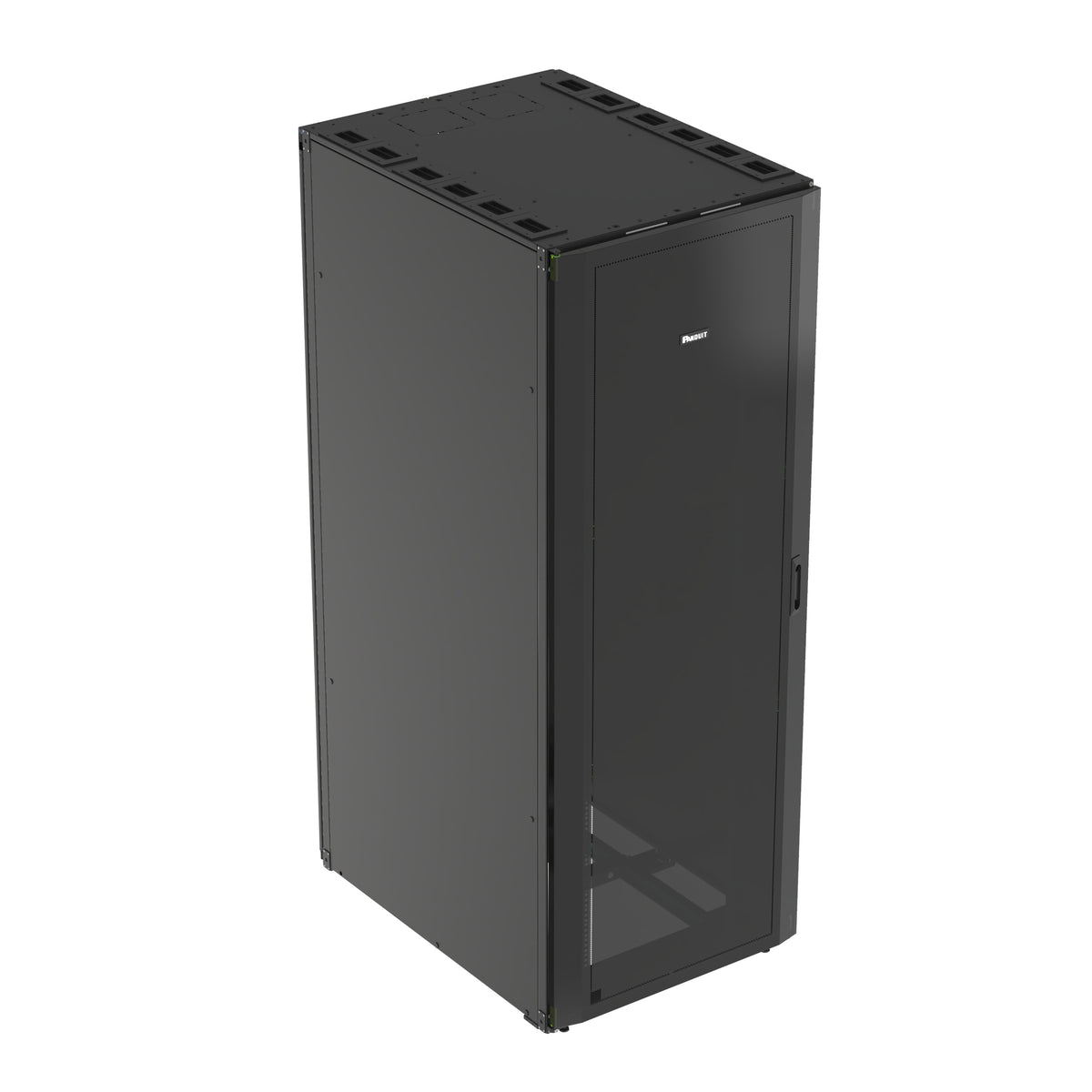

Panduit S8512BU | S-Type Cabinet | UPC - 61305636346
Description
Description
Net-Access S-Type universal cabinets are ideal for network or server application as these cabinets come standard with adjustable front and rear equipment rails to accommodate multiple applications. The top of cabinet includes molded edge protection and snap-in covers and pre-installed in cable entry openings to prevent air leakage. S-Type universal cabinets are manufactured with a welded and assembled steel frame and are available in multiple widths, depths and RU heights.
Panduit Net-Access Universal Cabinet, Type S Standard, 31.41 in W, 43.89 in D, 2 Doors, 45U Rack Unit, Lock: Keyed Quarter Turn Latch, (2) 6-1/2 in Rear Knockout Cable Entry, 2500/3000 lb, E-Rail/Floor Mount, 50 deg C, Steel, Polyester Epoxy Powder Coated, Black
Features + Benefits
- Integral blanking panels and cabinet sealing features reduce bypass air and mixing of cold air and exhaust air within the cabinet for improved thermal efficiency
- Panduit cabinets, thermal ducting, Cool Boot product, blanking panels, blanking foam strips and blanking shade provide a complete thermal and sealing solution
- Type-S cabinets can be ganged together for complete streamlined appearance improving data center aesthetics
- Integrated casters to provide easy roll to position, cable management ready rails included help speed deployment
- Easily adjustable rear rails can be quickly repositioned, heavy duty leveling legs can be accessed from top or bottom for faster deployment
- Cabinets and accessories are single point bonded, providing a safe and reliable network while reducing installation costs
- Provides bend radius control for each rack unit and can be positioned where required on cabinet posts for cable protection for increased network availability, provides design flexibility, scalability and improved aesthetics for easier moves, adds and changes
- Multiple cabinet configurations for hot aisle/cold aisle, cold aisle containment or vertical exhaust ducting deployments
- Cabinets are powder coated in a durable, low maintenance polyester epoxy paint
Panduit S8512BU Key Specs
| Sub Brand | Net-Access |
| Product Type | S-Type Cabinet |
| Rear Door Type | Split Perforated |
| Front Door Type | Single Hinge Perforated |
| Material | Steel |
| Color | Black |
| Overall Width (In.) | 31.4 |
| Overall Width (mm) | 798 |
| Overall Depth (In.) | 43.89 |
| Overall Depth (mm) | 1115 |
| Overall Height (In.) | 85 |
| Overall Height (mm) | 2159 |
| Number of Rack Units | 45 |
| Casters | Yes |
| Static Load Capacity (kg) | 1360 |
| Static Load Capacity (lb) | 3000 |
| Rolling Load Capacity (kg) | 1133 |
| Rolling Load Capacity (lb) | 2500 |
| Finish/Coating | Powder-Coated |
| Standards Met | RoHS Compliant, EIA-310-E, TIA/EIA-942, UL2416 |
| NEMA Rating | 1 |
| Cooling Architecture | Hot Aisle / Cold Aisle |
Panduit S8512BU Data Sheets
| Installation Documents | Net-Access S-Type Network Cabinets | Download and View |
| Specification Sheets | Net-Access S-Type Universal Cabinets: RKSP175--WW-ENG | Download and View |
| Part Drawings | Net-Access S-Type Universal With Fully Adjustable Front Rails Cabinet | Download and View |
