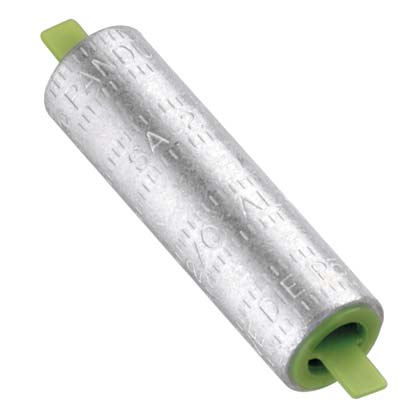

Panduit SA500-2 | Pan-Lug Aluminum Compression Connectors - Butt Sp...
Description
Description
For fast and reliable repairs or wire extensions in electrical projects, our butt splice simplifies wire connections.
Aluminum splice, type SA.
Panduit Pan-Term splices are designed and manufactured for fast assembly and long reliable performance. as the demand for splices increases, it becomes essential to provide a complete system for termination products. we provide an extensive line of tooling designed specifically to provide optimum performance when used as a system for terminating.
Panduit Compression Butt Splice, Type SA, Aluminum/Copper Conductor, 500 kcmil Conductor, 3.87 in Length, 0.84 in ID x 1.32 in OD Barrel, 35 kV, Specifications: 1-7/8 in L Wire Strip, 90 deg C, Aluminum, Pink, Tin Plated
Panduit - SA500-2 - Features
- Manufactured from high conductivity thick wall wrought aluminum
- Factory pre-filled with joint compound and sealed with easy pull out end plug to inhibit corrosion
- Color coded end plugs and Panduit and specified competitor die index numbers marked on barrel for proper crimp die selection
- Tin plated to inhibit corrosion
- Internal solid center prevents over insertion of conductor
- Manufactured from high conductivity thick wall wrought aluminum
- Factory pre-filled with joint compound and sealed with easy pull-out end plug to inhibit corrosion
- Color-coded end plugs and PANDUIT and specified competitor die index numbers marked on barrel for proper crimp die selection
- Tin-plated to inhibit corrosion
- Internal solid center prevents over-insertion of conductor
- UL Listed and CSA Certified to 35 KV and temperature rated to 90C when crimped with PANDUIT and specified competitor crimping tools and dies
Specifications
Specifications
Panduit - SA500-2 - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | SA500-2 |
| Gauge | 500Kcmil (Aka Mcm) |
| Inspection Hole | No |
| Lug Material | Aluminum |
| UNSPSC Code | 39121400 |
| Product Type | Compression Splice |
| Base Material | Aluminum |
| Barrel Type | Standard |
| Finish/Coating | Tin-Plated |
| Copper Code Conductor Size (kcmil) | 500 |
| Aluminum Conductor Size (kcmil) | 500 |
| Insulation Material | Non-Insulated |
| Overall Length (In.) | 3.87 |
| Overall Length (mm) | 98.3 |
| Standards Met | UL Listed and CSA Certified to 35 kV and temperature rated to 90°C |
| UL Temperature Rating (°C) | 90 |
| CSA Temperature Rating (°C) | 90 |
| Maximum Voltage (kV) | 35 |
| Color Code | Pink |
| Burndy Die Index Number | 300 |
| Panduit Die Index Number | P99 |
| T & B Die Index Number | 99 |
| Wire Strip Length (In.) | 1-7/8 |
| Wire Strip Length (mm) | 47.6 |
| Sub Brand | Pan-Lug |
| UPC | 07498391265 |
