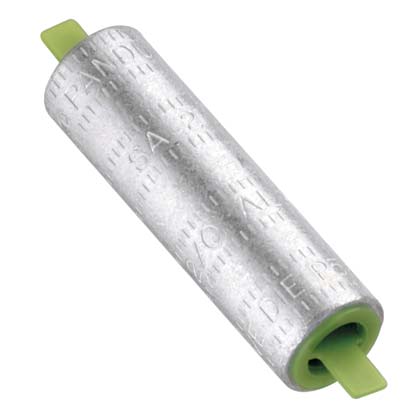

Panduit SA6-X | Tin-Plated Aluminum Compression Connectors - Butt Splices | UPC - 07498391205
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit SA6-X | Tin-Plated Aluminum Compression Connectors - Butt S...
Description
Description
Panduit Pan-Term splices are designed and manufactured for fast assembly and long reliable performance. as the demand for splices increases, it becomes essential to provide a complete system for termination products. we provide an extensive line of tooling designed specifically to provide optimum performance when used as a system for terminating.
Panduit Compression Butt Splice, Type SA, Aluminum/Copper Conductor, 6 AWG Conductor, 1.62 in Length, 0.2 in ID x 0.34 in OD Barrel, 35 kV, Specifications: 3/4 in L Wire Strip, 90 deg C, Aluminum, Gray, Tin Plated
Features + Benefits
- Manufactured from high conductivity thick wall wrought aluminum
- Factory pre-filled with joint compound and sealed with easy pull out end plug to inhibit corrosion
- Color coded end plugs and Panduit and specified competitor die index numbers marked on barrel for proper crimp die selection
- Tin plated to inhibit corrosion
- Internal solid center prevents over insertion of conductor
Panduit SA6-X | Tin-Plated Aluminum Compression Connectors - Butt Splices | UPC - 07498391205 Key Specs
| Product Type | Tin-Plated Aluminum Compression Connectors - Butt Splices |
| Sub Brand | Pan-Lug |
| Copper Conductor Size (AWG) | 26.25 |
| Copper Conductor Size (kcmil) | 26.25 |
| Color Code | Gray |
| Burndy Die Index Number | 346 |
| Panduit Die Index Number | P29 |
| Overall Length (In.) | 1.62 |
| Overall Length (mm) | 41.1 |
| Wire Strip Length (mm) | 19.1 |
Panduit SA6-X | Tin-Plated Aluminum Compression Connectors - Butt Splices | UPC - 07498391205 Data Sheets
| Catalog Cut Sheets | SA6-X Product Page | Download and View |
| Part Drawings | SA Series Aluminum Splices | Download and View |
| Selection Guides | Power Connector Tool and Die Selection Guides | Download and View |
Panduit SA6-X | Tin-Plated Aluminum Compression Connectors - Butt Splices | UPC - 07498391205 Environmental Information
| Panduit's RoHS Statement | Download and View |
