Panduit SA750-1 | Tin-Plated Aluminum Compression Connectors - Butt...
Description
Description
Panduit Pan-Term splices are designed and manufactured for fast assembly and long reliable performance. as the demand for splices increases, it becomes essential to provide a complete system for termination products. we provide an extensive line of tooling designed specifically to provide optimum performance when used as a system for terminating.

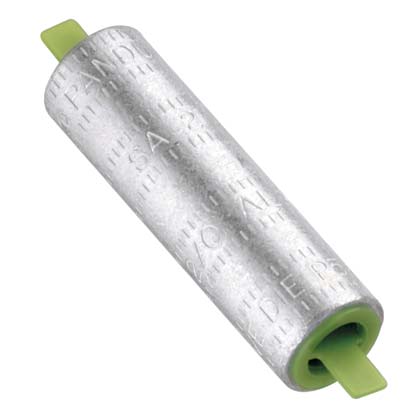

Panduit Compression Butt Splice, Type SA, Aluminum/Copper Conductor, 750 kcmil Conductor, 4.62 in Length, 1.03 in ID x 1.6 in OD Barrel, 35 kV, Specifications: 2-1/4 in L Wire Strip, 90 deg C, Aluminum, Red, Tin Plated
Features + Benefits
- Manufactured from high conductivity thick wall wrought aluminum
- Factory pre-filled with joint compound and sealed with easy pull out end plug to inhibit corrosion
- Color coded end plugs and Panduit and specified competitor die index numbers marked on barrel for proper crimp die selection
- Tin plated to inhibit corrosion
- Internal solid center prevents over insertion of conductor
Panduit SA750-1 | Tin-Plated Aluminum Compression Connectors - Butt Splices | UPC - 07498391275 Key Specs
| Product Type | Tin-Plated Aluminum Compression Connectors - Butt Splices |
| Sub Brand | Pan-Lug |
| Copper Conductor Size (AWG) | 9/0 |
| Copper Conductor Size (kcmil) | 674.6 |
| Color Code | Red |
| Burndy Die Index Number | 301 |
| Panduit Die Index Number | P125 |
| Overall Length (In.) | 4.62 |
| Overall Length (mm) | 117.3 |
| Wire Strip Length (mm) | 57.2 |
Panduit SA750-1 | Tin-Plated Aluminum Compression Connectors - Butt Splices | UPC - 07498391275 Data Sheets
| Catalog Cut Sheets | SA6-X Product Page | Download and View |
| Part Drawings | SA Series Aluminum Splices | Download and View |
| Selection Guides | Power Connector Tool and Die Selection Guides | Download and View |
Panduit SA750-1 | Tin-Plated Aluminum Compression Connectors - Butt Splices | UPC - 07498391275 Environmental Information
| Panduit's RoHS Statement | Download and View |
