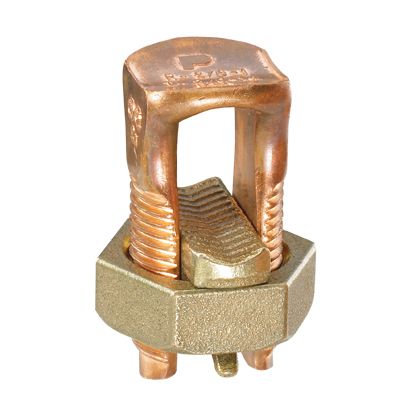

Panduit SBC2/0-Q | Pan-Lug Mech Con-Split Bolt, 2/0, Copper, PK25
Description
Description
Durable, corrosion-resistant design, our copper split bolt offers a long-lasting solution for a wider range of wires and ideal for electrical panels, control cabinets, and construction applications.
Copper split bolt connector, type SBC.
Panduit offers a broad variety of split bolt connectors suitable for a wide range of electrical terminations using code conductor. Designed to be reusable and installed without special tooling.
Panduit Pan-Lug Split Bolt Connector, Mechanical, Series: SBC, Stranded Conductor, 2 to 2/0 AWG Conductor, 600 VAC, 1.05 in Hex Nut, 385 in-lb Tightening Torque, 14 AWG Stranded Minimum Tap with One Maximum Run, 90 deg C, Copper, 0.42 in ID x 1.72 in L x 0.79 in W
Panduit - SBC2/0-Q - Features
- Made from high strength copper alloy to resist corrosion and provide premium electrical and mechanical performance
- Wide wire range taking capability minimizes inventory requirements
- Nut hex provides correct fit with socket, box or open end wrenches resulting in proper torquing of electrical connection
- Pressure bar provides secure connection on a full range of conductor combinations used with each connector assuring premium wire pullout strength
- Dual rated for use with aluminum to aluminum, aluminum to copper and copper to copper conductor combinations
- Tin plated to inhibit corrosion and oxidation
- True hex design for body and nut hex provides correct fit with socket, box or open end wrenches resulting in proper torquing of electrical connection
- Free floating pressure bar separates conductors of dissimilar materials for secure connection on a full range of conductor combinations
- Copper to copper connection
- Made from high strength copper alloy to resist corrosion and provide premium electrical and mechanical performance
- Offered with extra long body to allow connection of one or two taps to a single run conductor
- Wide wire range-taking capability minimizes inventory requirements
- Nut hex provides correct fit with socket, box, or open end wrenches resulting in proper torquing of electrical connection
- Pressure bar provides secure connection on a full range of conductor combinations used with each connector assuring premium wire pull-out strength
- UL Listed and CSA Certified for use up to 600 V and temperature rated 90C
Specifications
Specifications
Panduit - SBC2/0-Q - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | SBC2/0-Q |
| Component | Hardware |
| Connection Type | Compression |
| UNSPSC Code | 39121400 |
| Product Type | Mechanical Split Bolt Connector |
| Connection Type | Copper to Copper |
| Base Material | Copper |
| Maximum Copper Conductor Size (AWG STR) | 2/0 |
| Minimum Copper Conductor Size (AWG SOL) | 2 |
| Standards Met | UL listed to 467 and 486 and CSA certified for use up to 600V & Temperature Rated to 90°C |
| UL Temperature Rating (°C) | 90 |
| Maximum Voltage (V) | 600 |
| Overall Height (In.) | 1.72 |
| Overall Height (mm) | 43.68 |
| Sub Brand | Pan-Lug |
| Part Features | high strength copper for corrosion resistance,extra long body,range taking,true hex design for correct fit |
| UPC | 07498362726 |
