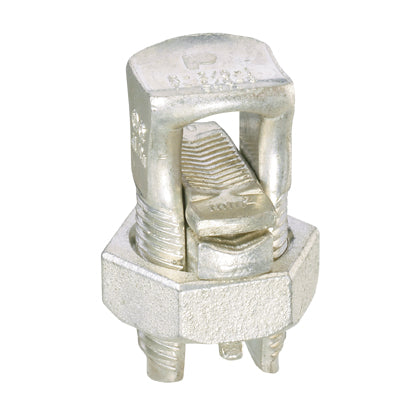

Panduit SBCT2/0-Q | Pan-Lug™ Tin-Plated Copper Split Bolt
Description
Description
Panduit offers a broad variety of split bolt connectors suitable for a wide range of electrical terminations using code conductor. Designed to be reusable and installed without special tooling, Pan-Lug mechanical connectors provide quality performance.
Panduit Pan-Lug Split Bolt Connector, Mechanical, Series: SBCT, Stranded Conductor, 2 to 2/0 AWG Conductor, 600 VAC, Specifications: 1.05 in Hex Nut, 385 in-lb Tightening Torque, 8 AWG Stranded Minimum Tap With One Maximum Run, 90 deg C, Copper Alloy, Tin Plated, 1.71 in L Dimensions
Easily connect copper and aluminum wires securely with our tin-plated copper split bolt, ideal for mixed-metal applications, used for industrial control panels.
The SBCT2/0-Q Mechanical Lug Split Bolt Copper is made from high strength copper alloy to provide premium electrical and mechanical performance for wide wire range-taking capability that helps minimize inventory requirements. The internal pressure bar provides a secure connection on a full range of conductor combinations used with each Lug assuring premium wire pull-out strength.
Panduit - SBCT2/0-Q - Features
- Harsh environment padlocks are created with a solid brass body with a chrome finish and stainless steel shackle for use in severe weather and environmental conditions
- Flexible shackle padlocks allow movement of the lock body in order to close the panel door
- Made from high strength copper alloy to provide premium electrical and mechanical performance
- Tin plated to inhibit corrosion and oxidation
- Offered with dual rating for use with aluminum or copper conductors
- Wide wire range taking capability minimizes inventory requirements
- Nut hex provides correct fit with socket, box or open end wrenches resulting in proper torquing of electrical connection
- Free floating pressure bar separates conductors of dissimilar materials for secure connection on a full range of conductor combinations
- Copper to aluminum connection
Specifications
Specifications
Panduit - SBCT2/0-Q - Specifications
| UNSPSC Code | 31160000 |
|---|---|
| Technical Information | UL listed to 467 and 486 and CSA certified for use up to 600V & Temperature Rated to 90C |
| Product Type | Mechanical Split Bolt Connector |
| Connection Type | Copper to Aluminum |
| Base Material | Copper |
| Maximum Aluminum Conductor Size (AWG STR) | 2/0 |
| Maximum Copper Conductor Size (AWG STR) | 2/0 |
| Minimum Copper Conductor Size (AWG SOL) | 2 |
| Standards Met | UL listed to 467 and 486 and CSA certified for use up to 600V & Temperature Rated to 90°C |
| UL Temperature Rating (°C) | 90 |
| Maximum Voltage (V) | 600 |
| Finish/Coating | Tin-Plated |
| Overall Height (In.) | 1.72 |
| Overall Height (mm) | 43.7 |
| Sub Brand | Pan-Lug™ |
| Part Features | high strength copper for corrosion resistance,tin plated,range taking,dual rated for copper and alum,hex design |
| UPC | 07498370772 |
Panduit - SBCT2/0-Q - Package Information
| UPC | 07498370772 |
|---|---|
| Standard Packaging Quantity | 25 |
| Standard Packaging Volume (cf) | 0.0530 |
| Standard Ctn. Quantity | 0 |
| Standard Ctn. Volume (cf) | 0.0000 |
